Constants A block with mass mA 15.0 kg on a smooth horizontal surface is connected by...
A block with mass mA = 15.0 kg on a smooth horizontal surface is connected by...

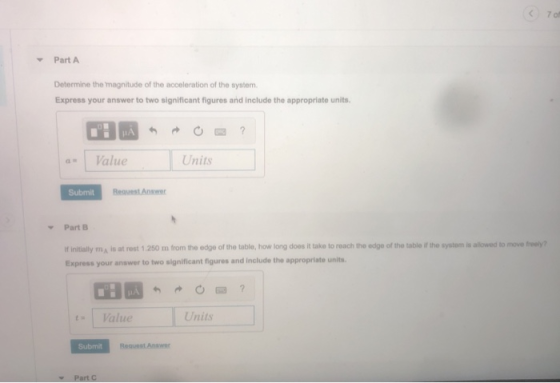

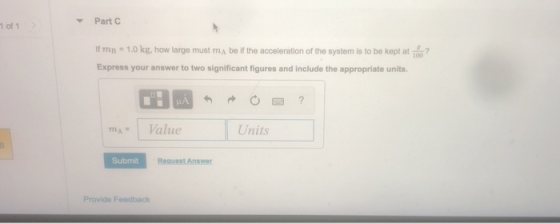

A block with mass mA = 15.0 kg on a smooth horizontal surface is connected by a thin cord that passes over a pulley to a second block with mass mB = 5.5 kg which hangs vertically. Part A: Determine the magnitude of the acceleration of the system. Part B: If initially mA is at rest 1.250 m from the edge of the table, how long does it take to reach the edge of the table if the system is...
4. The figure(Figure 1) shows a block (mass mi) on a rough horizontal surface, connected by...
4. The figure(Figure 1) shows a block (mass mi) on a rough horizontal surface, connected by a thin cord that passes over a pulley to a second block (my), which hangs vertically If ma is 30Kg and mois 40kg, in case the kinetic friction Coefficient is 0.25 what is the acceleration. Use Newton's 2nd Law to find the formula for acceleration first. thanks MA MB A. Write the appropriate Formulas B. Plug in the given data with their units C....
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected to a mass m2 = 17.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m1 and the horizontal surface is 0.25. (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? ____ m/s2 (b) Determine the magnitude of...
A block of mass m1 = 36 kg on a horizontal surface is connected to a...
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
A block of mass m2 = 38 kg on a horizontal surface is connected to a...
A block of mass m2 = 38 kg on a horizontal surface is connected to a mass m2 = 20.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m, and the horizontal surface is 0.24. m (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? 3.39 Did you draw a free-body...
A block of mass m1 = 39 kg on a horizontalsurface is connected to a...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
Two masses, mA = 34.0 kg and mB = 40.0 kg , are connected by a...
Two masses, mA = 34.0 kg and mB = 40.0 kg , are connected by a
rope that hangs over a pulley (as in the figure (Figure 1)). The
center of the pulley is hollowed out so that you may assume all the
mass of the pulley is in the rim. The radius of the pulley is 0.381
m and the mass of the pulley is 3.10 kg . Initially mA is on the
ground and mB rests 2.50 m...
A mass m2 = 15.0 kg is connected by a light cord to a mass m1...
A mass m2 = 15.0 kg is connected by a light cord to a mass m1 = 15.0 kg, which slides on a smooth horizontal surface. The pulley, of mass M = 1.00 kg, rotates about a frictionless axle and has a radius R = 0.200 m and a moment of inertia I = 0.0900 kg-m2 . The cord does not slip on the pulley. a) What is the magnitude of the acceleration of m1? b) What is the tension...
Block A in the figure has mass mA = 4.20 kg, and block B has mass...
Block A in the figure has mass mA = 4.20 kg, and block B has mass mB = 2.40 kg. The coefficient of kinetic friction between block B and the horizontal plane is μk = 0.520. The inclined plane is frictionless and at angle θ = 34.0°. The pulley serves only to change the direction of the cord connecting the blocks. The cord has negligible mass. Find (a) the tension in the cord and (b) the magnitude of the acceleration...
An Atwood machine consists of two masses, mA= 63 kg and mB = 71 kg ,...
An Atwood machine consists of two masses, mA= 63 kg and mB = 71 kg , connected by a massless inelastic cord that passes over a pulley free to rotate (Figure 1). The pulley is a solid cylinder of radius R = 0.40 mm and mass 5.0 kg. [Hint: The tensions FTA and FTB are not equal.] Acceleration of each mass is 0.57 m/s2 What % error would be made if the moment of inertia of the pulley is ignored?...
4. The figure(Figure 1) shows a block (mass mi) on a rough horizontal surface, connected by a thin cord that passes over a pulley to a second block (my), which hangs vertically If ma is 30Kg and mois 40kg, in case the kinetic friction Coefficient is 0.25 what is the acceleration. Use Newton's 2nd Law to find the formula for acceleration first. thanks MA MB A. Write the appropriate Formulas B. Plug in the given data with their units C....
A block of mass m1 = 36 kg on a horizontal surface is connected
to a mass m2 = 23.0 kg that hangs vertically as shown in
the figure below. The two blocks are connected by a string of
negligible mass passing over a frictionless pulley. The coefficient
of kinetic friction between m1 and the
horizontal surface is 0.30.
(Assume gravity acts toward the +ydirection and the
+x-axis is parallel to the surface and to the
right.)
(a) What is...
A block of mass m2 = 38 kg on a horizontal surface is connected to a mass m2 = 20.1 kg that hangs vertically as shown in the figure below. The two blocks are connected by a string of negligible mass passing over a frictionless pulley. The coefficient of kinetic friction between m, and the horizontal surface is 0.24. m (a) What is the magnitude of the acceleration (in m/s2) of the hanging mass? 3.39 Did you draw a free-body...
A block of mass m1 = 39 kg on a horizontal
surface is connected to a mass m2 = 22.5 kg
that hangs vertically as shown in the figure below. The two blocks
are connected by a string of negligible mass passing over a
frictionless pulley. The coefficient of kinetic friction betweenm1 and the horizontal surface is 0.23.A) What is the magnitude of the acceleration (in
m/s2) of the hanging mass?B) Determine the magnitude of the tension (in N) in...
Two masses, mA = 34.0 kg and mB = 40.0 kg , are connected by a
rope that hangs over a pulley (as in the figure (Figure 1)). The
center of the pulley is hollowed out so that you may assume all the
mass of the pulley is in the rim. The radius of the pulley is 0.381
m and the mass of the pulley is 3.10 kg . Initially mA is on the
ground and mB rests 2.50 m...
