solution is required A slit of width a is illuminated by mono-chromatic light of wavelength 650...

Question

Question

solution is required

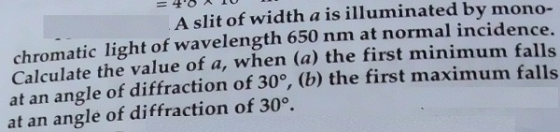

A slit of width a is illuminated by mono-chromatic

science physics

Answer 1

Answer #1

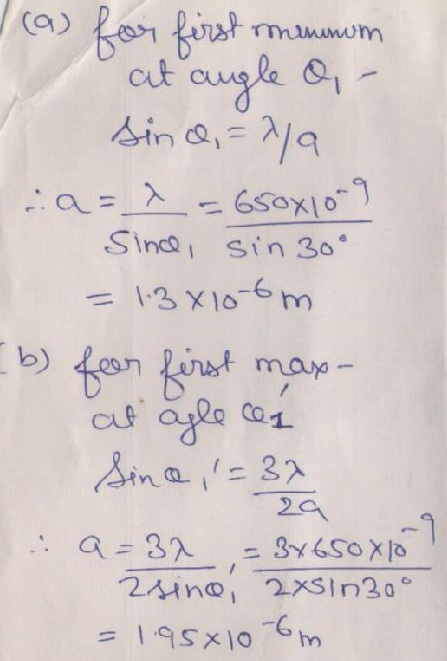

media%2F75f%2F75f1b96d-8335-4b4d-9ff8-9e

Answer 2

Answer #2

(a) asin(theta)=lambda, then a = 650/sin(30) = 1300 nm

(b) asin(theta) = 3lambda/2, then a = 1.5*650/sin(30) = 1950 nm

Answer 3

Answer #3

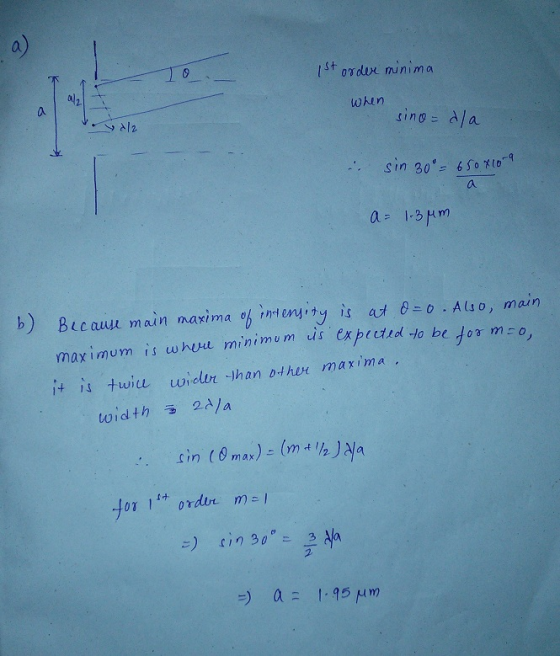

media%2Fc7c%2Fc7cc0b31-0ed4-46e9-b692-52

Answer 4

Answer #4

A=LAMDA/SING THEETA
