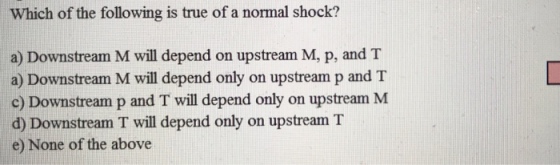

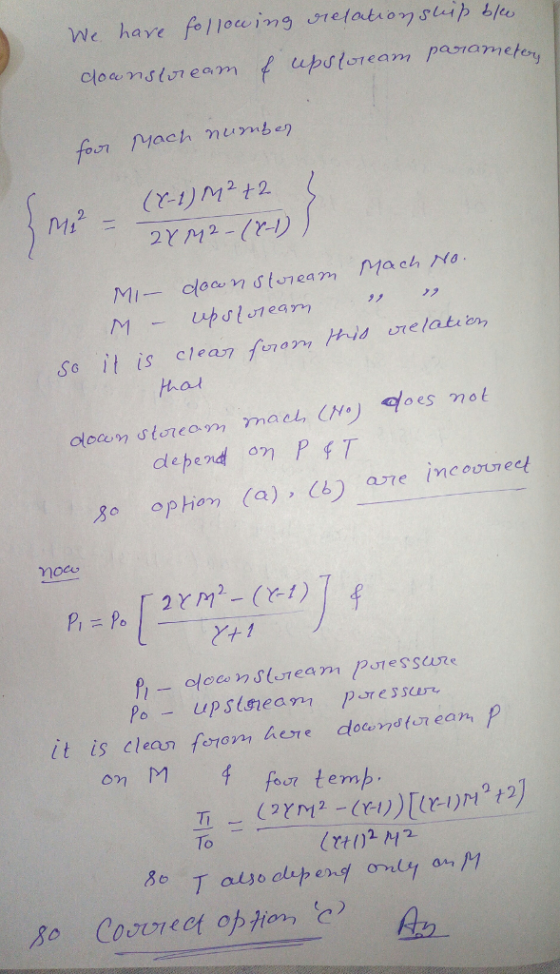

Which of the following is true of a normal shock? a) Downstream M will depend on...
Which one the below is not true for the given figure? the downstream and upstream part...
Which one the below is not true for the given figure? the downstream and upstream part of this object. between the downstream and upstream part of this object and 12. (4p) a. The drag force consist of only the frietional drag for this object. b. The drag force is formed due to the pressure difference between c. The drag force is formed both due to the pressure difference the frictional forces d. It is possible to obtain a lift force...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
2. Air flows through a converging-diverging nozzle. There is a normal shock in the divergmy section...
2. Air flows through a converging-diverging nozzle. There is a normal shock in the divergmy section of the nozzle. The areas at throat, section 1. and section 2 are given in the figure below The sections 1 and 2 are located immediately upstream and downstream of the normal respectively. Therefore, the sections 1 and 2 are assumed to have the same area. There temperature and pressure are given as 300 K and 110 kPa, respectively. The entire isentropic except for...
uo u (b shock u U2 shock Consider a blunt reentry vehicle in the atmosphere moving...
uo u (b shock u U2 shock Consider a blunt reentry vehicle in the atmosphere moving with a velocity uo 3.4 km/s in the upper atmosphere with the effective temperature t-10°C, effective average molecular weight M 24, and effective ration of specific heats y 1.34. The supersonic air flow with respect to the reentry vehicle forms a shock in front. Consider two regions, as shown in the figure, (1) where the air flow velocity is normal to the shock and...
Can you please do this question correctly,thanks!! 183 184Question 2.6 Air is flowing at supersonic speed over a two-dimensional wedge with an upstream static pressure, P, and static temperature, T,...
Can you please do this question correctly,thanks!!
183 184Question 2.6 Air is flowing at supersonic speed over a two-dimensional wedge with an upstream static pressure, P, and static temperature, T, which are defined in the table below 185 186 Value Design Data Unit 187 188 Upstream static pressure (P) 96 kPa 189 Upstream static temperature (T) 265 CK 190 Upstream mach number (M) 2.55 WATCH 191 Wedge half-angle (e) 18 UNITS 192 193 Your answers 194 a) Find the wedge...
A boat takes 6 hours to go downstream and takes 8 hours to go the same...
A boat takes 6 hours to go downstream and takes 8 hours to go the same distance upstream. The speed of the stream is 6 km/hr. Which of the following is true? Indicate all correct options. A. Speed of the boat upstream is 42 km/hr B. Speed of the boat downstream is 48 km/hr C. Distance travelled one way is 288 km D. Distance travelled one way is 28 km E. Speed of the boat in still water is 42...
Which of the following is a non-coding ( not translated into amino-acid(s))? * Downstream trailing sequence,...
Which of the following is a non-coding ( not translated into amino-acid(s))? * Downstream trailing sequence, upstream leader sequence and stop codons STOP codons Upstream leader sequence Downstream trailing sequence
UBAV Air flows through a converging-diverging nozzle diffuser. A normal shock stands in the diverging section...
UBAV Air flows through a converging-diverging nozzle diffuser. A normal shock stands in the diverging section of the nozzle. Assuming isentropie flow, air as an ideal gas, and constant specific heat determine the state at several locations in the system. Solve wsing equations rather than with the tables Note: The Specific heat ratio and gas constant for air are given as k-1 and R 0.287 kJ/kg-K respectively Give Values Inlet Temperature: TI(K)-340 Inlet pressure: P1 (kPa) - 550 Inlet Velocity:...
Which one the below is not true for the given figure? the downstream and upstream part of this object. between the downstream and upstream part of this object and 12. (4p) a. The drag force consist of only the frietional drag for this object. b. The drag force is formed due to the pressure difference between c. The drag force is formed both due to the pressure difference the frictional forces d. It is possible to obtain a lift force...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
Normal Shock Nozzle Exit (4, -6 cm? Back pressure Air from a reservoir at 350 K and 500 kPa, flows through a converging-diverging nozzle. The throat area is 3 cm- and the exit area is 6 cm. A normal shock appears, for which the downstream (region 2) Mach number (M2) is 0.6405. Reservoir Throat (A = 3 cm (a) What is the Mach number (M]) upstream of the shock? 350K, 500 kPa (abs) (b) What is the area where the...
2. Air flows through a converging-diverging nozzle. There is a normal shock in the divergmy section of the nozzle. The areas at throat, section 1. and section 2 are given in the figure below The sections 1 and 2 are located immediately upstream and downstream of the normal respectively. Therefore, the sections 1 and 2 are assumed to have the same area. There temperature and pressure are given as 300 K and 110 kPa, respectively. The entire isentropic except for...
uo u (b shock u U2 shock Consider a blunt reentry vehicle in the atmosphere moving with a velocity uo 3.4 km/s in the upper atmosphere with the effective temperature t-10°C, effective average molecular weight M 24, and effective ration of specific heats y 1.34. The supersonic air flow with respect to the reentry vehicle forms a shock in front. Consider two regions, as shown in the figure, (1) where the air flow velocity is normal to the shock and...
Can you please do this question correctly,thanks!!
183 184Question 2.6 Air is flowing at supersonic speed over a two-dimensional wedge with an upstream static pressure, P, and static temperature, T, which are defined in the table below 185 186 Value Design Data Unit 187 188 Upstream static pressure (P) 96 kPa 189 Upstream static temperature (T) 265 CK 190 Upstream mach number (M) 2.55 WATCH 191 Wedge half-angle (e) 18 UNITS 192 193 Your answers 194 a) Find the wedge...
UBAV Air flows through a converging-diverging nozzle diffuser. A normal shock stands in the diverging section of the nozzle. Assuming isentropie flow, air as an ideal gas, and constant specific heat determine the state at several locations in the system. Solve wsing equations rather than with the tables Note: The Specific heat ratio and gas constant for air are given as k-1 and R 0.287 kJ/kg-K respectively Give Values Inlet Temperature: TI(K)-340 Inlet pressure: P1 (kPa) - 550 Inlet Velocity:...
