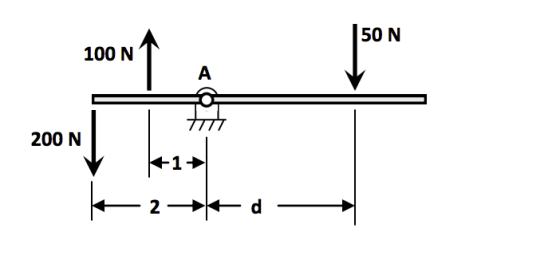

The bar is mounted to a pin joint at A, distances are given in meters.

A) For what distance d is the system balanced about point A?

B) What reaction forces (Ax and Ay) are required at the pin joint for the system to be in equilibrium?

50 N 100N↑ 200 N 1

science Advanced-Physics

Answer 1

Answer #1

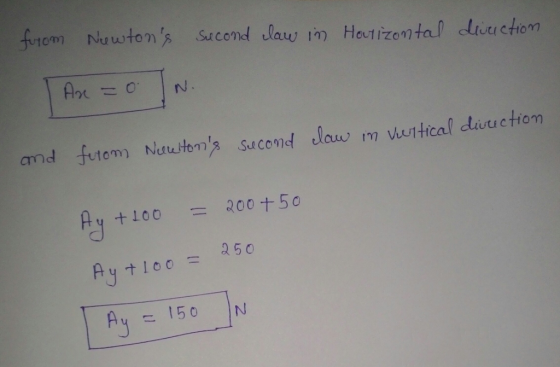

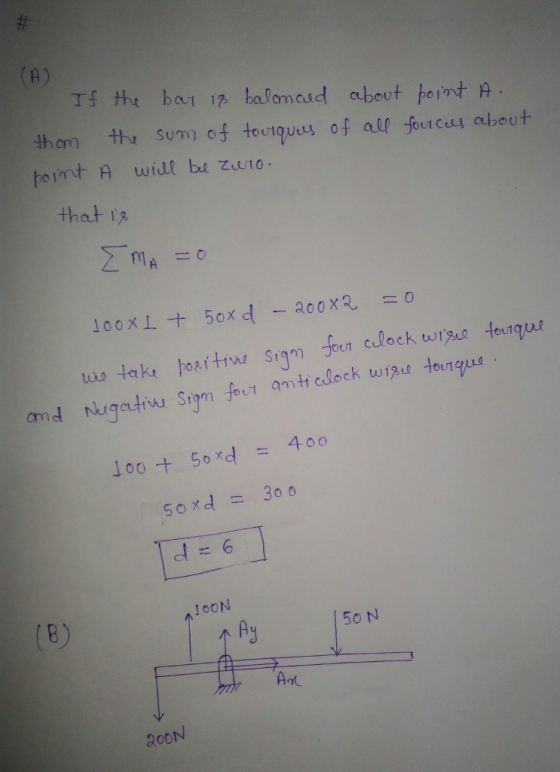

U1 1 CUt poi that 1 Loot 50 xd = 400 Soxd 300 JOON 50 N 800N Ayt Io 250

Answer 2

Similar Homework Help Questions

6.6 Compute the reaction forces at points A and B for the given structure. Consider the...

6.6 Compute the reaction forces at points A and B for the given structure. Consider the pin at A to be free to rotate. (Ans. Ax 2,000 N, Ay 2,000 N, B 2,000 N) ITn 2,000 N IT
The structure below is supported by a pin at A and a roller at E Determine the force in each memb...

The structure below is supported by a pin at A and a roller at E Determine the force in each member of the truss using the Method of Joints H meters 2 FE m AH m GF m HG m Joint Loadings, kN ent length, m Height, m HG GF FE 1.5 2 Draw FBD of truss system to determine reaction forces Assume all forces in members are tensile. If answer is negative, force is compressive. s in x direction...
A block hangs from the end of bar AB that is 7.50 meters long and connected...

A block hangs from the end of bar AB that is 7.50 meters long and connected to the wall in the zz plane. The bar is supported at end A by a ball joint such that it carries only a compressive force along its axis. The bar is supported in equilibrium at end B by cables BD and BC that connect to the zz plane at points C and D respectively with coordinates given in the figure. The z components...

1. A simple truss structure is given in iure I below, joint A is commected to...

1. A simple truss structure is given in iure I below, joint A is commected to simple pin support and Joint G is resting on roller support. Knowing that external horizontal force of 100kN acts on joint B, and vertical forces of 150KN and 50kN are acting on joint D and respectively. Determine; (a) The reaction forces at supports A and B. (3 marks) (b) Forces carmed by members AB, AD, BC, BD, CD and CE, and indicate if the...
5) Two rigid members (AE and ABCD) are connected by a pin at A. CK is another rigid bar supported...

5) Two rigid members (AE and ABCD) are connected by a pin at A. CK is another rigid bar supported by a fixed-end at K. The contact at C is frictionless and D is and the tension on the cable AH is 52 kN, a roller. If the system is in equilibrium a) draw free body diagrams of all rigid members (AE, ABCD and CK), b) determine P (kN) w (kN/m), all reaction forces (or force components) at A, C,...
use counterclockwise as positive please!! Problem 2: A 2D general force system acts on the frame,...

use counterclockwise as positive please!! Problem 2: A 2D general force system acts on the frame, P, = 80 N, P, - 100 N, P, -50 Nm - 200 N-m, and a - 0.1 m, and the frame is in equilibrium. Determine the unknown forces Ax, Ay, and Dy using the equilibrium equations: E. Fix = 0;., Fly = 0; and Moi = 0 where o is an arbitrary point.

Question 1 of 3 Question 1 2.5 points Save Answer Determine the mass moment of inertia...

Question 1 of 3 Question 1 2.5 points Save Answer Determine the mass moment of inertia of the pendulum about an axis perpendicular to the page and passing through point O The slender rod has a massi of 10 kg and the sphere has a mass of 30 kg kg m2 (A 0.675 B. 9.195 C. 9.870 D. 7.971) the mass moment of inertia, lo (Choose the correct answer. If the correct answer is B. 490.5 type B or b...
PROBLEMS The pin-connected structure is loaded as wn in Figure 5. Bar CD is rigid, and...

PROBLEMS The pin-connected structure is loaded as wn in Figure 5. Bar CD is rigid, and is horizontal before load P is applied. Bar A is made of alumimm 0:- 75 GPa, cross-sectional area-1000 mm2 Bar Bis made of structural steel (E-200 GPa, cross sectional area- 500 20m P150N (a) (15 points) Draw the free body diagram for bar CD, and write down (but do not solve) the equations of static equilibrium for the stracture. (b) (5 points) Is it...
A uniform, 24.5 kg beam of length 2.90 m is hanging horizontally as shown in the...

A uniform, 24.5 kg beam of length 2.90 m is hanging horizontally as shown in the diagram below. It is pinned to a vertical wall at point B and supported by a uniform 15.9 kg diagonal brace that is pinned at point C on the beam and at point A on the wall. [Use g = 9.80 m/s2.] There is a load W, with a weight of 211 N, hanging at the end of the horizontal beam. The distance BC is...

Consider a bar, of length 3.5 m, shown in the figure, being acted on by three forces. The magnitudes of the first two forces are 16 N and 24 N, and the first force is acting on the end of the bar at an angle of 49° as shown.

Consider a bar, of length 3.5 m, shown in the figure, being acted on by three forces. The magnitudes of the first two forces are 16 N and 24 N, and the first force is acting on the end of the bar at an angle of 49° as shown. Part (a) What is the torque, in newton-meters, due to F1 on this bar relative to the left end? Use a coordinate system with positive directed out of the screen. Part (b) What...
