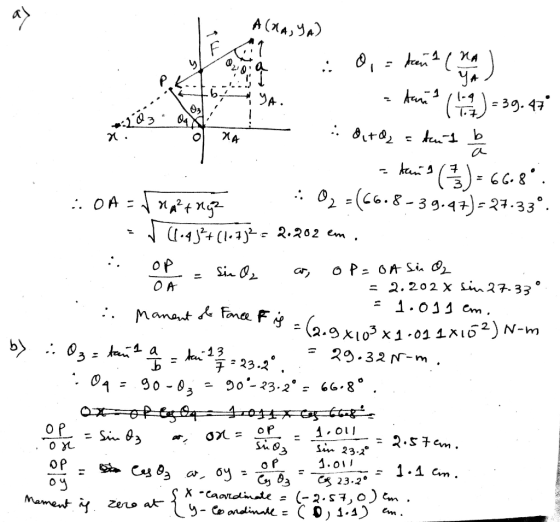

The 2.9-kN force F is applied at point A. (a) Compute the moment of F about...
Find the moment at point O, in cartesian vector form, due to T applied at point...
Find the moment at point O, in cartesian vector form, due to T applied at point B. Resolve the moment about the X,Y and Z axes. 2 Coordinates (ft) A2 25 B 310 -2 T = 200 lbs
A force of 20 N is applied vertically at point B as shown below. 3 m...
A force of 20 N is applied vertically at point B as shown below. 3 m 20 N Determine the moment about point A caused by the 20N force. (Type in your numerical answer in the space below.) 60 N*m Indicate if this moment is CW or CCW. (Type "CW" or "CCW" in the space below.) CW
Force F, 1 kN, is applied in the negative y-direction at point B. The magnitudes of...
Force F, 1 kN, is applied in the negative y-direction at point
B. The magnitudes of the tension in the cables are T(BC) = 707 N
and T(BD) = 1500 N. Point E is 3m from point A.
a) Calculate the vectors representing the tensions in the
cables.
b) Determine the internal force and moment system in the bar at
x-section E. Show the internal forces and moment on free body
diagram.
6 m I) 6 3
Using the position vector from A to C, calculate the moment about segment A B due to force F.
The general process (not referenced to Figure 1) to calculate the moment of a force about a specified axis is as follows:The magnitude of a moment about a line segment connecting points P and Q due to a force F applied at point R (with R not on the line through P and Q ) can be calculated using the scalar triple product,MPQ=uPQ · r × Fwhere r is a position vector from any point on the line through P...
HW5. a) Find the moment of the 1.80 kN force about point B. Express your answer...
HW5. a) Find the moment of the 1.80 kN force about point B. Express your answer as a standard cartesian vector, b) Now find the component of that moment about the line from B to A. 1.80 kN 4 m 6 m 2 m
HW5. a) Find the moment of the 1.80 kN force about point B. Express your answer...
HW5. a) Find the moment of the 1.80 kN force about point B. Express your answer as a standard cartesian vector. b) Now find the component of that moment about the line from B to A. 1.80 kN 4 m 2 m 6 m 2 m 6 m 4 m
Question 1: (20 Points) For the beam and loading shown: a- Draw shear and moment diagrams. b- Write equations of shear and moment for all segments of the beam from 20 kN 0 kN 8 kN/m x =-4 to x = 8, U...
Question 1: (20 Points) For the beam and loading shown: a- Draw shear and moment diagrams. b- Write equations of shear and moment for all segments of the beam from 20 kN 0 kN 8 kN/m x =-4 to x = 8, Use x-y axes as shown. Do not change x-y coordinates. Answers: M56 kN-mx4.09 kN-m
Question 1: (20 Points) For the beam and loading shown: a- Draw shear and moment diagrams. b- Write equations of shear and moment for...
Force F 3.4 kN acts at point o, as shown. Force F has direction angles a:...
Force F 3.4 kN acts at point o, as shown. Force F has direction angles a: 61.40, β-115.5, and r-400 F=3.4 kN 540 mm --..:,' 360 mm 720 mm Determine the magnitude in N·m and direction angles in degrees of the moment of the force about point A. M 2115 × N·m YA Submit Answer Save Progress Practice Another Version ncial Aid VerifiupdfA
a) Using the position vector from A toC, calculate the moment about segment AB due...
a) Using the position vector from A to C, calculate the moment about segment AB due to
force Fb) Using the position vector from B to C, calculate the moment about segment AB due to
force FThe general process (not referenced to Figure 1) to calculate the moment of a force about a specified axis is as follows:The magnitude of a moment about a line segment connecting points P and Q due to a force F applied at point R (with R...
Question 4 (20 points) Moment about a Line Find the moment about line segment OA caused...
Question 4 (20 points) Moment about a Line Find the moment about line segment OA caused by the applied force F. Note: Point A is located in the x-z plane; Point B is located in the x-y plane F=< -10, 30, -8 > KN 2 m
Find the moment at point O, in cartesian vector form, due to T applied at point B. Resolve the moment about the X,Y and Z axes. 2 Coordinates (ft) A2 25 B 310 -2 T = 200 lbs
A force of 20 N is applied vertically at point B as shown below. 3 m 20 N Determine the moment about point A caused by the 20N force. (Type in your numerical answer in the space below.) 60 N*m Indicate if this moment is CW or CCW. (Type "CW" or "CCW" in the space below.) CW
Force F, 1 kN, is applied in the negative y-direction at point
B. The magnitudes of the tension in the cables are T(BC) = 707 N
and T(BD) = 1500 N. Point E is 3m from point A.
a) Calculate the vectors representing the tensions in the
cables.
b) Determine the internal force and moment system in the bar at
x-section E. Show the internal forces and moment on free body
diagram.
6 m I) 6 3
HW5. a) Find the moment of the 1.80 kN force about point B. Express your answer as a standard cartesian vector, b) Now find the component of that moment about the line from B to A. 1.80 kN 4 m 6 m 2 m
HW5. a) Find the moment of the 1.80 kN force about point B. Express your answer as a standard cartesian vector. b) Now find the component of that moment about the line from B to A. 1.80 kN 4 m 2 m 6 m 2 m 6 m 4 m
Question 1: (20 Points) For the beam and loading shown: a- Draw shear and moment diagrams. b- Write equations of shear and moment for all segments of the beam from 20 kN 0 kN 8 kN/m x =-4 to x = 8, Use x-y axes as shown. Do not change x-y coordinates. Answers: M56 kN-mx4.09 kN-m
Question 1: (20 Points) For the beam and loading shown: a- Draw shear and moment diagrams. b- Write equations of shear and moment for...
Force F 3.4 kN acts at point o, as shown. Force F has direction angles a: 61.40, β-115.5, and r-400 F=3.4 kN 540 mm --..:,' 360 mm 720 mm Determine the magnitude in N·m and direction angles in degrees of the moment of the force about point A. M 2115 × N·m YA Submit Answer Save Progress Practice Another Version ncial Aid VerifiupdfA
a) Using the position vector from A to C, calculate the moment about segment AB due to
force Fb) Using the position vector from B to C, calculate the moment about segment AB due to
force FThe general process (not referenced to Figure 1) to calculate the moment of a force about a specified axis is as follows:The magnitude of a moment about a line segment connecting points P and Q due to a force F applied at point R (with R...
Question 4 (20 points) Moment about a Line Find the moment about line segment OA caused by the applied force F. Note: Point A is located in the x-z plane; Point B is located in the x-y plane F=< -10, 30, -8 > KN 2 m
