Homework Answers
Add Answer to:

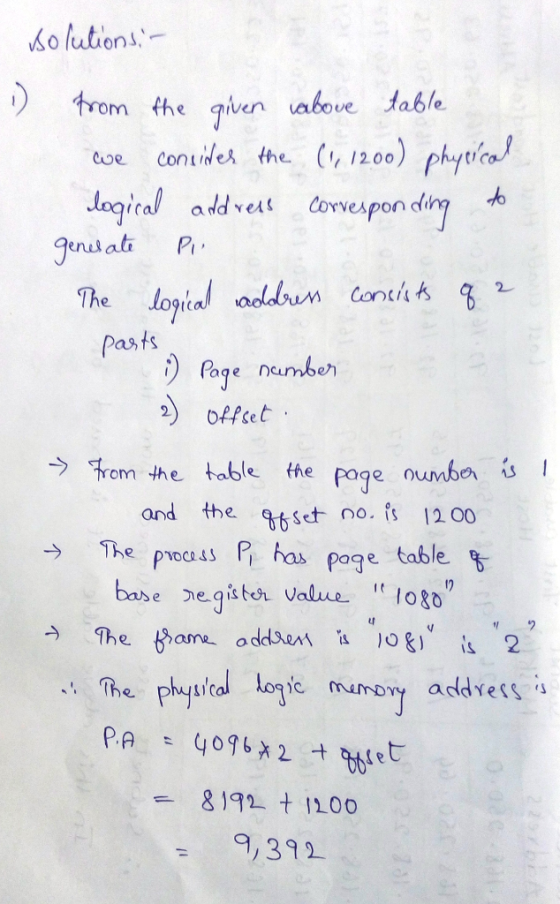

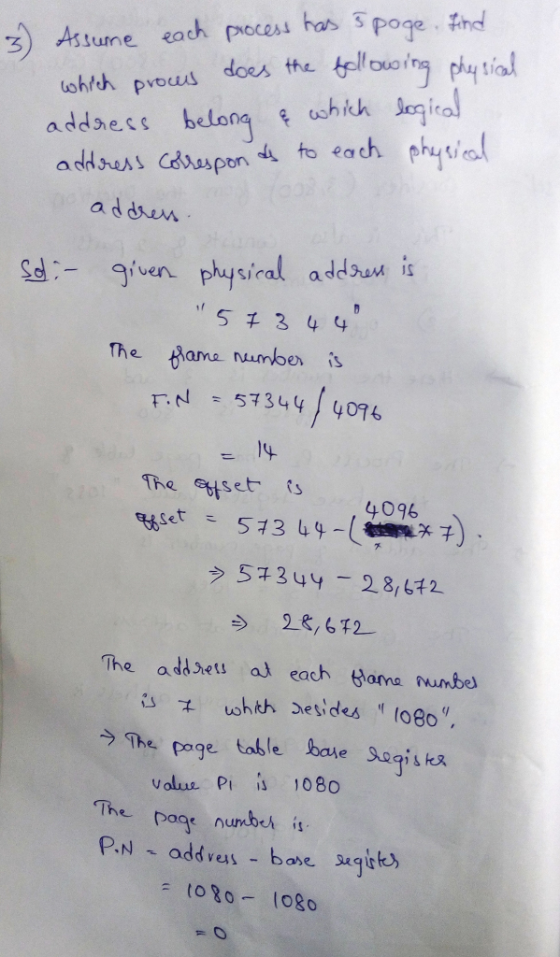

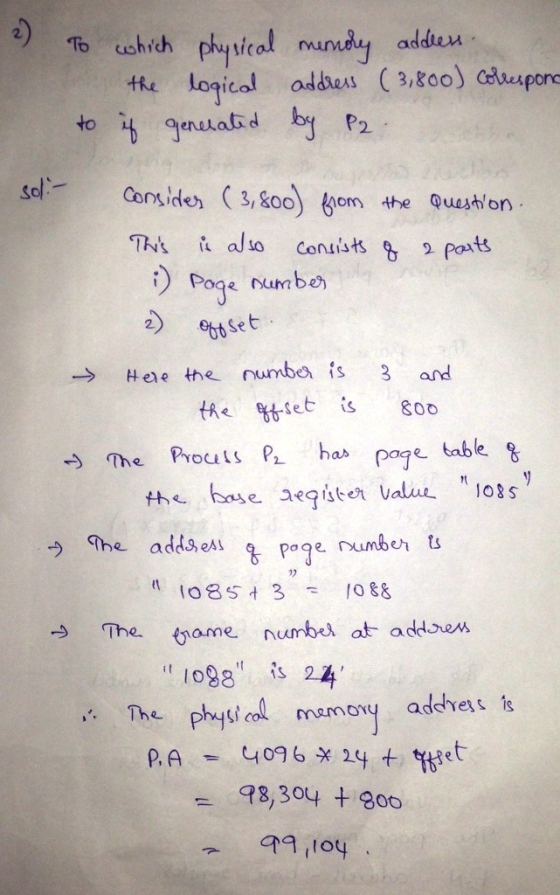

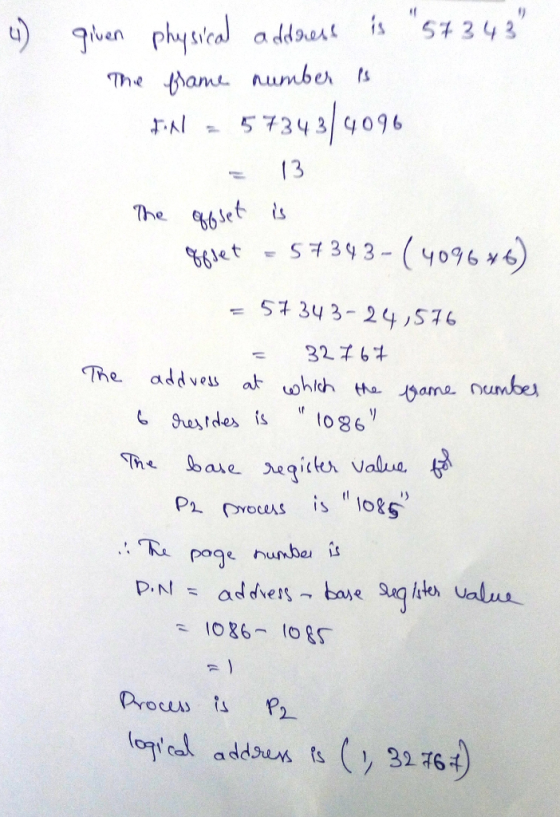

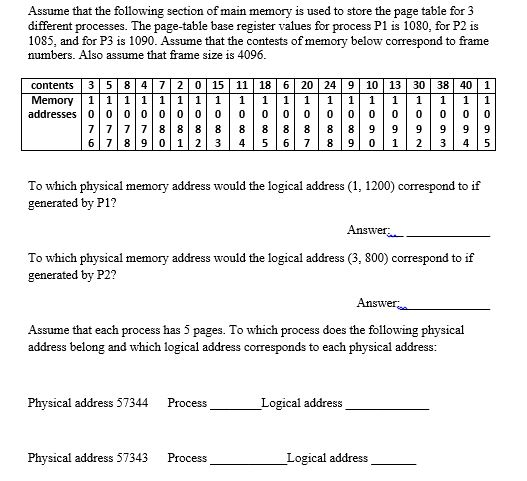

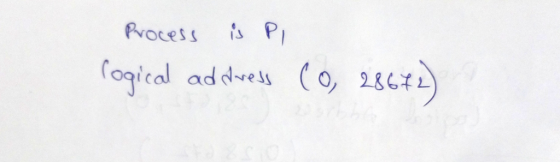

Assume that the following section of main memory is used to store the page table for...
Please help answer the following questions on how operating systems handle memory allocation in Main Memory....
Please help answer the following questions on how operating systems handle memory allocation in Main Memory. Suppose page size = 2^11 and the logical address is 15 bits. How many pages can a process have at most? Convert the logical address of 18723 to a <page#, offset> format. Assume the page size from the question 1. Suppose the logical address 18723 is located in frame 5. What is the physical address that the logical address is mapped to?
Main memory has 1,024 bytes, and frames are 32 bits. Assume a portion of main memory,...
Main memory has 1,024 bytes, and frames are 32
bits. Assume a portion of main memory, and the page table,
shown below. The frame numbers in the Page Table are shown as base
10, but all other data in the tables is either binary or hex. A TLB
is not used. The virtual address space for each process is 8 pages.
The first frame in memory is frame 0, but only a portion of memory
is shown (not necessarily that...
1. Consider a simple paging system with the following parameters: 232 bytes of physical memory; page...
1. Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size of 210 bytes; 216 pages of logical address space. How many bits are in a logical address? How many bytes are in a frame! How many bits in the physical address specify the frame? How many entries are in the page table? How many bits are in each page table entry? Assume each page table entry contains a valid/invalid bit. 2. Consider a...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and with 4096-byte pages. All numbers below are given in hexadecimal. (A dash for a page frame indicates that the page is not in memory.) Page Number Physical Frame Number 0 - 1 2 2 C 3 A 4 - 5 4 6 3 7 - 8 B 9 0 How many bits are in the offset part of the address? How many hex digits...
Exercise l: Suppose that we have a virtual memory space of 28 bytes for a given process and physical memory of 4 page frames. There is no cache. Suppose that pages are 32 bytes in length. 1) How...
Exercise l: Suppose that we have a virtual memory space of 28 bytes for a given process and physical memory of 4 page frames. There is no cache. Suppose that pages are 32 bytes in length. 1) How many bits the virtual address contain? How many bits the physical address contain? bs Suppose now that some pages from the process have been brought into main memory as shown in the following figure: Virtual memory Physical memory Page table Frame #...
A system implements a paged virtual address space for each process using a one-level page table....
A system implements a paged virtual address space for each process using a one-level page table. The maximum size of virtual address space is 8MB. The page table for the running process includes the following valid entries (the -> notation indicates that a virtual page maps to the givenpage frame, that is, it is located in that frame): Virtual page 2 -> Page frame4 Virtual page 4 -> Page frame 9 Virtual page 1 -> Page frame2 Virtual page 3...
Number Name 3. Assuming no page fault on a page table access, what is the processor...
Number Name 3. Assuming no page fault on a page table access, what is the processor memory access time for the system depicted in the above figure, for a physical memory with 50ns read/write times? 4. Now, assume that the memory system has a translation look-aside buffer (TLB). The TLB requires 10 ns to determine a hit or mess. The physical memory system has an access time of 50ns. You may assume that page fault rate for the application is...
18. You have a byte-addressable virtual memory system with a two-entry TLB, a 2-way set associati...
18. You have a byte-addressable virtual memory system with a two-entry TLB, a 2-way set associative cache, and a page table for a process P. Assume cache blocks of 8 bytes and page size of 16 bytes. In the system below, main memory is divided into blocks, where each block is represented by a letter. Two blocks equal one frame. Given the system state as depicted above, answer the following questions: a) How many bits are in a virtual address...
1) The following page table illustrates a system with 12-bit virtual and physical addresses and 256-byte...
1) The following page table illustrates a system with 12-bit virtual and physical addresses and 256-byte pages. Free page frames are to be allocated in the order9 F, D. A dash for a page frame indicates that the page is not in memory. (4 points) Page Page-Frame 0x4 OxB 0 2 4 0x2 0x0 0xC 7 Convert the following virtual addresses to their equivalent physical addresses irn hexadecimal. All numbers are given in hexadecimal. In the case of a page...
1. Given the following physical addresses and value in memory: add 0 val 9 10 11 12 13 1415161181...
1. Given the following physical addresses and value in memory: add 0 val 9 10 11 12 13 14151611819 2021 22 23 18 24 20 32 0 40 8 32 245458 10 36 34 3230 40 35 3028 add 24 25 26 27 28 29 30 31 32 33 34 | 35 | 36 37 38 39 40 | 41 | 42 | 43 44 45 46 47 8 40 35 1614 12 12 22 24417 21 23 25 27...
Main memory has 1,024 bytes, and frames are 32
bits. Assume a portion of main memory, and the page table,
shown below. The frame numbers in the Page Table are shown as base
10, but all other data in the tables is either binary or hex. A TLB
is not used. The virtual address space for each process is 8 pages.
The first frame in memory is frame 0, but only a portion of memory
is shown (not necessarily that...
1. Consider a simple paging system with the following parameters: 232 bytes of physical memory; page size of 210 bytes; 216 pages of logical address space. How many bits are in a logical address? How many bytes are in a frame! How many bits in the physical address specify the frame? How many entries are in the page table? How many bits are in each page table entry? Assume each page table entry contains a valid/invalid bit. 2. Consider a...
Exercise l: Suppose that we have a virtual memory space of 28 bytes for a given process and physical memory of 4 page frames. There is no cache. Suppose that pages are 32 bytes in length. 1) How many bits the virtual address contain? How many bits the physical address contain? bs Suppose now that some pages from the process have been brought into main memory as shown in the following figure: Virtual memory Physical memory Page table Frame #...
Number Name 3. Assuming no page fault on a page table access, what is the processor memory access time for the system depicted in the above figure, for a physical memory with 50ns read/write times? 4. Now, assume that the memory system has a translation look-aside buffer (TLB). The TLB requires 10 ns to determine a hit or mess. The physical memory system has an access time of 50ns. You may assume that page fault rate for the application is...
18. You have a byte-addressable virtual memory system with a two-entry TLB, a 2-way set associative cache, and a page table for a process P. Assume cache blocks of 8 bytes and page size of 16 bytes. In the system below, main memory is divided into blocks, where each block is represented by a letter. Two blocks equal one frame. Given the system state as depicted above, answer the following questions: a) How many bits are in a virtual address...
1) The following page table illustrates a system with 12-bit virtual and physical addresses and 256-byte pages. Free page frames are to be allocated in the order9 F, D. A dash for a page frame indicates that the page is not in memory. (4 points) Page Page-Frame 0x4 OxB 0 2 4 0x2 0x0 0xC 7 Convert the following virtual addresses to their equivalent physical addresses irn hexadecimal. All numbers are given in hexadecimal. In the case of a page...
1. Given the following physical addresses and value in memory: add 0 val 9 10 11 12 13 14151611819 2021 22 23 18 24 20 32 0 40 8 32 245458 10 36 34 3230 40 35 3028 add 24 25 26 27 28 29 30 31 32 33 34 | 35 | 36 37 38 39 40 | 41 | 42 | 43 44 45 46 47 8 40 35 1614 12 12 22 24417 21 23 25 27...
