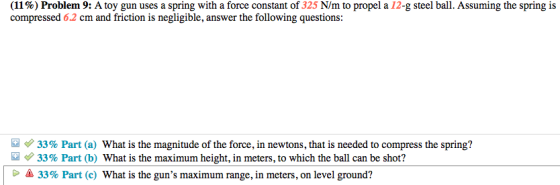

(11 %) Problem 9: A toy gun uses a spring with a force constant of 325...

Question

Question

science physics

Answer 1

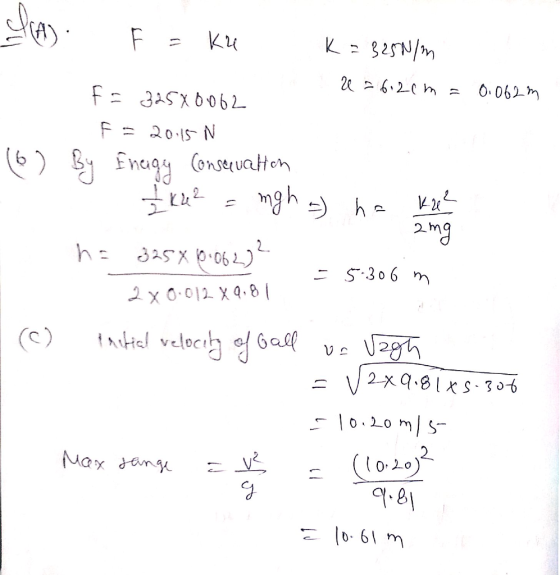

Answer #1

Answer 2

Similar Homework Help Questions

A toy gun uses a spring with a force constant of 290 N/m to propel a...

A toy gun uses a spring with a force constant of 290 N/m to propel a 8.5-g steel ball. Assuming the spring is compressed 6.8 cm and friction is negligible, answer the following questions: What is the gun’s maximum range, in meters, on level ground? Why does the gun's maximum gun range = (v)^2/g?
A toy gun uses a spring with a force constant of 350 N/m to propel a...

A toy gun uses a spring with a force constant of 350 N/m to propel a 14.0 g steel ball. The spring is compressed 8.80 cm and friction is negligible. (a) How much force (in N) is needed to compress the spring? (Assume the gun is aimed in the positive direction. Indicate the direction with the sign of your answer.) (b) To what maximum height (in m) can the ball be shot? (c) At what angles above the horizontal (in...
1. A toy gun with a spring constant of 27.5 N/cm is compressed 2.5 cm. (a)...

1. A toy gun with a spring constant of 27.5 N/cm is compressed 2.5 cm. (a) What is the speed that the ball leaves the gun? (b) What is the maximum height reached by the ball? 2. A sling shot has a spring constant of 2450 N/m. It is stretched 30.0 cm. If the projectile is launched at 38.5-deg, what is the maximum height reached of the projectile? please explain with as much details possible thank you

The spring of a spring gun has force constant k = 400 N/m and negligible mass....

The spring of a spring gun has force constant k = 400 N/m and negligible mass. The spring is compressed 6.00 cm and a ball with mass 0.0300 kg is placed in the horizontal barrel against the compressed spring. The spring is then released, and the ball is propelled out the barrel of the gun. The barrel is 6.00 cmlong, so the ball leaves the barrel at the same point that it loses contact with the spring. The gun is...
A toy dart gun contains a spring with a spring constant of 250 N/m. A 0.059...

A toy dart gun contains a spring with a spring constant of 250 N/m. A 0.059 kg dart is pressed 0.05 m into the gun. a) If the gun is aimed directly upward, how high into the air will the dart travel when shot (measured from the compressed position in the gun)? b) What is the maximum velocity of the dart? c) If the dart got stuck to the spring: i) with what angular frequency will the dart oscillate (neglect...
A spring-loaded toy dart gun shoots a dart to a maximum height of 24 meters. The...

A spring-loaded toy dart gun shoots a dart to a maximum height of 24 meters. The same dart is again shot upward, but this time the spring is compressed only half as far before firing. Neglecting friction and assuming an ideal spring, how far up does the dart go this time? οοοοοο Ο 96 m Ο 48 m Ο 24 m Ε , Ε Ε

The toy gun in the figure below consists of a spring with spring constant k

The toy gun in the figure below consists of a spring with spring constant k. It is loaded with a projectile of mass m and the spring is compressed a distance d. The toy gun is fired horizontally and the bullet travels a total distance L within the toy gun before it is released. A) Neglecting all resistive forces, determine the speed of the projectile vo once it exits the toy gun (i.e., express Vo in terms of the known quantities...
The spring of a spring gun has force constant k = 450 N/m and negligible mass....

The spring of a spring gun has force constant k = 450 N/m and negligible mass. The spring is compressed 6.40 cm and a ball with mass 0.0270 kg is placed in the horizontal barrel against the compressed spring. The spring is then released, and the ball is propelled out the barrel of the gun. The barrel is 6.40 cm long, so the ball leaves the barrel at the same point that it loses contact with the spring. The gun...
The massless spring of a spring gun has a force constant k = 0.04 N/cm. When...

The massless spring of a spring gun has a force constant k = 0.04 N/cm. When the gun is aimed vertically, a 19 g projectile is shot to a height of 5.0 m above the end of the expanded spring. (See below.) How much was the spring compressed initially? (Find d, in meters.)

A 28 g ball is shot from a spring gun whose spring has a force constant...

A 28 g ball is shot from a spring gun whose spring has a force constant of 367 N/m. The spring can be compressed 3 cm. How high will the ball go if the gun is aimed vertically? The acceleration of gravity is 9.81 m/s 2 . Assume that at the end of the barrel, the spring’s displacement and the ball’s height are each zero. Answer in units of m.
