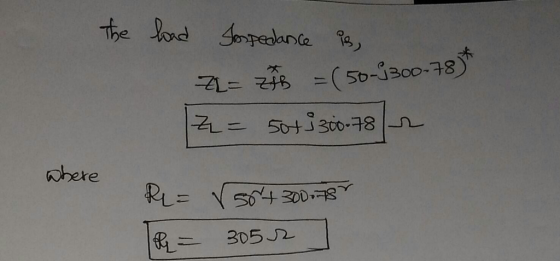

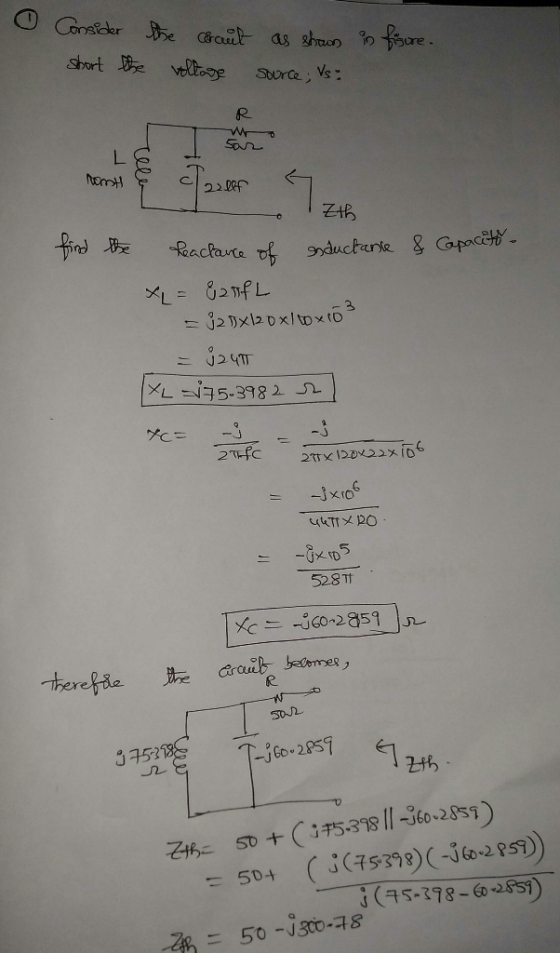

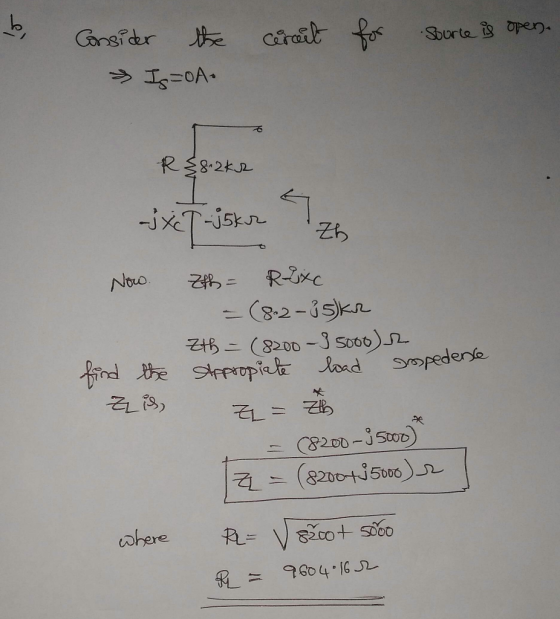

b.) only Maximum Power Transfer Theorem 16. For each circuit in Figure 19-53, maximum power is...
(a) Given a circuit in Figure Q4(a): (1) State the condition for maximum average power transfer to the load impedance. Z (2 marks) (1) Determine the load impedance, Z (4 marks) (in) Find the maximum average power (5 marks) Lt mm JI R RE 492 120° A 20 C. 70.502 W ZL 1 Figure Q4(a) An air conditioner operates at 240V... at a frequency of 60 Hz. It absorbs an average power of 9 kW at a lagging power factor,...
For the circuit shown above,
(a) determine the impedance ZL results in maximum average power
transfer to ZL ?
(b) What is the maximum average power transferred to the load
impedance determined in (a) ?
20/0° © 2003 -j6n+ Z For the circuit shown above, (a) determine the impedance ZL results in maximum average power transfer to ZL? (b) What is the maximum average power transferred to the load impedance determined in (a) ?
Chapter 9, Problem 9.032
Determine (a) the impedance
ZL for maximum average power
transfer and (b) the value of the maximum average
power transferred to ZL for
the circuit shown in the figure below.
Chapter 9, Problem 9.032 Determine (a) the impedance Z_ for maximum average power transfer and (b) the value of the maximum average power transferred to Z_ for the circuit shown in the figure below. 12/30° 04/0A Z c 3
QUESTION 5 a) Determine the value of current A in Figure Q5 by using Thevenin Theorem. Solve VH using superposition theorem. (15 marks) b) State the value of Ri should have to allow maximum power to be delivered to it. ( mark) e) Calculate the voltage, current and power at the load, R when maximum power is delivered to it. (6 marks) d) Show that the efficiency in term of input and output power of the circuit is 50 %...
EE 282-Circuit I Pre-Lab 9 Maximum Power Transfer Theorem Name Concepts: In this pre-lab we will be leaming about Maximum Power Transfer Theorem. Maximum power is transferred to the load when the load resistance equals the thexenin equivalent, and we carry out the analysis using Thevenin's equivalent circuit. In order to do this, first build the following circuit on Mutism. 1 R1 5.1k0 R3 2 V1 R2 8kQ 6.8㏀ Fig. 1 Part 1: To find the Thevenin equivalent resistance, we...
(a) Thevenize the circuit at terminals a-b as shown in Figure-4 (b) What should be the load impedance, Zi for maximum power transfer? (c) What is the maximum power that can be transferred to load ZL? Q4: [12+2+6] 3 Ohms 2 Ohms zLoad Volts (RMS) 1 Ohm 0.2 I1 Figure-4
Problem 4.90 PSpicelMultisim Part A The variable resistor (RL.) in the circuit in (Figure 1) is adjusted for maximum power transfer to RI. Suppose that R:54 Ω Find the numerical value of RL Express your answer to three significant figures and include the appropriate units RL-Value Units Submit vio Figure Incorrect; Try Again; 4 attempts remaining Part B 30 0 Find the maximum power transferred to RI Express your answer to three significant figures and include the appropriate units 45...
