Homework Answers
1/f = 1//do + 1/d1
1/50 = 1/1000 + 1/d1 [ here do is the distance of object)
d1 = 52.63 mm
it is positive so image is real
M = - di/do =-50/52.63 = -0.95
height of image = -0.95 x 7.6 cm = -7.22 cm
So image is inverted since negative sign.
1/f = 1//do + 1/d1
1/50 = 1/1000 + 1/d1 [ here do is the distance of object)
d1 = 52.63 mm
it is positive so image is real
hi/ho = M = -di/do => hi/76 = -52.63/1000 = hi = -(76 * 52.63)/1000
hi = -4mm
So image is inverted since negative sign.
Add Answer to:
I'll rate as soon as possible, thanks!

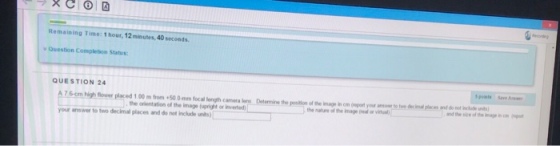

A 7.6 cm high flower placed 1.00 m from...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal...
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position cm height cm Is the image inverted or upright? O upright inverted Is the image real or virtual? Oreal virtual
11.87 A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of...
11.87 A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position Take the image formed by the first lens to be the object for the second lens and apply the lens equation to each lens to locate the final image. cm 8.442...
A 3.21 mm high diamond is placed on the axis of, and 10.5 cm from, a...
A 3.21 mm high diamond is placed on the axis of, and 10.5 cm from, a lens with a focal length of -6.79 cm. If it can be determined, is the diamond's image real or virtual? real virtual cannot be determined How high is the image? Express the answer as a positive quantity. image height: mm If it can be determined, is the image upright or inverted with respect to the real thing? inverted upright cannot be determined
A 5.51 mm high diamond is placed on the axis of, and 10.3 cm from, a...
A 5.51 mm high diamond is placed on the axis of, and 10.3 cm from, a lens with a focal length of −6.01 cm. If it can be determined, is the diamond's image real or virtual? real cannot be determined virtual How high is the image? Express the answer as a positive quantity. image height:____ mm If it can be determined, is the image upright or inverted with respect to the real thing? inverted cannot be determined upright
A 3.85 mm high diamond is placed on the axis of, and 13.5 cm from, a...
A 3.85 mm high diamond is placed on the axis of, and 13.5 cm from, a lens with a focal length of -6.13 cm If it can be determined, is the diamond's image real or virtual? O cannot be determined O real O virtual How high is the image? Express the answer as a positive quantity. image height: If it can be determined, is the image upright or inverted with respect to the real thing? O cannot be determined O...
A 5.39 mm high diamond is placed on the axis of, and 12.3 cm from, a...
A 5.39 mm high diamond is placed on the axis of, and 12.3 cm from, a lens with a focal length of -6.81 cm. If it can be determined, is the diamond's image real or virtual? Oreal O cannot be determined O virtual How high is the image? Express the answer as a positive quantity. image height: mm If it can be determined, is the image upright or inverted with respect to the real thing? upright O inverted O cannot...
A 9.27 mm high chocolate chip is placed on the axis of, and 11.3 cm from,...
A 9.27 mm high chocolate chip is placed on the axis of, and 11.3 cm from, a lens with a focal length of 6.01 cm. If it can be determined, is the chocolate chip's image real or virtual? Oreal virtual cannot be determined How high is the image? Express the answer as a positive quantity. image height: If it can be determined, is the image upright or inverted with respect to the real thing? upright cannot be determined O inverted
A 9.35 mm high chocolate chip is placed on the axis of, and 12.9 cm from,...
A 9.35 mm high chocolate chip is placed on the axis of, and 12.9 cm from, a lens with a focal length of 5.65 cm. If it can be determined, is the chocolate chip's image real or virtual? cannot be determined O virtual Oreal How high is the image? Express the answer as a positive quantity. image height: mm If it can be determined, is the image upright or inverted with respect to the real thing? upright inverted O cannot...
NOTE: PLEASE ONLY ANSWER PARTS C AND E-I. THANKS! A candle 7.60cm high is placed in...
NOTE: PLEASE ONLY ANSWER PARTS C AND E-I. THANKS! A candle 7.60cm high is placed in front of a thin converging lens of focal length 38.5cm. a. What is the image distance i when the object is placed 108.5 cm in front of the same lens? b. What is the size of the image? (Note: an inverted image will have a `negative' size.) c. Is the image real(R) or virtual(V)?; upright(U) or inverted(I)?; larger(L) or smaller(S) or unchanged(UC)?; In front...
A 5.51 mm high diamond is placed on the axis of, and 11.5 cm from, a...
A 5.51 mm high diamond is placed on the axis of, and 11.5 cm from, a lens with a focal length of −5.15 cm. If it can be determined, is the diamond's image real or virtual? virtual cannot be determined real How high is the image? Express the answer as a positive quantity. image height: mmmm If it can be determined, is the image upright or inverted with respect to the real thing?
A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position cm height cm Is the image inverted or upright? O upright inverted Is the image real or virtual? Oreal virtual
11.87 A 1.00-cm-high object is placed 4.85 cm to the left of a converging lens of focal length 8.20 cm. A diverging lens of focal length - 16.00 cm is 6.00 cm to the right of the converging lens. Find the position and height of the final image. position Take the image formed by the first lens to be the object for the second lens and apply the lens equation to each lens to locate the final image. cm 8.442...
A 3.21 mm high diamond is placed on the axis of, and 10.5 cm from, a lens with a focal length of -6.79 cm. If it can be determined, is the diamond's image real or virtual? real virtual cannot be determined How high is the image? Express the answer as a positive quantity. image height: mm If it can be determined, is the image upright or inverted with respect to the real thing? inverted upright cannot be determined
A 3.85 mm high diamond is placed on the axis of, and 13.5 cm from, a lens with a focal length of -6.13 cm If it can be determined, is the diamond's image real or virtual? O cannot be determined O real O virtual How high is the image? Express the answer as a positive quantity. image height: If it can be determined, is the image upright or inverted with respect to the real thing? O cannot be determined O...
A 5.39 mm high diamond is placed on the axis of, and 12.3 cm from, a lens with a focal length of -6.81 cm. If it can be determined, is the diamond's image real or virtual? Oreal O cannot be determined O virtual How high is the image? Express the answer as a positive quantity. image height: mm If it can be determined, is the image upright or inverted with respect to the real thing? upright O inverted O cannot...
A 9.27 mm high chocolate chip is placed on the axis of, and 11.3 cm from, a lens with a focal length of 6.01 cm. If it can be determined, is the chocolate chip's image real or virtual? Oreal virtual cannot be determined How high is the image? Express the answer as a positive quantity. image height: If it can be determined, is the image upright or inverted with respect to the real thing? upright cannot be determined O inverted
A 9.35 mm high chocolate chip is placed on the axis of, and 12.9 cm from, a lens with a focal length of 5.65 cm. If it can be determined, is the chocolate chip's image real or virtual? cannot be determined O virtual Oreal How high is the image? Express the answer as a positive quantity. image height: mm If it can be determined, is the image upright or inverted with respect to the real thing? upright inverted O cannot...
