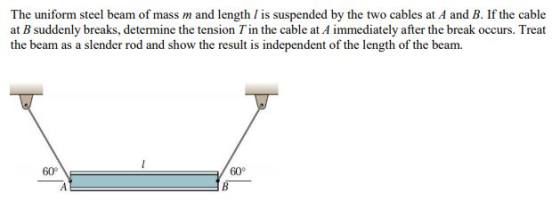

The uniform steel beam of mass m and length is suspended by the two cables at...
The uniform steel beam of mass m = 14.2 kg and length / = 310 mm...
The uniform steel beam of mass m = 14.2 kg and length / = 310 mm is suspended by the two cables at A and B. If the cable at B suddenly breaks, determine the tension T in the cable at A immediately after the break occurs. Treat the beam as a slender rod 59 F 59° Answer: T- 139.55 the tolerance is +/-2%
A 400kg steel beam with a length of 2.0m is horizontally suspended by two cables. On...
A 400kg steel beam with a length of 2.0m is horizontally
suspended by two cables. On that beam is a 150kg crate placed 0.50m
from the right edge. what is the value of -0-(angle between ceiling
ans cable2)?
36. A uniform rod AB of length L and weight W is attached to two wires,...
36. A uniform rod AB of length L and weight W is attached to two wires, each of length b. The rod is released from rest when 0-0 and swings to the position 0-90°, at which time wire BD suddenly breaks. Determine the following: a) The tension in wire AC immediately before wire BD breaks. b) The tension in wire AC immediately after wire BD breaks.
a uniform beam of mass M = 61 kg and length L = 11 m is...
a uniform beam of mass M = 61 kg and length L = 11 m is hung horizontally by vertical cables at the two ends, as shown. a mass of m = 31 kg is then hung from the beam at a distance of 5/8L from the left side. what is the tension in the rightmost cable?
A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall...
A uniform beam of length 20.0 m and mass 50.0 kg is attached to a wall at one end and free to pivot at this point. The beam is held horizontal by a cable attached to the midpoint of the beam and to a point on the wall 5.77 m above the pivot point. The angle between the beam and the cable is 30 degrees. A 20 .0 kg mass hangs from a second cable which is attached to the...
3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is...
3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is attached to a wall. Its far end is suspended by a cable that makes an angle of 63 degrees with the beam. A person of mass 72 kg stands a distance d = 4.0 m from the wall. Find the tension in the cable as well as the magnitude and direction of the force exerted by the wall on the beam.
3.) A uniform beam, mass 15.0 kg. hangs motionless, supported by three cables as shown in...
3.) A uniform beam, mass 15.0 kg. hangs motionless, supported by three cables as shown in the figure. A 12.0 kg mass hangs from a point one- quarter of the length of the beam from the left end. T=? What is the tension in the vertical cable attached at the left end of the beam? m
In the figure, a uniform beam of weight 550 N and length 2.3 m is suspended...
In the figure, a uniform beam of weight 550 N and length 2.3 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance D above the beam. The least tension that will snap the cable is 1100 N What value of D corresponds to that tension? Number Units im The number of significant digits is set to 2, the tolerance is +/-1%
blem 1. A 8.0 m long, non-uniform beam weighing 750 N, supported by two weightless cables, is at rest in horizontal...
blem 1. A 8.0 m long, non-uniform beam weighing 750 N, supported by two weightless cables, is at rest in horizontal position, as shown. The cable on the right has a tension of Tj-375\3 N. (a) The location of the center of mass of the beam measured from its left end is (b) The tension T2 in the other cable is 60 T2 30 т, fiction). The
help 5. A uniform beam of mass M-250 kg and length / 10.0 m is mounted...
help
5. A uniform beam of mass M-250 kg and length / 10.0 m is mounted to a wall by a strong hinge and a cable, as shown. A steel block of mass m 685 kg is placed on the beam a distancex 2.5 m from the hinge. The cable is at an angle 6 400, as shown. 6/ a. Calculate the tension in the cable. b. Calculate the horizontal component of the force the hinge exerts on the beam....
The uniform steel beam of mass m = 14.2 kg and length / = 310 mm is suspended by the two cables at A and B. If the cable at B suddenly breaks, determine the tension T in the cable at A immediately after the break occurs. Treat the beam as a slender rod 59 F 59° Answer: T- 139.55 the tolerance is +/-2%
A 400kg steel beam with a length of 2.0m is horizontally
suspended by two cables. On that beam is a 150kg crate placed 0.50m
from the right edge. what is the value of -0-(angle between ceiling
ans cable2)?
36. A uniform rod AB of length L and weight W is attached to two wires, each of length b. The rod is released from rest when 0-0 and swings to the position 0-90°, at which time wire BD suddenly breaks. Determine the following: a) The tension in wire AC immediately before wire BD breaks. b) The tension in wire AC immediately after wire BD breaks.
3) A uniform horizontal beam of length 12.0 m and a mass of 20 kg is attached to a wall. Its far end is suspended by a cable that makes an angle of 63 degrees with the beam. A person of mass 72 kg stands a distance d = 4.0 m from the wall. Find the tension in the cable as well as the magnitude and direction of the force exerted by the wall on the beam.
3.) A uniform beam, mass 15.0 kg. hangs motionless, supported by three cables as shown in the figure. A 12.0 kg mass hangs from a point one- quarter of the length of the beam from the left end. T=? What is the tension in the vertical cable attached at the left end of the beam? m
In the figure, a uniform beam of weight 550 N and length 2.3 m is suspended horizontally. On the left it is hinged to a wall; on the right it is supported by a cable bolted to the wall at distance D above the beam. The least tension that will snap the cable is 1100 N What value of D corresponds to that tension? Number Units im The number of significant digits is set to 2, the tolerance is +/-1%
blem 1. A 8.0 m long, non-uniform beam weighing 750 N, supported by two weightless cables, is at rest in horizontal position, as shown. The cable on the right has a tension of Tj-375\3 N. (a) The location of the center of mass of the beam measured from its left end is (b) The tension T2 in the other cable is 60 T2 30 т, fiction). The
help
5. A uniform beam of mass M-250 kg and length / 10.0 m is mounted to a wall by a strong hinge and a cable, as shown. A steel block of mass m 685 kg is placed on the beam a distancex 2.5 m from the hinge. The cable is at an angle 6 400, as shown. 6/ a. Calculate the tension in the cable. b. Calculate the horizontal component of the force the hinge exerts on the beam....
