Homework Answers
(i).
A seismograph is a Recording type Instrument. It records the movement of the earth due to the earthquakes to a chart paper or Digitally stored in a computer in the case of a Seismometer.
(ii).
The input signal is Vibration Signal and the output is an electrical signal for seismometer and mechanical movement of the marker in the case of a seismograph.
(iii).

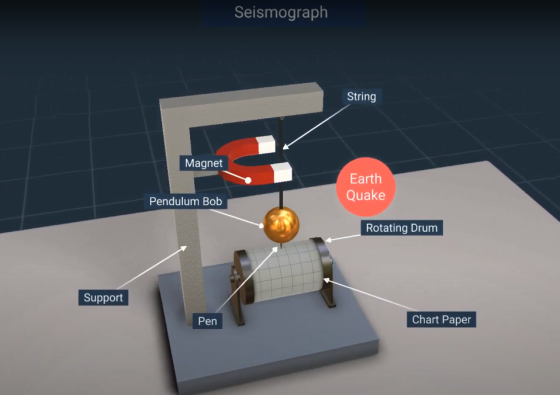

Seismograph satisfies Newton's First law of motion, that is nothing but the conservation of momentum. In other words, the pendulum hanged by a string from the base of the seismograph stays still wile base moves due to earthquake because a negligible force is acted upon the pendulum by the string can not move the pendulum very far.
Add Answer to:

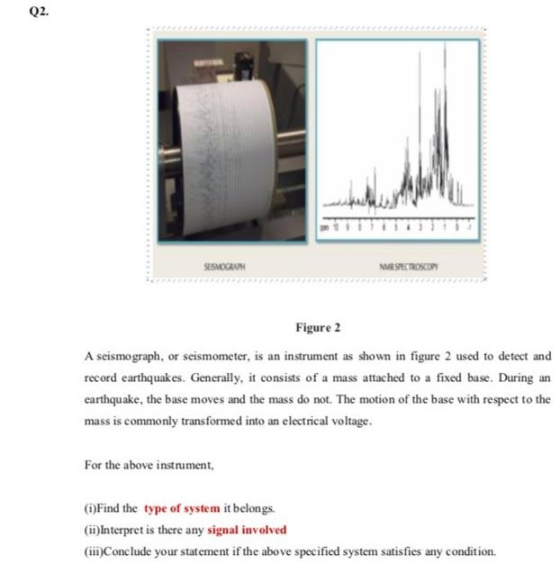

SEISMOGRAM NRSPECTROSCOPY Figure 2 A seismograph, or seismometer, is an instrument as shown in figure 2...
Seismometer Project Imagine that we have a delicate instrument carefully mounted on a low-friction surface, and...
Seismometer Project Imagine that we have a delicate instrument carefully mounted on a low-friction surface, and held in place laterally by springs. Delicate Instrument Very low friction Mounting frame fixed to Earth Since the mounting frame is fixed to the Earth, seismic movements such as earthquakes are our input into the system! The delicate instrument of mass 'm', on the other hand, wants to stay fixed relative to inertial space. Let's assume that the inertial position of the delicate instrument...
9-10 As shown in the figure, a wooden ball with mass m2 is initially at rest...
9-10
As shown in the figure, a wooden ball with mass m2 is initially at rest on a horizontal, frictionless table. A second wooden ball with mass my moving with a speed 2.00 m/s, collides with my. Assume my moves initially along the +x-axis. After the collision, my moves with speed 1.00 m/s at an angle of e = 53.0° to the positive x-axis. Assumem, -0.2009 and m, -0.300 kg) After the colon Before the collision (a) Determine the speed...
The mass of the uniform slender steel rod, shown in Figure 2, is 3 kg. The...
The mass of the uniform slender steel rod, shown in Figure 2, is 3 kg. The system is set in motion with small oscillations about the horizontal equilibrium position shown. (i) Determine the position x for the slider such that the system period is 1 s. (ii) When the pivot is replaced by a built-in support that restricts any rotation at O and the spring is moved to the right-hand end with the 1.2 kg mass removed, calculate the frequency...
2. The electromechanical system shown in the figure below represents a simplified model of a capacitor...
2. The electromechanical system shown in the figure below represents a simplified model of a capacitor microphone. The system consists of a parallel plate capacitor connected into an electric circuit. Capacitor plate a is rigidly fixed to the microphone frame. Sound waves passing through the mouthpiece exert a force fs(t) on plate b, which has mass M and is connected to the frame by a set of springs and dampers The capacitance C is a function of the distance x...
A block having mass m and charge +Q is connected to an insulating spring having a force constant k.
A block having mass m and charge +Q is connected to an insulating spring having a force constant k. The block lies on a frictionless, insulating, horizontal track, and the system is immersed In a uniform electric field of magnitude E directed as shown in the figure below. The block Is released from rest when the spring Is unstretched (at x = 0). We wish to show that the ensuing motion of the block is simple harmonic. (a) Consider the system...
Problem Statement 2: The "sky crane" shown on the text cover was a novel solution to...
Problem Statement 2: The "sky crane" shown on the text cover was a novel solution to the problem of landing the 2000 lb Curiosity rover on the surface of Mars. Curiosity hangs from the descent stage by 60-ft long nylon tethers (Figure 3a). The descent stage uses its thrusters to hover as the rover is lowered to the surface. Thus the rover behaves like a pendulum whose base is moving horizontally. The side thruster force is not constant but is...
Consider the electromechanical dynamic system shown in Figure 1(a). It consists of a cart of mass...
This assignment is for my Engr dynamics systems class.
Consider the electromechanical dynamic system shown in Figure 1(a). It consists of a cart of mass m moving without slipping on a linear ground track. The cart is equipped with an armature-controlled DC motor, which is coupled to a rack and pinion mechanism to convert the rotational motion to translation and to create the driving force for the system. Figure 1(b) shows the simplified equivalent electric circuit and the mechanical model...
winkngs spring i(t) v(t) st VEE Figure 1: (a)Solenoid with retu spring. (b) Equivalent lumped electrical cireuit (...
winkngs spring i(t) v(t) st VEE Figure 1: (a)Solenoid with retu spring. (b) Equivalent lumped electrical cireuit (e) Equivalent mechanical diagram Figure 1(a) illustrates a solenoid with a return spring The voltage e(t) across the winding, causes a current it) to flow through the winding. which in turn generates a magnetic field The magnetic field induces a force f(t) on the plunger mass, . The magnitude of this force is related to the current in the windings via the solenoid's...
just 18.3 In other words, the center of mass moves as a free particle (no external...
just 18.3
In other words, the center of mass moves as a free particle (no external force) of mass m. The solution for R corre- sponds to uniform straight-line motion, and eliminates three of the six independent variables in the original equations of motion (three components each of, and r. Let us take, as the remaining three independent variables, the three components of r -. To ma- nipulate the original dynamical equations into a single vector equation for r. divide...
The term oscillator describes any system that has cyclic or near-cyclic behavior. The periodic motion of...
The term oscillator describes any system that has cyclic or near-cyclic behavior. The periodic motion of a planet or a pendulum, the alternating current in an electrical circuit, the vibrations of cesium atoms in an atomic clock are examples of oscillators. It turns out that many oscillators are governed by differential equations- equations that involve a function and its derivatives. In this project we explore solutions of a common oscillator equation. Imagine a block hanging vertically from a spring that...
Seismometer Project Imagine that we have a delicate instrument carefully mounted on a low-friction surface, and held in place laterally by springs. Delicate Instrument Very low friction Mounting frame fixed to Earth Since the mounting frame is fixed to the Earth, seismic movements such as earthquakes are our input into the system! The delicate instrument of mass 'm', on the other hand, wants to stay fixed relative to inertial space. Let's assume that the inertial position of the delicate instrument...
9-10
As shown in the figure, a wooden ball with mass m2 is initially at rest on a horizontal, frictionless table. A second wooden ball with mass my moving with a speed 2.00 m/s, collides with my. Assume my moves initially along the +x-axis. After the collision, my moves with speed 1.00 m/s at an angle of e = 53.0° to the positive x-axis. Assumem, -0.2009 and m, -0.300 kg) After the colon Before the collision (a) Determine the speed...
The mass of the uniform slender steel rod, shown in Figure 2, is 3 kg. The system is set in motion with small oscillations about the horizontal equilibrium position shown. (i) Determine the position x for the slider such that the system period is 1 s. (ii) When the pivot is replaced by a built-in support that restricts any rotation at O and the spring is moved to the right-hand end with the 1.2 kg mass removed, calculate the frequency...
2. The electromechanical system shown in the figure below represents a simplified model of a capacitor microphone. The system consists of a parallel plate capacitor connected into an electric circuit. Capacitor plate a is rigidly fixed to the microphone frame. Sound waves passing through the mouthpiece exert a force fs(t) on plate b, which has mass M and is connected to the frame by a set of springs and dampers The capacitance C is a function of the distance x...
Problem Statement 2: The "sky crane" shown on the text cover was a novel solution to the problem of landing the 2000 lb Curiosity rover on the surface of Mars. Curiosity hangs from the descent stage by 60-ft long nylon tethers (Figure 3a). The descent stage uses its thrusters to hover as the rover is lowered to the surface. Thus the rover behaves like a pendulum whose base is moving horizontally. The side thruster force is not constant but is...
This assignment is for my Engr dynamics systems class.
Consider the electromechanical dynamic system shown in Figure 1(a). It consists of a cart of mass m moving without slipping on a linear ground track. The cart is equipped with an armature-controlled DC motor, which is coupled to a rack and pinion mechanism to convert the rotational motion to translation and to create the driving force for the system. Figure 1(b) shows the simplified equivalent electric circuit and the mechanical model...
winkngs spring i(t) v(t) st VEE Figure 1: (a)Solenoid with retu spring. (b) Equivalent lumped electrical cireuit (e) Equivalent mechanical diagram Figure 1(a) illustrates a solenoid with a return spring The voltage e(t) across the winding, causes a current it) to flow through the winding. which in turn generates a magnetic field The magnetic field induces a force f(t) on the plunger mass, . The magnitude of this force is related to the current in the windings via the solenoid's...
just 18.3
In other words, the center of mass moves as a free particle (no external force) of mass m. The solution for R corre- sponds to uniform straight-line motion, and eliminates three of the six independent variables in the original equations of motion (three components each of, and r. Let us take, as the remaining three independent variables, the three components of r -. To ma- nipulate the original dynamical equations into a single vector equation for r. divide...
The term oscillator describes any system that has cyclic or near-cyclic behavior. The periodic motion of a planet or a pendulum, the alternating current in an electrical circuit, the vibrations of cesium atoms in an atomic clock are examples of oscillators. It turns out that many oscillators are governed by differential equations- equations that involve a function and its derivatives. In this project we explore solutions of a common oscillator equation. Imagine a block hanging vertically from a spring that...
