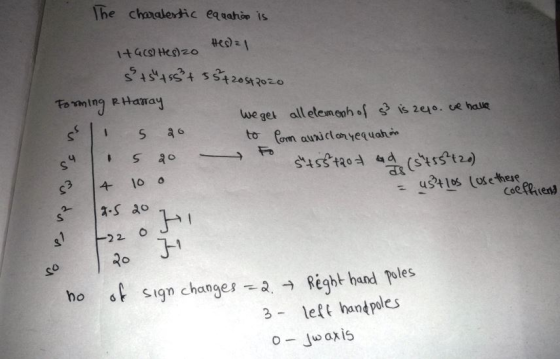

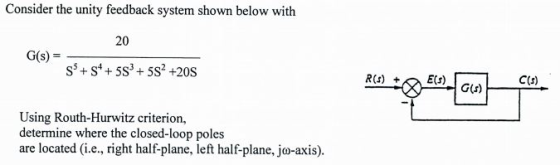

Consider the unity feedback system shown below with 20 G(s)- R(s) + Es) C(s) Using Routh-Hurwitz...
2. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in...
2. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in the Figure lie in the left half-plane, in the right half-plane, and on the jw-axis. R(s) C(s) 507 s* + 3s +102 + 30s +169 S
17. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in...
17. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in Figure P6.5 lie in the left half-plane, in the right half- plane, and on the jw-axis. R(S) + C(s) 507 $++ 333 + 10s- +30s + 169 S
Question 2: By using Routh Hurwitz tabulation method, determine whether the unity feedback system of Figure...
Question 2: By using Routh Hurwitz tabulation method, determine whether the unity feedback system of Figure 2 is stable if 240 G(s)- R(S) + G(S) Figure 2 a. How many poles are in the right half-plane, left-half in the system? b. Verify the system stability by using vissim simulation
please do all step clean and neat Apply Routh-Hurwitz criterion to determine whether the given control...
please do all step clean and neat
Apply Routh-Hurwitz criterion to determine whether the given control system is stable or unstable? b) Tell how many poles of the closed loop transfer function lie in the right half-plane. left half-plane, and on the jo-axis? Justify your answer. a Cis) R(s) +4s-3 .4p832+ 20 15
answer ASAP 2. (20 points) Consider the following unity-feedback system. Suppose G(s) sis+45+6s+4) R) Ets) G(s)...
answer ASAP
2. (20 points) Consider the following unity-feedback system. Suppose G(s) sis+45+6s+4) R) Ets) G(s) A. Check the stability of the closed-loop system by using Routh-Hurwitz Criterion. B. Find the steady-state error when the input is a unit step function.
The open loop transfer function of a unity feedback system is 1. G(s)32 2s4 +5s3+s2 +2s...
The open loop transfer function of a unity feedback system is 1. G(s)32 2s4 +5s3+s2 +2s Using Routh - Hurwitz criteria, (i) (ii) Determine the stability of the system. Find how many roots are lying in the left hand side and right hand side of the s-plane.
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer f...
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) =...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) = K s(s + 1)(s + 2)(8 + 6) a) Find the value of the gain K, that will make the system stable. b) Find the value of the gain K, that will make the system marginally stable. c) Find the actual location of the closed-loop poles when the system is marginally stable.
Due Date: April 20, 2 Problem 2: Consider a unity-feedback control system with the following open-loop...
Due Date: April 20, 2 Problem 2: Consider a unity-feedback control system with the following open-loop transfer function: K G(s)H(s) = s(s2 + 4s + 8) 1. Sketch the root-locus plot. 2. IfK 2, where are the closed-loop poles located? 3. If x = 0.5, where are the closed-loop poles located?
(20 pts) System Design Using Routh-Hurwitz Criterion: one of the reasons we learn Routh-Hurwitz C...
(20 pts) System Design Using Routh-Hurwitz Criterion: one of the reasons we learn Routh-Hurwitz Criterion is that it can help us select the system parameters to make the system stable. In this problem, we will go over this process. Considering a system with the following transfer function: 1. s +2 G(s) = s4 +5s3 2s2 +s + K 1.1 Work out the Routh-Hurwitz table. Note in this case, you will have the unknown parameter K in the table. 1.2 Based...
2. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in the Figure lie in the left half-plane, in the right half-plane, and on the jw-axis. R(s) C(s) 507 s* + 3s +102 + 30s +169 S
17. Using the Routh-Hurwitz criterion, find out how many closed-loop poles of the system shown in Figure P6.5 lie in the left half-plane, in the right half- plane, and on the jw-axis. R(S) + C(s) 507 $++ 333 + 10s- +30s + 169 S
Question 2: By using Routh Hurwitz tabulation method, determine whether the unity feedback system of Figure 2 is stable if 240 G(s)- R(S) + G(S) Figure 2 a. How many poles are in the right half-plane, left-half in the system? b. Verify the system stability by using vissim simulation
please do all step clean and neat
Apply Routh-Hurwitz criterion to determine whether the given control system is stable or unstable? b) Tell how many poles of the closed loop transfer function lie in the right half-plane. left half-plane, and on the jo-axis? Justify your answer. a Cis) R(s) +4s-3 .4p832+ 20 15
answer ASAP
2. (20 points) Consider the following unity-feedback system. Suppose G(s) sis+45+6s+4) R) Ets) G(s) A. Check the stability of the closed-loop system by using Routh-Hurwitz Criterion. B. Find the steady-state error when the input is a unit step function.
The open loop transfer function of a unity feedback system is 1. G(s)32 2s4 +5s3+s2 +2s Using Routh - Hurwitz criteria, (i) (ii) Determine the stability of the system. Find how many roots are lying in the left hand side and right hand side of the s-plane.
4) A unity feedback control system shown in Figure 2 has the following controller and process with the transfer functions: m(60100c Prs(s +10(s+7.5) a) Obtain the open- and closed-loop transfer functions of the system. b) Obtain the stability conditions using the Routh-Hurwitz criterion. e) Setting by trial-and-error some values for Kp, Ki, and Ko, obtain the time response for minimum overshoot and minimum settling time by Matlab/Simulink. Y(s) R(s) E(s) Fig. 2: Unity feedback control system
4) A unity feedback...
Consider the unity feedback system is given below R(S) C(s) G() with transfer function: G(s) = K s(s + 1)(s + 2)(8 + 6) a) Find the value of the gain K, that will make the system stable. b) Find the value of the gain K, that will make the system marginally stable. c) Find the actual location of the closed-loop poles when the system is marginally stable.
Due Date: April 20, 2 Problem 2: Consider a unity-feedback control system with the following open-loop transfer function: K G(s)H(s) = s(s2 + 4s + 8) 1. Sketch the root-locus plot. 2. IfK 2, where are the closed-loop poles located? 3. If x = 0.5, where are the closed-loop poles located?
(20 pts) System Design Using Routh-Hurwitz Criterion: one of the reasons we learn Routh-Hurwitz Criterion is that it can help us select the system parameters to make the system stable. In this problem, we will go over this process. Considering a system with the following transfer function: 1. s +2 G(s) = s4 +5s3 2s2 +s + K 1.1 Work out the Routh-Hurwitz table. Note in this case, you will have the unknown parameter K in the table. 1.2 Based...
