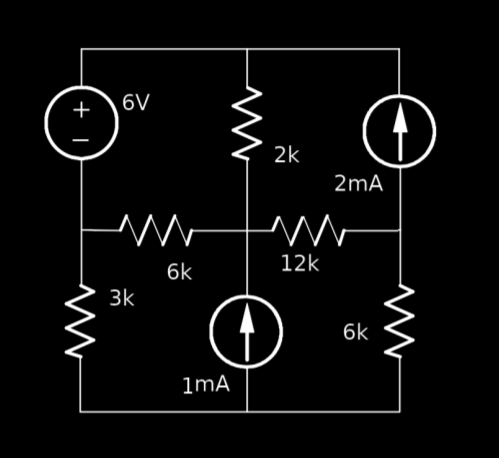

Can someone please show me how to solve this through MATLAB? I'm not sure as to how to begin. I need the MATLAB code in which the arrays are clearly shown. My professor suggested using V=inv(A)*I. Apply nodal analysis in order to find the voltages at each node. Thanks!
Homework Answers

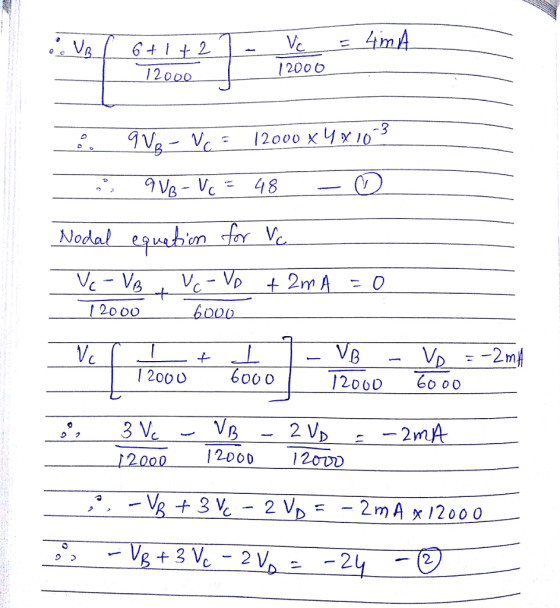

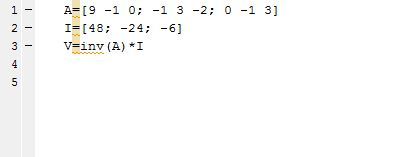

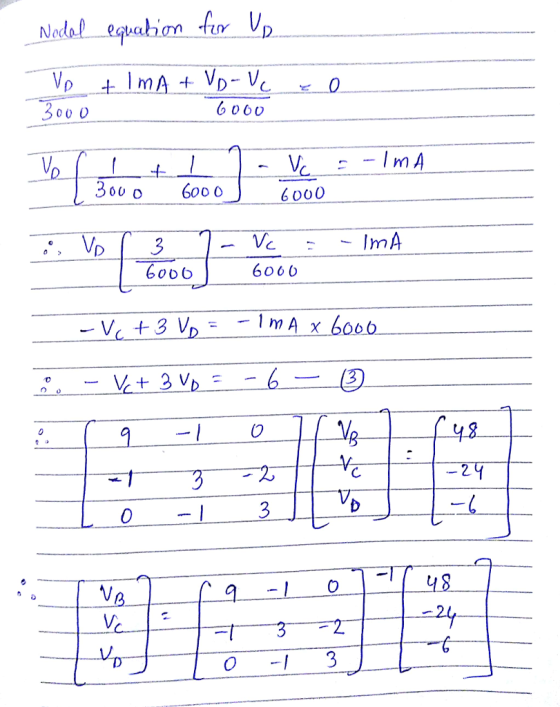

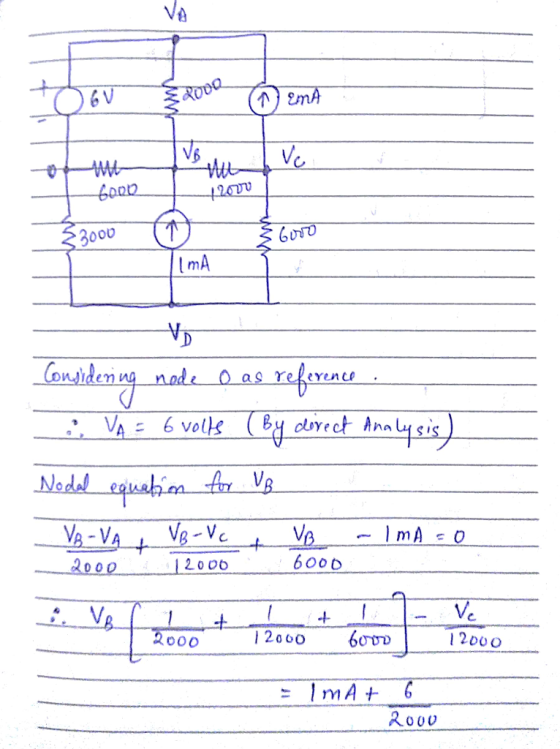

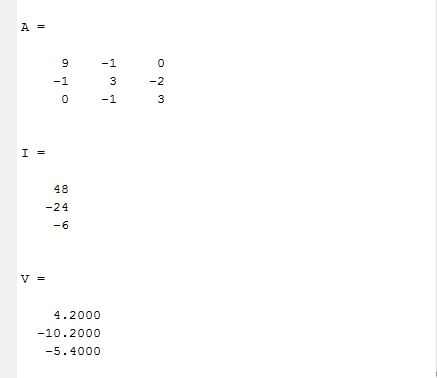

matlab code attached below
In case you have any doubts or you did not understand any step please feel free to ask your doubts in the comments section. I would be happy to clarify
DO GIVE A THUMBS UP !!
