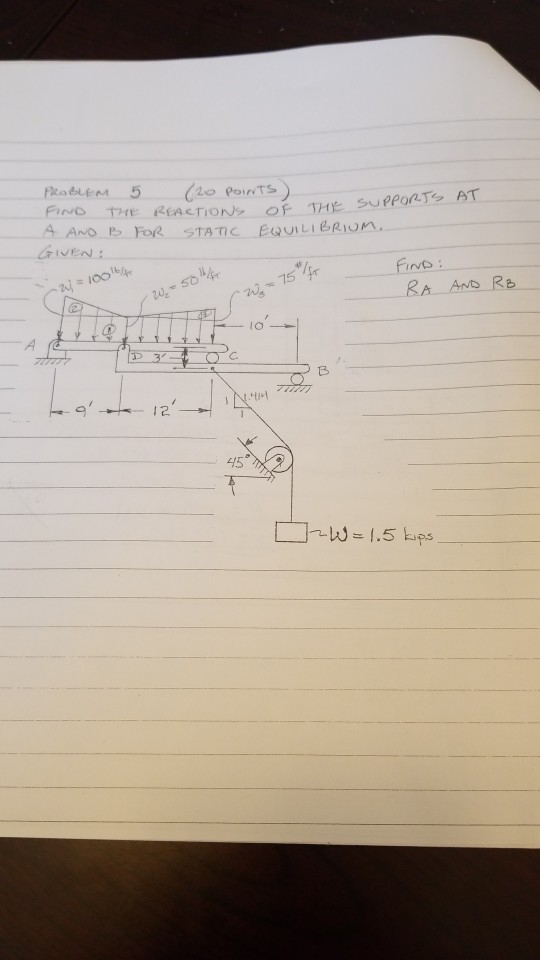

GIVEN s0 1 2 43

Question

Question

GIVEN s0 1 2 43

engineering Mechanical-Engineering

Answer 1

Answer #1

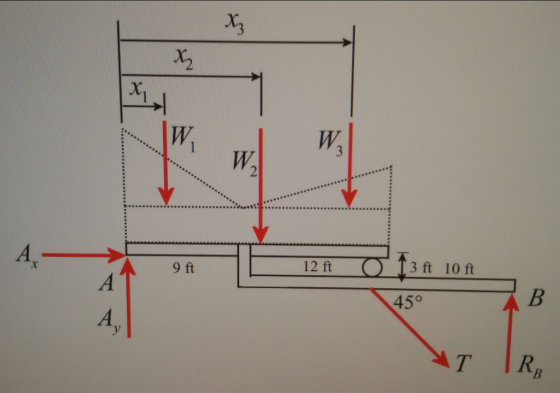

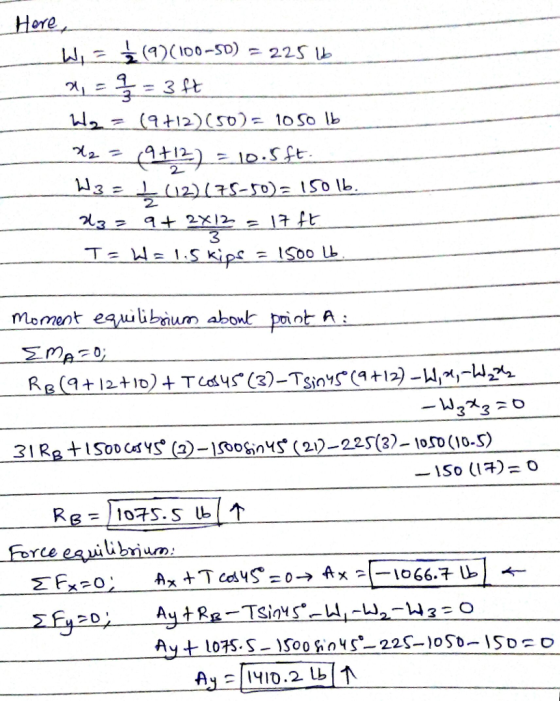

2 A9ft 12 ft 3 ft 10 ft 450 T IR Please review. Leave a comment if any doubt.

Answer 2
