Find the effective flange width.

Left side: 24 feet apart

Bottom: 32 feet apart

T-Beam: 24 in x 36 in

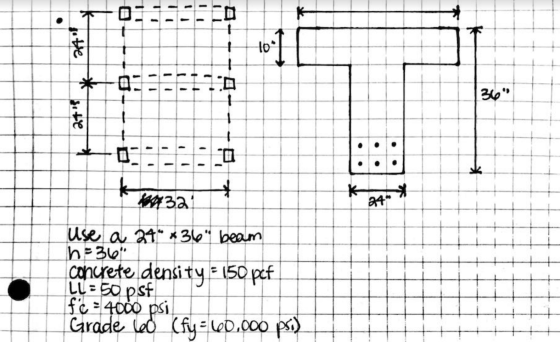

2ts 321 24 Use a 24 x 36 beam h=360 concrete density = 150 per LL = 50. pst fc = 4000 psi! Grade led (fy = 60.000 psi)

engineering Civil-Engineering

Answer 1

Answer #1

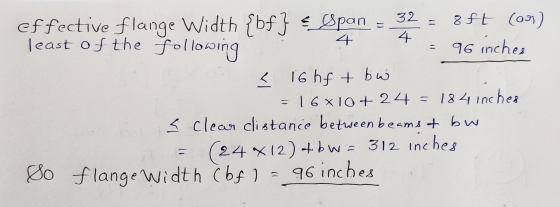

effective flange Width ly least of the following effective flange Width {bf} = $pan = 32 = 8ft (09) 4 4 L 16hft bw = 16X10 + please like sir

Answer 2

Similar Homework Help Questions

Consider a beam with a width of 14 IN and an effective depth of 24 IN....

Consider a beam with a width of 14 IN and an effective depth of 24 IN. What is the maximum area of reinforcement which can be used? The concrete strength f’c = 4000 PSI and the yield strength of the reinforcing steel fy = 60,000 PSI. (Hint: the maximum steel will have a strain of 0.004).
For the beam shown use f-3000 psi and fy 60000 psi. 1- Compute the effective flange...

For the beam shown use f-3000 psi and fy 60000 psi. 1- Compute the effective flange width 2- Compute фМ, for the positive and negative moment regions and check ACI requirements for both sections. At the support, the bottom bars are in one layer and at mid-span, the # 8 bars are in the bottom layer and the # 7 bars are in a second layer. Assume 2.5 in concrete cover (from outside face of concrete to the center of...
