Homework Answers
Add Answer to:

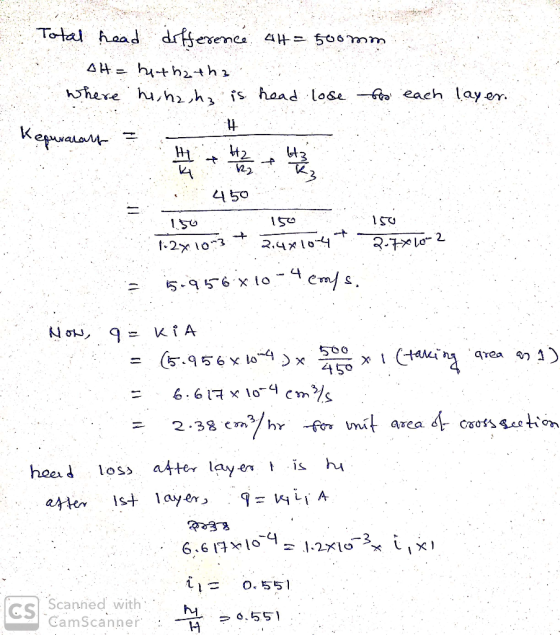

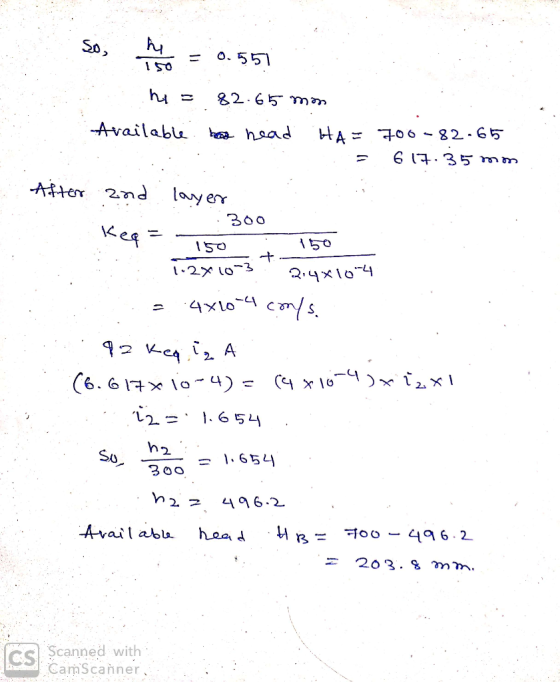

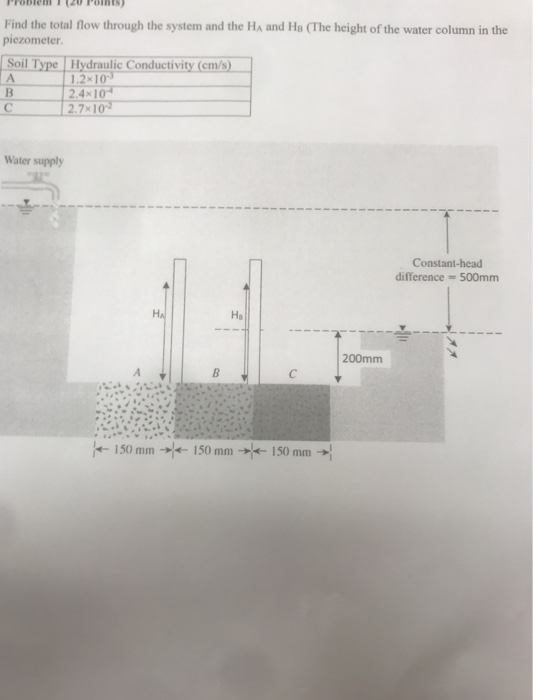

Find the total flow through the system and the HA and Ha (The height of the...
Question 12 Water is flowing downwards through a vertical sand column as shown in Figure 6....
Question 12 Water is flowing downwards through a vertical sand column as shown in Figure 6. The length of the column L 160 cm, the cross-sectional area A 220 cm2, the head difference Ah 130 cm (assume this head difference is constant). The sand in the column has a hydraulic conductivity k 25 m/d and the porosity n=0.32. Determine the steady state seepage velocity of soil. Page 5 of 14 Soil sample area A 220 cm Pemeability k 25 m/day...
1. A soil column has a sample of medium-grained sand 15-cm in height and 25 cm2is...
1. A soil column has a sample of medium-grained sand 15-cm in height and 25 cm2is cross-section area. With a head of 5.0 cm, a total of 100 ml of water is collected in 12 min. Find the hydraulic conductivity and flux
A 100 cm long soil column containing packed sand with a hydraulic conductivity (K) of 100...
A 100 cm long soil column containing packed sand with a hydraulic conductivity (K) of 100 cm/day is placed vertically with the bottom open to the atmosphere. A constant head of 10 cm of water is ponded continuously at the top surface. Calculate the steady state flux Jw through the column.
2. A cylindrical sample of soil is confined in a rigid-wall permeameter and measures 10 cm...
2. A cylindrical sample of soil is confined in a rigid-wall permeameter and measures 10 cm in diameter and 20 cm in length. The axis of the cylindrical sample lies in a horizontal plane. They hydraulic head at the left end of the specimen is controlled by a reservoir; the water surface in the reservoir is exactly 100 cm above the horizontal axis of the cylindrical soil sample and remains at 100 cm through a system that automatically adds water...
Please write correct option after completion of your answer Length of soil sample for constant head...
Please write correct option after completion of your
answer
Length of soil sample for constant head permeability test is 30 cm, Area of specimen is 177cm2 constant head difference is 50 cm, total volume of water collected in 5 min is 350cm Calculate the hydraulic conductivity of the soil. ) 1.09x10 cm/sec )3.95x10cm/sec A) 2.85 x10'cm/sec )1.09x10 cm/sec We were unable to transcribe this imageFind the error in the discharge when a head of water over the crest of a...
A constant-head flow experiment is set up as shown. The soil is a saturated cylindrical silty...
A constant-head flow experiment is set
up as shown. The soil is a saturated cylindrical silty sand sample
extending between Points B and D. Hydraulic conductivity of the
sand is k = 1 x 10-3 cm/sec.
Using the datum shown, calculate the elevation head
he (cm), pressure head hp (cm), and total
head ht (cm) at Points A, B, C, D and E. Report your
answers in the table provided.
Calculate the flow (in cm3/hr) through the silty
sand assuming...
For the shown system, the pump head discharge curve is Hp = 20-30 Q where the...
For the shown system, the pump head discharge curve is Hp = 20-30 Q where the head in m and the discharge in m/s, HA = 10 m, He = 25 m, Hc = 15 m. The diameters for all pipes are 400 mm, the length for pipes 2 and 3 are 1500 m length. Assume fully turbulent flow in all pipes and surface roughness 0.15 mm. Find the water flow distribution when: a) The pipe 1 is not used...
Contaminant sorption and flow in subsurface environment (12 points) An aquifer is contaminated du...
Contaminant sorption and flow in subsurface environment (12 points) An aquifer is contaminated due to a recent spill of a certain industrial solvent. The aquifer has a hydraulic head difference of 0.01 m as measured by two piezometers about 2 m apart along the direction of groundwater flow. The aquifer has a porosity of 0.3, organic carbon бс) of 1.7%, soil particle density of 2.6 g/cm3, and hydraulic conductivity (K) of 2.5 x 103 cm/sec The solvent has a log...
3. During a springtime rain event, flow develops through both the sludge and peat layers in...
3. During a springtime rain event, flow develops through both the sludge and peat layers in the soil profile below. A piezometer with its tip at the base of the peat layer indicates a water rise to 0.6 m above the fill surface (an upward flow condition). What are the new total, elevation, and pressure heads at 0.6m below the top of the sludge layer? Assume head loss occurs through both the sludge and the peat layers. 0.6 m 1...
Contaminant sorption and flow in subsurface environment (12 points) An aquifer is contaminated du...
Contaminant sorption and flow in subsurface environment (12 points) An aquifer is contaminated due to a recent spill of a certain industrial solvent. The aquifer has a hydraulic head difference of 0.01 m as measured by two piezometers about 2 m apart along the direction of groundwater flow. The aquifer has a porosity of 0.3, organic carbon (foc) of 1.7%, soil particle density of 2.6 g/cm, and hydraulic conductivity (K) of 2.5 x 10-3 cm/sec The solvent has a log...
Question 12 Water is flowing downwards through a vertical sand column as shown in Figure 6. The length of the column L 160 cm, the cross-sectional area A 220 cm2, the head difference Ah 130 cm (assume this head difference is constant). The sand in the column has a hydraulic conductivity k 25 m/d and the porosity n=0.32. Determine the steady state seepage velocity of soil. Page 5 of 14 Soil sample area A 220 cm Pemeability k 25 m/day...
Please write correct option after completion of your
answer
Length of soil sample for constant head permeability test is 30 cm, Area of specimen is 177cm2 constant head difference is 50 cm, total volume of water collected in 5 min is 350cm Calculate the hydraulic conductivity of the soil. ) 1.09x10 cm/sec )3.95x10cm/sec A) 2.85 x10'cm/sec )1.09x10 cm/sec We were unable to transcribe this imageFind the error in the discharge when a head of water over the crest of a...
A constant-head flow experiment is set
up as shown. The soil is a saturated cylindrical silty sand sample
extending between Points B and D. Hydraulic conductivity of the
sand is k = 1 x 10-3 cm/sec.
Using the datum shown, calculate the elevation head
he (cm), pressure head hp (cm), and total
head ht (cm) at Points A, B, C, D and E. Report your
answers in the table provided.
Calculate the flow (in cm3/hr) through the silty
sand assuming...
For the shown system, the pump head discharge curve is Hp = 20-30 Q where the head in m and the discharge in m/s, HA = 10 m, He = 25 m, Hc = 15 m. The diameters for all pipes are 400 mm, the length for pipes 2 and 3 are 1500 m length. Assume fully turbulent flow in all pipes and surface roughness 0.15 mm. Find the water flow distribution when: a) The pipe 1 is not used...
Contaminant sorption and flow in subsurface environment (12 points) An aquifer is contaminated due to a recent spill of a certain industrial solvent. The aquifer has a hydraulic head difference of 0.01 m as measured by two piezometers about 2 m apart along the direction of groundwater flow. The aquifer has a porosity of 0.3, organic carbon бс) of 1.7%, soil particle density of 2.6 g/cm3, and hydraulic conductivity (K) of 2.5 x 103 cm/sec The solvent has a log...
3. During a springtime rain event, flow develops through both the sludge and peat layers in the soil profile below. A piezometer with its tip at the base of the peat layer indicates a water rise to 0.6 m above the fill surface (an upward flow condition). What are the new total, elevation, and pressure heads at 0.6m below the top of the sludge layer? Assume head loss occurs through both the sludge and the peat layers. 0.6 m 1...
Contaminant sorption and flow in subsurface environment (12 points) An aquifer is contaminated due to a recent spill of a certain industrial solvent. The aquifer has a hydraulic head difference of 0.01 m as measured by two piezometers about 2 m apart along the direction of groundwater flow. The aquifer has a porosity of 0.3, organic carbon (foc) of 1.7%, soil particle density of 2.6 g/cm, and hydraulic conductivity (K) of 2.5 x 10-3 cm/sec The solvent has a log...
