Homework Answers
Add Answer to:

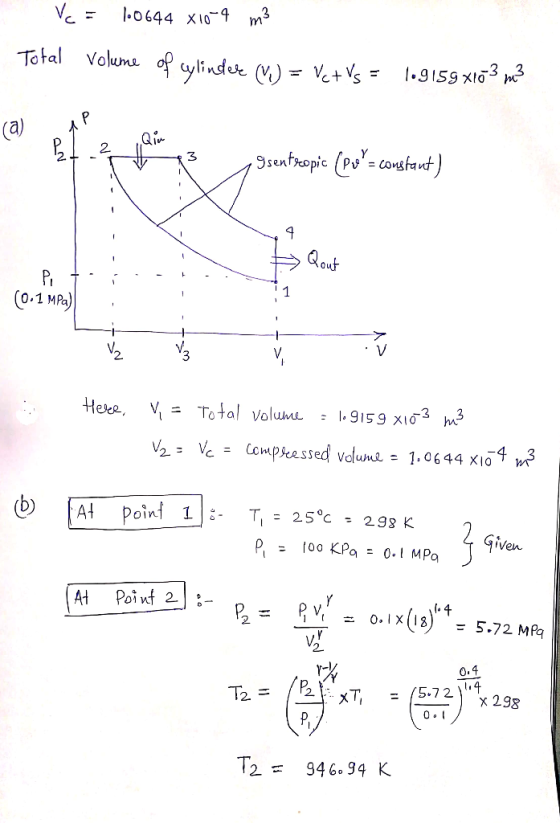

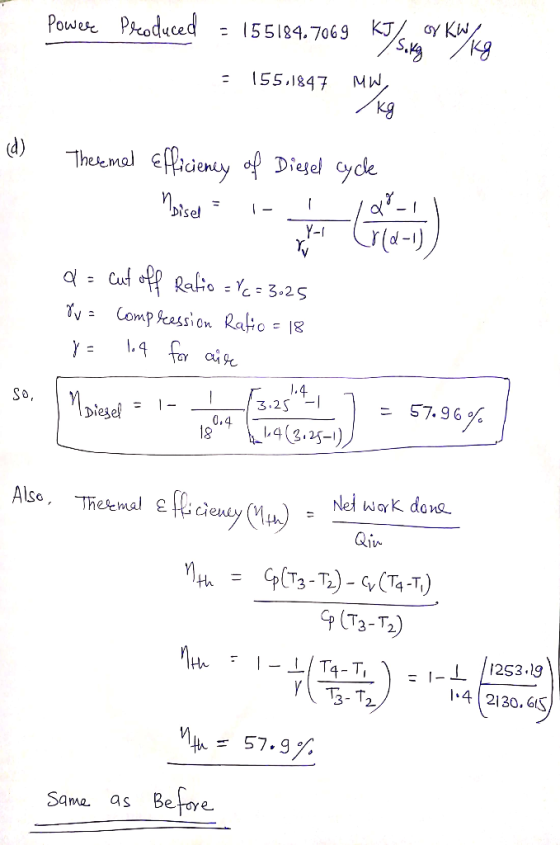

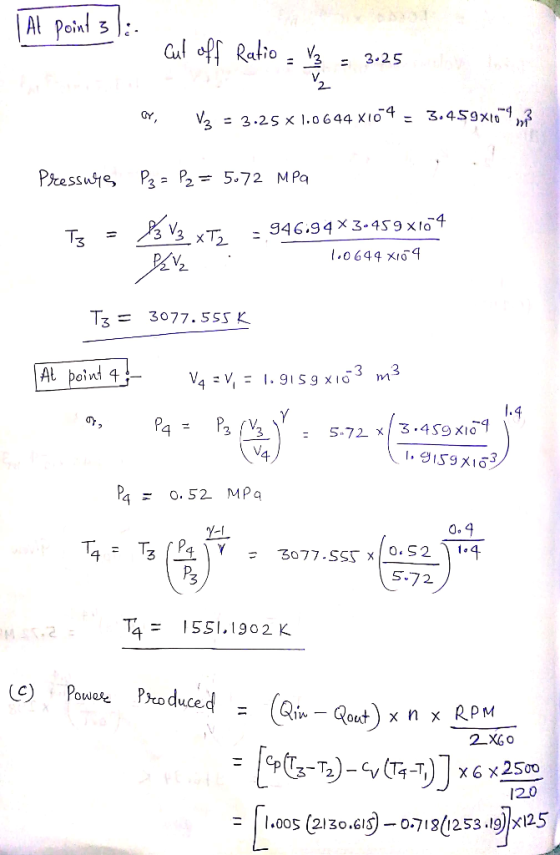

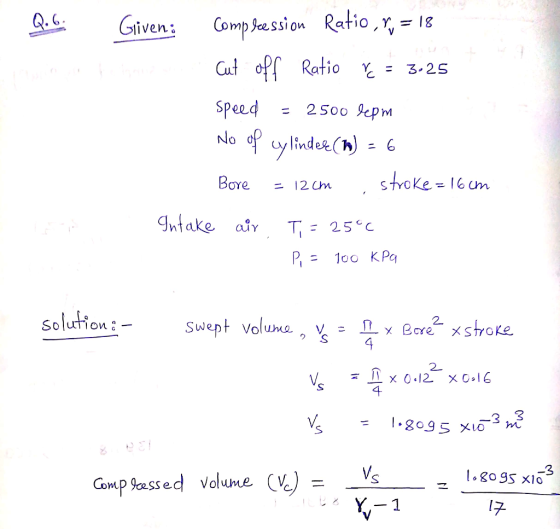

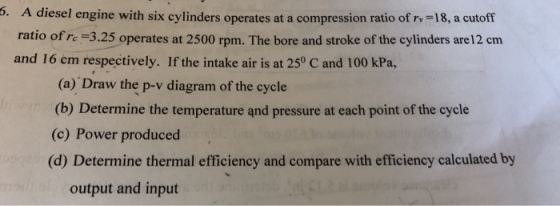

5. A diesel engine with six cylinders operates at a compression ratio of rv-18, a cutoff...
A four-stroke 2.0 Litre compression ignition engine operates on a Diesel cycle with a compression ratio...
A four-stroke 2.0 Litre compression ignition engine operates on a Diesel cycle with a compression ratio of 20 and a cut-off ratio of 1.8. Air is at 30°C and 100 kPa at the beginning of the compression process. It may be assumed that for the air, the specific heat, Cp and gas constant, R are 1.005 and 0.287 kJ/kg.K, respectively. Calculate: the temperature (K) of the air at the end of the following processes: (i) (a) compression (ii) combustion, (ii...
3. A diesel engine operates with a compression ratio of 20 and a cutoff ratio of...
3. A diesel engine operates with a compression ratio of 20 and a cutoff ratio of 2. Air enters the engine at 80°F and 14.7 psi. Assume an Air-Standard analysis in the calculations to follow. (a) (10 points) Find the conversion efficiency of the engine. (b) (10 points) Find the specific net work of each cycle in BTU/lbm (c) (5 points) Find the volume of the cylinder if 0.03 Ibm of air is drawn in each cycle at bottom dead...
Α 4-stroke spark-ignition engine has a compression ratio of 10 and operates on the ideal constant...
Α 4-stroke spark-ignition engine has a compression ratio of 10 and operates on the ideal constant volume cycle with intake pressure of 50 kPa (throttled) and intake temperature of 300 K. The exhaust pressure is 100 kPa. The heat input from combustion is 2500 kJ/kg and γ = 1.3 for the working fluid. a. Draw the p-V diagram of the full cycle and indicate all the processes. b. Calculate the residual gas fraction and the temperature decrease during the exhaust...
An ideal Diesel cycle has a maximum cycle temperature of 2000 deg C. The state of...
An ideal Diesel cycle has a maximum cycle temperature of 2000 deg C. The state of the air at the beginning of the compression is 95 kPa, and 15 deg C. This cycle is executed in a 4stroke, 8-cylinder engine with a bore of 10 cm and a piston stroke of 12 cm. The compression ratio is 20. Determine the cutoff ratio and the power produced by this engine when it is run at 2400 rpm. using variable specific heats
An automobile has a 3.2 liter, five cylinders, four stroke cycle diesel engine operating at 2400...
An automobile has a 3.2 liter, five cylinders, four stroke cycle diesel engine operating at 2400 rpm. Fuel injection occurs from 200 BTDC to 50 ATDC. The engine has a volumetric efficiency of 0.95 and operates with fuel equivalence ratio of 0.80. Light diesel fuel is used for the operation. The engine has a compression ratio of 18:1 and operates on an air-standard dual cycle. At the same speed, combustion starts at 7° BTDC and lasts for 42° of engine...
2. Analyze an Audi 3.0-liter TDI V6 Biturbo diesel engine using an air-standard Diesel cycle that...
2. Analyze an Audi 3.0-liter TDI V6 Biturbo diesel engine using an air-standard Diesel cycle that addresses the "real" effects of non-isentropic compression/expansion, air-fuel ratio, fuel heating value, incomplete combustion, exhaust residual, and heat loss. The engine is four-stroke, has six cylinders with a compression ratio of 16.0, and develops maximum power at 4250 rpm. Assume the following: the diesel fuel heating value is Quv 42,600 kJ/kg, the air-to-fuel ratio (AF) at maximum power is 25, and the combustion efficiency...
Only parts (e) and (f) is required Thanks. 2. An 8 cylinder 5.6L (total displacement) 4-stroke...
Only parts (e) and (f) is required
Thanks.
2. An 8 cylinder 5.6L (total displacement) 4-stroke diesel engine has a compression ratio of 19.3 and a cutoff ratio of 1.4. The temperature and pressure at the beginning of the compression stroke is 27°C and 100 kPa. The maximum pressure in the cycle is 7400 kPa. Assume variable properties (Table A-17). a. Draw the P-v diagram b. Determine the maximum temperature during the cycle c. Determine the amount of heat added...
An air-standard Diesel cycle has a compression ratio of 16 and a cutoff ratio of 2....
An air-standard Diesel cycle has a compression ratio of 16 and a cutoff ratio of 2. At the beginning of the com pression process, air is at 95 kPa and 27℃ Accounting for the variation of specific heats with temperature, determine (a) the temperature after the heat-addition process, (b) the thermal efficiency, and (c) the mean effective pressure
Consider a cold air standard Otto cycle for a 4-stroke engine with four cylinders. The compression...
Consider a cold air standard Otto cycle for a 4-stroke engine with four cylinders. The compression ratio is 9. At the beginning of the compression the air in each cylinder is at 95 kPa, 5 C and occupies a volume of 555 cm^3. During the heat addition process the pressure triples. Determine the efficiency of the cycle and the net power output (per kg of air). If the engine is running at 2800 RPM determine the power output in horsepower....
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temp...
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temperature is 1116°C. Accounting for variable specific heats, determine: (a) the heat addition per cycle in kJ. Ans: 3.368 kJ (b) the net work per cycle in kJ. Ans: 1.907 kJ (c) the mean effective pressure in kPa. Ans: 460.6 kPa (d) the...
A four-stroke 2.0 Litre compression ignition engine operates on a Diesel cycle with a compression ratio of 20 and a cut-off ratio of 1.8. Air is at 30°C and 100 kPa at the beginning of the compression process. It may be assumed that for the air, the specific heat, Cp and gas constant, R are 1.005 and 0.287 kJ/kg.K, respectively. Calculate: the temperature (K) of the air at the end of the following processes: (i) (a) compression (ii) combustion, (ii...
3. A diesel engine operates with a compression ratio of 20 and a cutoff ratio of 2. Air enters the engine at 80°F and 14.7 psi. Assume an Air-Standard analysis in the calculations to follow. (a) (10 points) Find the conversion efficiency of the engine. (b) (10 points) Find the specific net work of each cycle in BTU/lbm (c) (5 points) Find the volume of the cylinder if 0.03 Ibm of air is drawn in each cycle at bottom dead...
2. Analyze an Audi 3.0-liter TDI V6 Biturbo diesel engine using an air-standard Diesel cycle that addresses the "real" effects of non-isentropic compression/expansion, air-fuel ratio, fuel heating value, incomplete combustion, exhaust residual, and heat loss. The engine is four-stroke, has six cylinders with a compression ratio of 16.0, and develops maximum power at 4250 rpm. Assume the following: the diesel fuel heating value is Quv 42,600 kJ/kg, the air-to-fuel ratio (AF) at maximum power is 25, and the combustion efficiency...
Only parts (e) and (f) is required
Thanks.
2. An 8 cylinder 5.6L (total displacement) 4-stroke diesel engine has a compression ratio of 19.3 and a cutoff ratio of 1.4. The temperature and pressure at the beginning of the compression stroke is 27°C and 100 kPa. The maximum pressure in the cycle is 7400 kPa. Assume variable properties (Table A-17). a. Draw the P-v diagram b. Determine the maximum temperature during the cycle c. Determine the amount of heat added...
An air-standard Diesel cycle has a compression ratio of 16 and a cutoff ratio of 2. At the beginning of the com pression process, air is at 95 kPa and 27℃ Accounting for the variation of specific heats with temperature, determine (a) the temperature after the heat-addition process, (b) the thermal efficiency, and (c) the mean effective pressure
4. A4.6 L spark ignition engine operates on the ideal Otto cycle with a compression ratio of 10. At the beginning of the compression process the air is at 107 kPa and 21 C. The maximum cycle temperature is 1116°C. Accounting for variable specific heats, determine: (a) the heat addition per cycle in kJ. Ans: 3.368 kJ (b) the net work per cycle in kJ. Ans: 1.907 kJ (c) the mean effective pressure in kPa. Ans: 460.6 kPa (d) the...
