Use line notation to represent the electrochemical cells for each of the following overall redox reactions.

2Ag+(aq)+Pb(s)→2Ag(s)+Pb2+(aq)
2ClO2(g)+2I−(aq)→2ClO−2(aq)+I2(s)
O2(g)+4H+(aq)+2Zn(s)→2H2O(l)+2Zn2+(aq)

please help! thank you!!

science chemistry

Answer 1

Answer #1

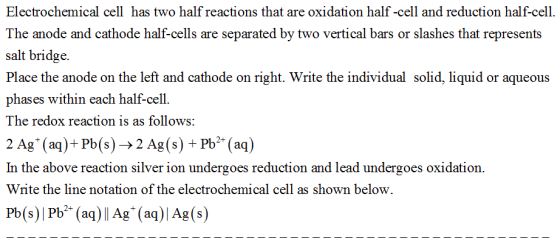

Electrochemical cell has two half reactions that are oxidation half-cell and reduction half-cell. The anode and cathode half-

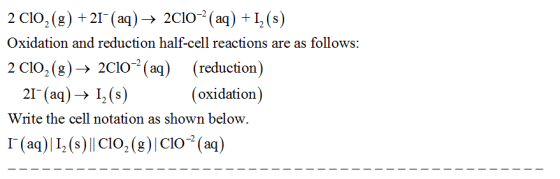

2 CIO,(g) +21-(aq)-> 2C10-2 (aq) +12(s) Oxidation and reduction half-cell reactions are as follows 2 clo2(g)→2C10% (aq) (redu

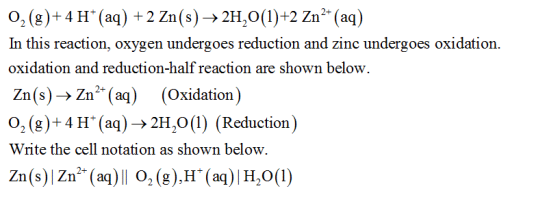

02 (g)+4H(aq) + 2 Zn(s) → 2H2O(l)+2 Zn(aq) In this reaction, oxygen undergoes reduction and zine undergoes oxidation. oxida

Answer 2
