Problem: A wheel consists of a disk of outer radius R = 1.6 m, with a...

Question

Question

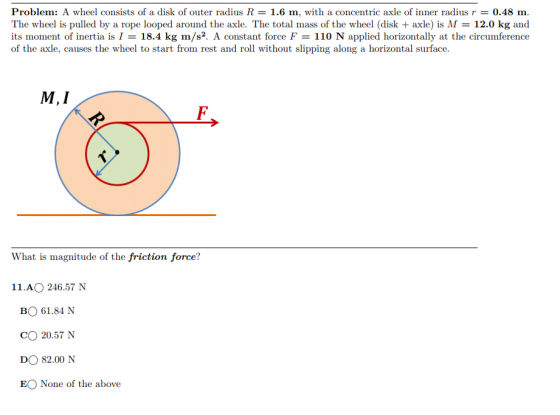

Problem: A wheel consists of a disk of outer radius R = 1.6 m, with a concentric axle of inner radius r = 0.48 m. The wheel i

science physics

Answer 1

Answer #1

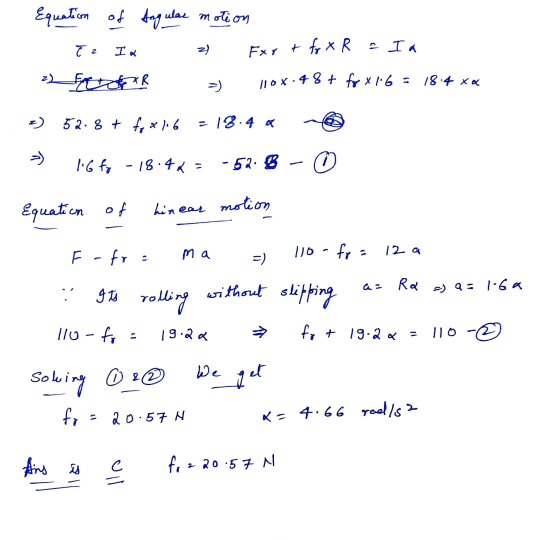

Equation - Tz 22 of Angular motion IX 2) R = Fart for XR - Ia 110x.48 + for x 16 = 18.4 x x 2) 52.87 f, *).6 = 18.40 3) 16 f7

Answer 2
