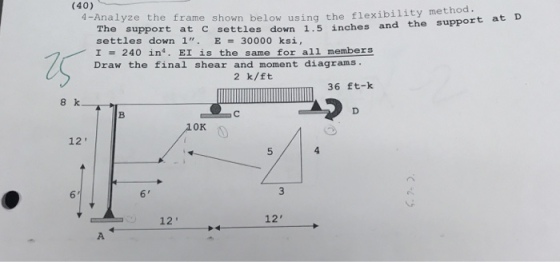

(40) the flexibility method down 1.5 inches and the support at D 4-Analyze the frame shown...

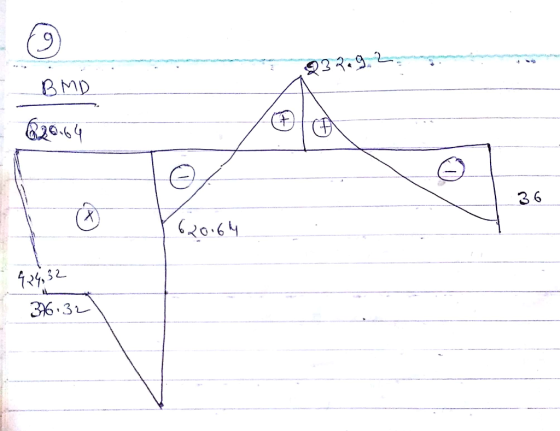

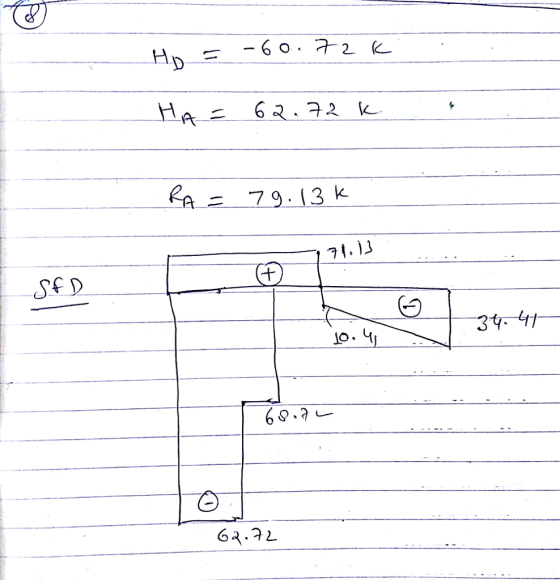

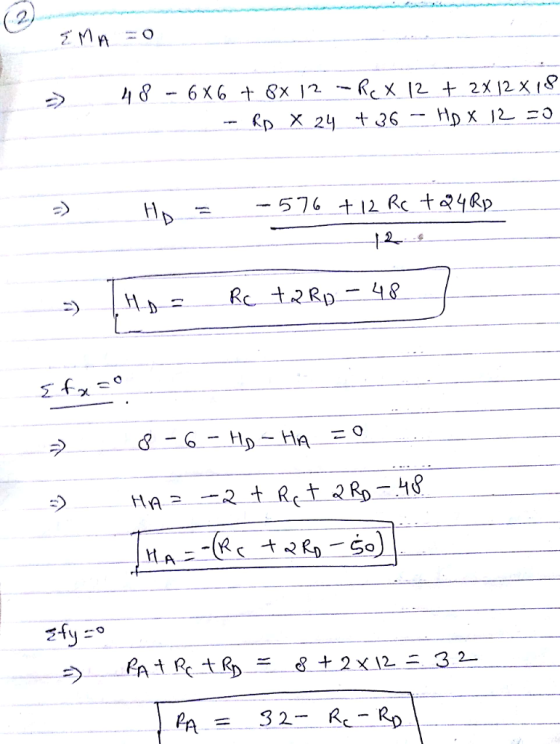

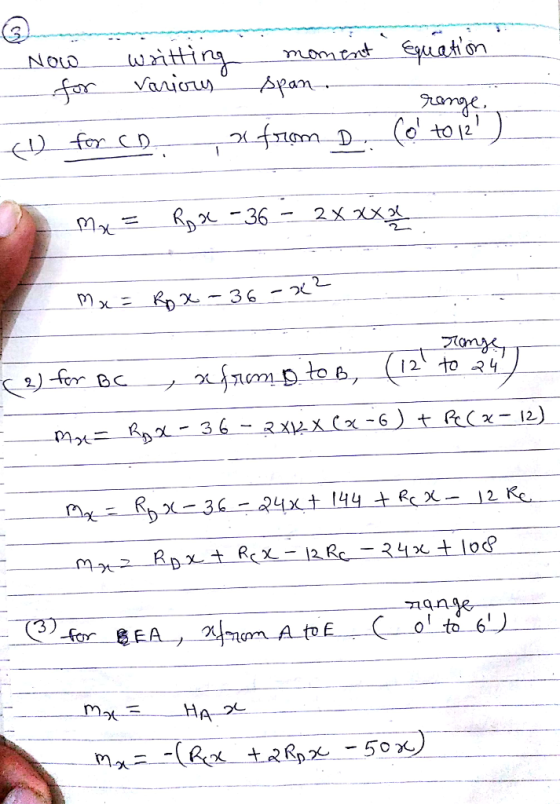

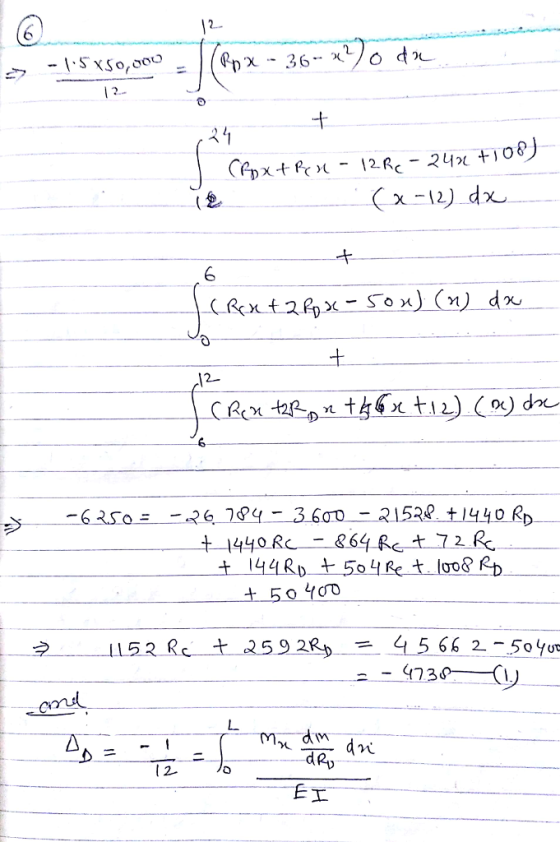

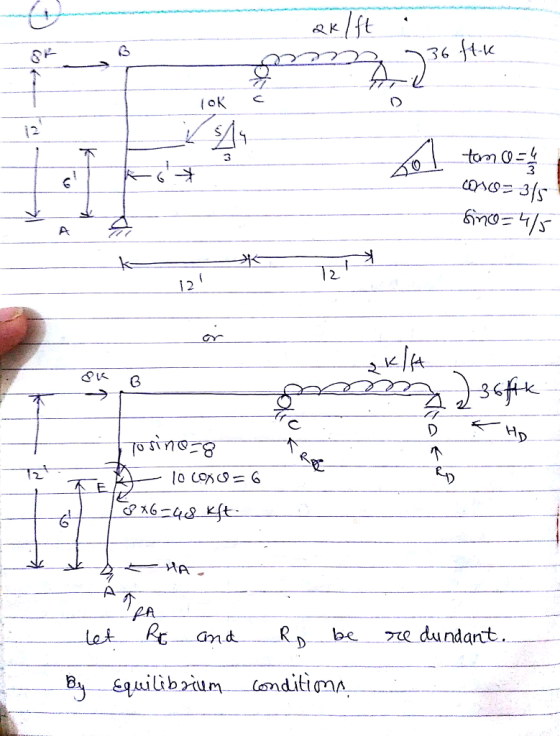

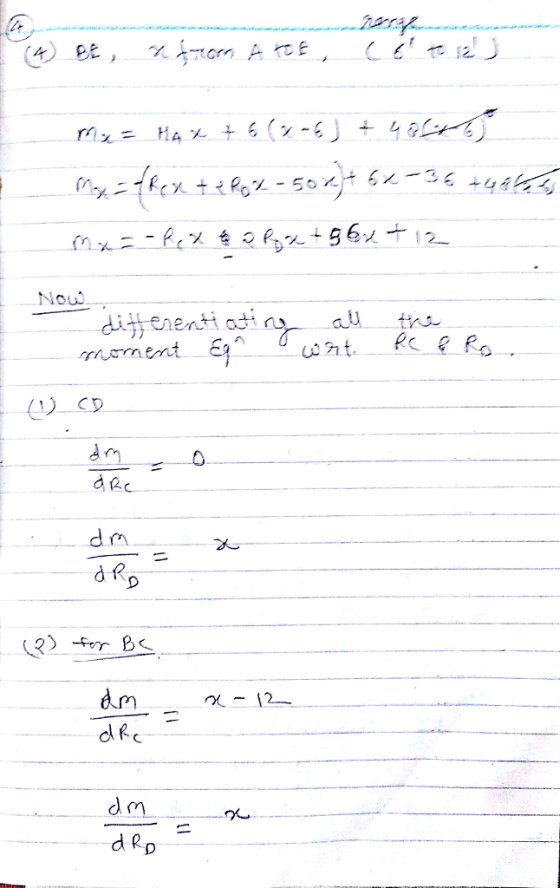

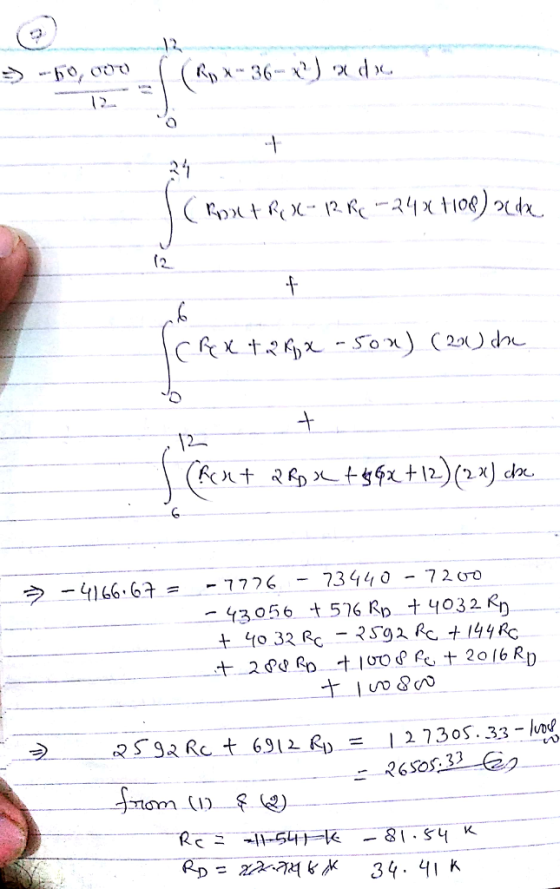

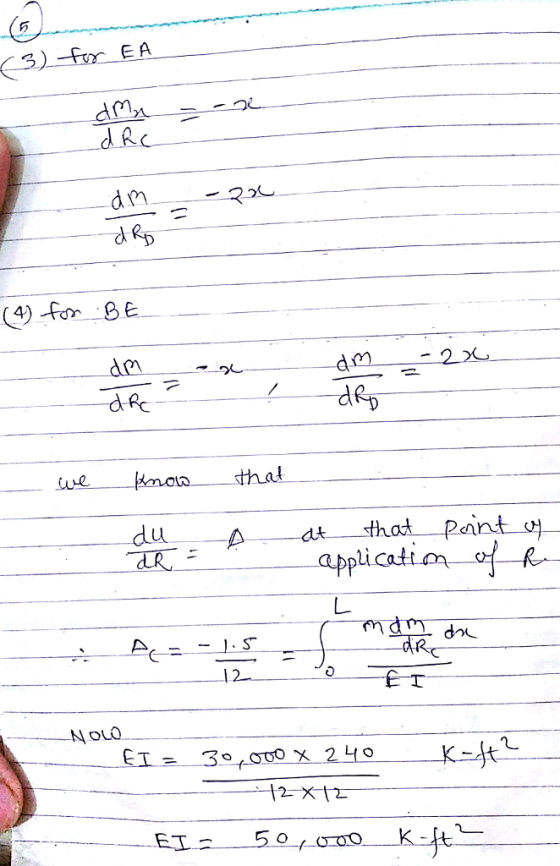

Analyze the Frames shown below. Draw the shear and moment
diagrams and sketch the approximate deflected shape
Settlement at A = 1” and at C = .5” E = 30000 kis, I = 240
in4
2k/ft 8 k B EI EI 36 k-ft С 12'1 EI A 12' 8'
draw the shear and bending moment diagrams also please
