Homework Answers
Add Answer to:

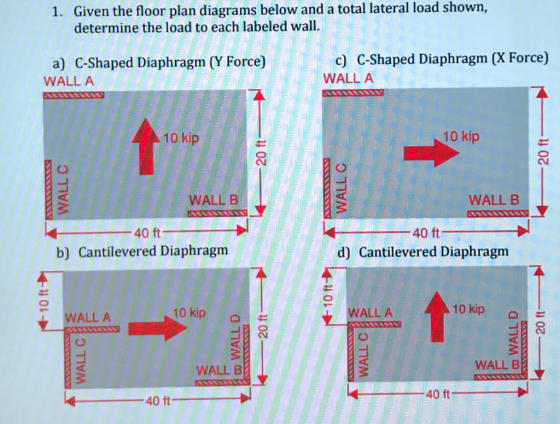

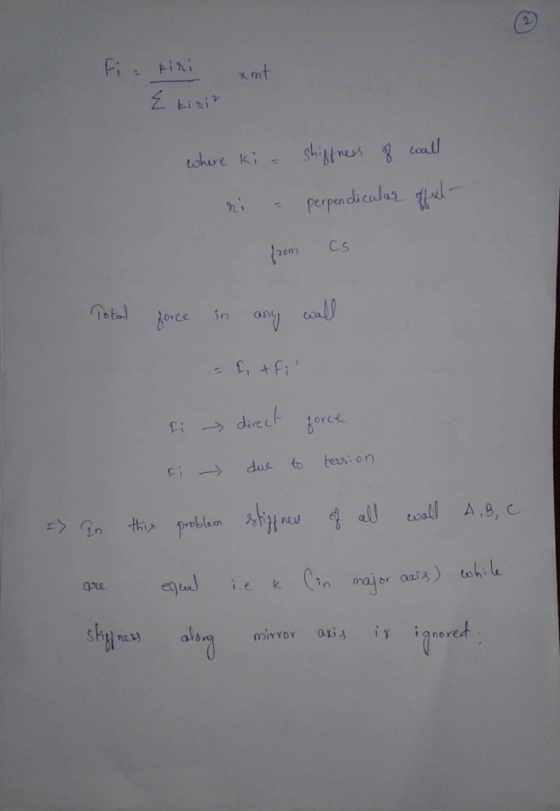

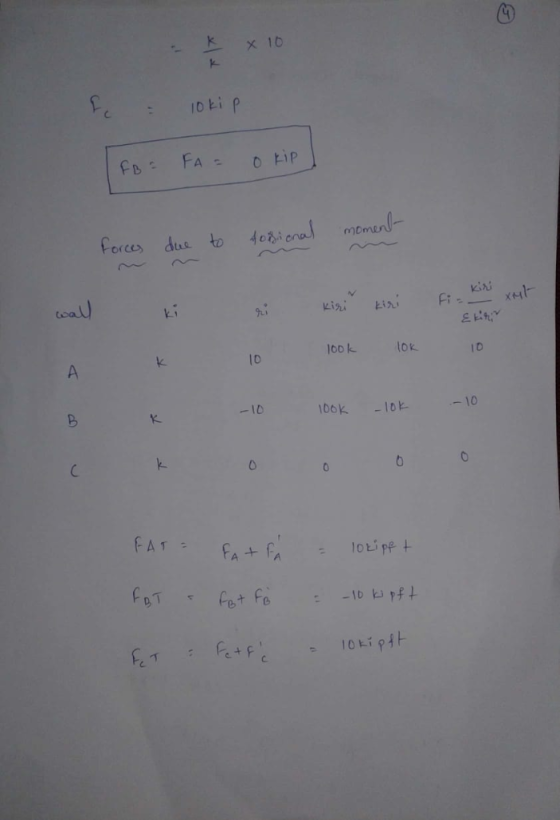

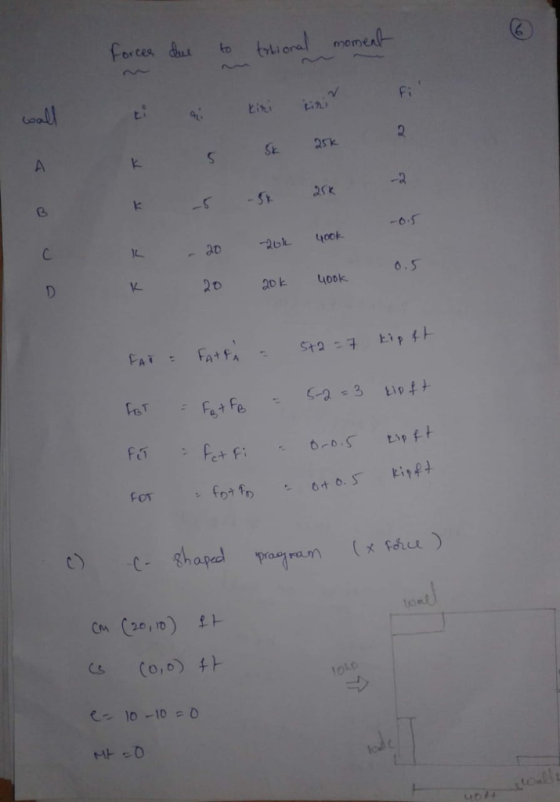

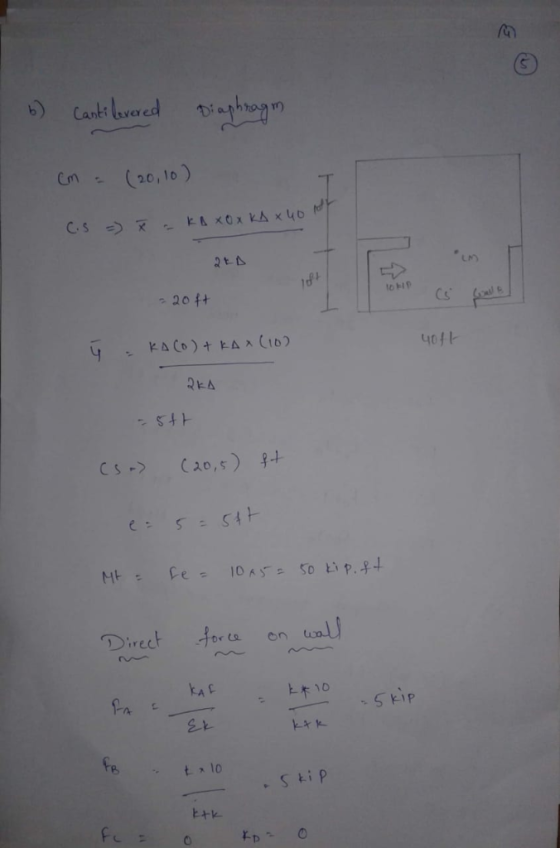

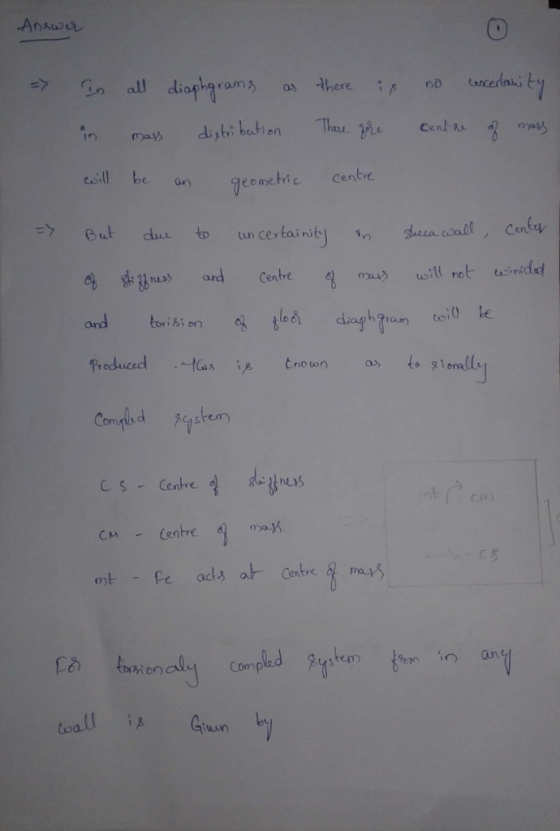

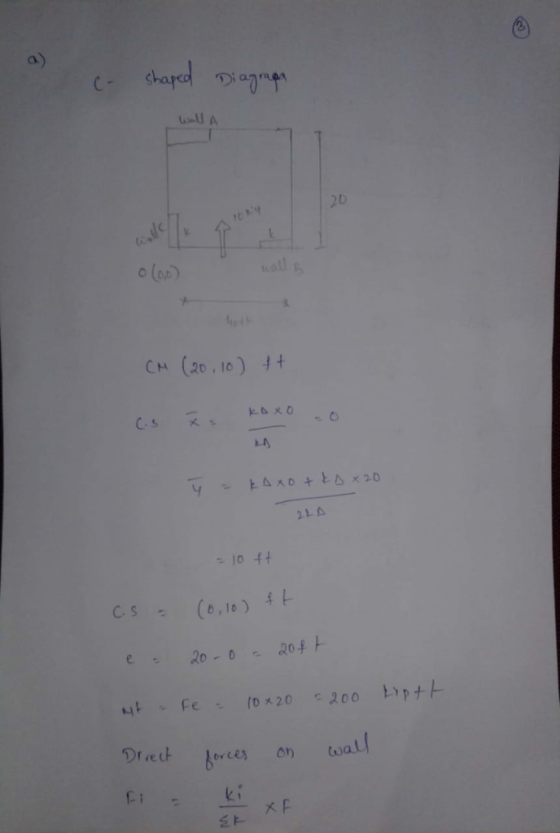

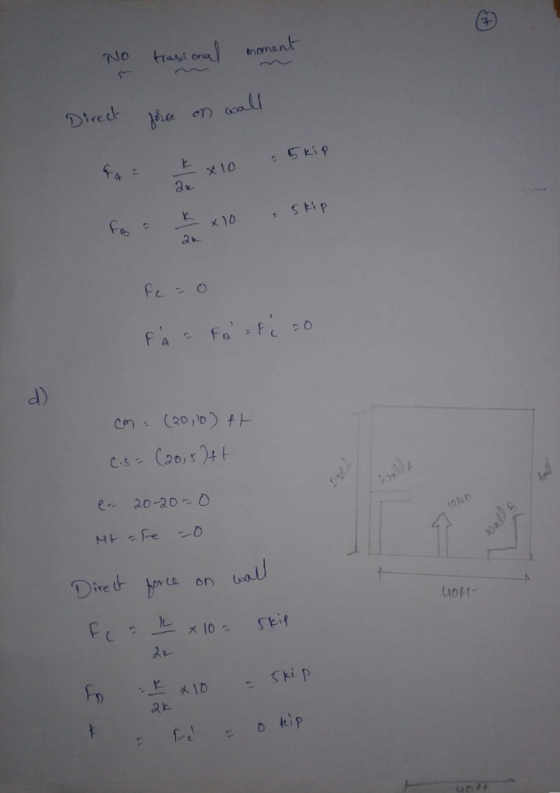

Given the floor plan diagrams below and a total lateral load shown, determine the load to...
The plan view of a typical floor of a four-story heavy storage facility is shown below. The floor and roof live load is...
The plan view of a typical floor of a four-story heavy storage facility is shown below. The floor and roof live load is 250 psf, and the dead load on all foors and the roof consists of the structure self-weight plus 10 psf for utilities. W 12:96 beams are spaced at 12 ft; w 18x106 reinforced one-way concrete floor/roof slab is 8" thick, each story is 12' high, and the reinforced concrete columns have a 14" x 14" cross-section girders...
Required information Consider the floor plan shown in the figure Given: X-30 ft. 66.67'40 C4 A- I...
Required information Consider the floor plan shown in the figure Given: X-30 ft. 66.67'40 C4 A- I B2 G1 B3 2@10'20 C2 G4 G1 G3 58'40 C3 C1 40 Compute the tributary area for floor beam B1 by simplified load distribution and actual load distribution The tributary area (AT) for floor beam B1by simplified load distribution is The tributary area (AT for floor beam B1 by actual load distribution is ft 2 2 ft
Required information Consider the floor plan...
The floor system of school classroom is shown below. Determine the total load acting on all...
The floor system of school classroom is shown below. Determine the total load acting on all beams, girders, and columns. STEEL COLUMN W16X100 GIRDER 4 INCH CONCRETE SLAB W8X40 BEAM 12 ft 6 ft
Design a W-shape floor beam for the intermediate beam marked A on the floor plan shown...
Design a W-shape floor beam for the intermediate beam marked A on the floor plan shown below. The beam is loaded uniformly by the floor with a live load of 70psf and a dead load in addition to beam self-weight of 60psf. The beam has a full lateral support provided by the floor deck. Use A992 steel (50ksi) and provisions of LRFD 壬 26 ft L-trib
2) The beam shown below is part of a floor system and must support a 4-in...
2) The beam shown below is part of a floor system and must support a 4-in reinforced concrete slab, terrazzo flooring (1-in), and a channel suspended ceiling system with acoustical fiber tiles. The beam has a tributary width of 6 ft and must also support an 80 psf construction live load. 27"-0" a) Draw the total load diagram b) find the reactions at the supports A and B c) Draw the shear and moment diagrams d) If during construction an...
1. Your team is designing the lateral load-resisting system for a two-story office building. To do...
1. Your team is designing the lateral load-resisting system for a two-story office building. To do so, you need to determine the wind loads on the lateral load-resisting elements. At this preliminary stage, consider the floor and roof diaphragms to be flexible, and consider the wind pressure to be uniform. Note that the south and east walls have been cut away so that we can see the system supporting them. 1. When the wind blows from the south, it creates...
2.1 Given that the floor shown in Figure 2 supports a total load of 480 psf...
2.1 Given that the floor shown in Figure 2 supports a total load of 480 psf and the O.W. of all beams and girder weigh 80 plf, determine the free-body, shear, and moment diagrams for the indicated girder. Make sure that locations and magnitudes for maximum shears and moments are indicated. 36 8,18, 36' 10 10 10 Open Open 10 10° 10
help please A square footing is founded at 3-ft depth below ground surface as shown in...
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
Problem 1: Given: The beam with a concentrated load shown below. a 10 ft, b 15 ft. Find: Draw the internal shear fo...
Problem 1: Given: The beam with a concentrated load shown below. a 10 ft, b 15 ft. Find: Draw the internal shear force and bending moment diagrams. Use the standard sign convention. Draw clear, complete and accurate Free Body Diagrams! 5 k
Problem 1: Given: The beam with a concentrated load shown below. a 10 ft, b 15 ft. Find: Draw the internal shear force and bending moment diagrams. Use the standard sign convention. Draw clear, complete and accurate Free...
The plan view of a typical floor of a four-story heavy storage facility is shown below. The floor and roof live load is 250 psf, and the dead load on all foors and the roof consists of the structure self-weight plus 10 psf for utilities. W 12:96 beams are spaced at 12 ft; w 18x106 reinforced one-way concrete floor/roof slab is 8" thick, each story is 12' high, and the reinforced concrete columns have a 14" x 14" cross-section girders...
Required information Consider the floor plan shown in the figure Given: X-30 ft. 66.67'40 C4 A- I B2 G1 B3 2@10'20 C2 G4 G1 G3 58'40 C3 C1 40 Compute the tributary area for floor beam B1 by simplified load distribution and actual load distribution The tributary area (AT) for floor beam B1by simplified load distribution is The tributary area (AT for floor beam B1 by actual load distribution is ft 2 2 ft
Required information Consider the floor plan...
The floor system of school classroom is shown below. Determine the total load acting on all beams, girders, and columns. STEEL COLUMN W16X100 GIRDER 4 INCH CONCRETE SLAB W8X40 BEAM 12 ft 6 ft
Design a W-shape floor beam for the intermediate beam marked A on the floor plan shown below. The beam is loaded uniformly by the floor with a live load of 70psf and a dead load in addition to beam self-weight of 60psf. The beam has a full lateral support provided by the floor deck. Use A992 steel (50ksi) and provisions of LRFD 壬 26 ft L-trib
2) The beam shown below is part of a floor system and must support a 4-in reinforced concrete slab, terrazzo flooring (1-in), and a channel suspended ceiling system with acoustical fiber tiles. The beam has a tributary width of 6 ft and must also support an 80 psf construction live load. 27"-0" a) Draw the total load diagram b) find the reactions at the supports A and B c) Draw the shear and moment diagrams d) If during construction an...
1. Your team is designing the lateral load-resisting system for a two-story office building. To do so, you need to determine the wind loads on the lateral load-resisting elements. At this preliminary stage, consider the floor and roof diaphragms to be flexible, and consider the wind pressure to be uniform. Note that the south and east walls have been cut away so that we can see the system supporting them. 1. When the wind blows from the south, it creates...
2.1 Given that the floor shown in Figure 2 supports a total load of 480 psf and the O.W. of all beams and girder weigh 80 plf, determine the free-body, shear, and moment diagrams for the indicated girder. Make sure that locations and magnitudes for maximum shears and moments are indicated. 36 8,18, 36' 10 10 10 Open Open 10 10° 10
help please
A square footing is founded at 3-ft depth below ground surface as shown in Fig1, The factored axial load acting on the square footing is 140 kips, Determine the size of the footing (B x B) if the Factor of Safety (F.S.) is 3.0. Ground surface ЗА B-? Silty Sand Fig.1 A 68-ft long pre-stressed concrete pile with square cross section (14 inch) is driven into the soil profile shown in Fig. 2. Compute the ultimate compressive load...
Problem 1: Given: The beam with a concentrated load shown below. a 10 ft, b 15 ft. Find: Draw the internal shear force and bending moment diagrams. Use the standard sign convention. Draw clear, complete and accurate Free Body Diagrams! 5 k
Problem 1: Given: The beam with a concentrated load shown below. a 10 ft, b 15 ft. Find: Draw the internal shear force and bending moment diagrams. Use the standard sign convention. Draw clear, complete and accurate Free...
