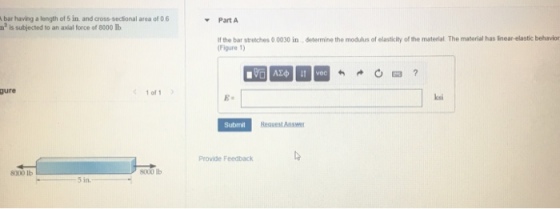

bar having a length of 5 in and cross-secional area of 0 6 n is subjected...

Question

Question

engineering Mechanical-Engineering

Answer 1

Answer #1

Answer 2

Similar Homework Help Questions

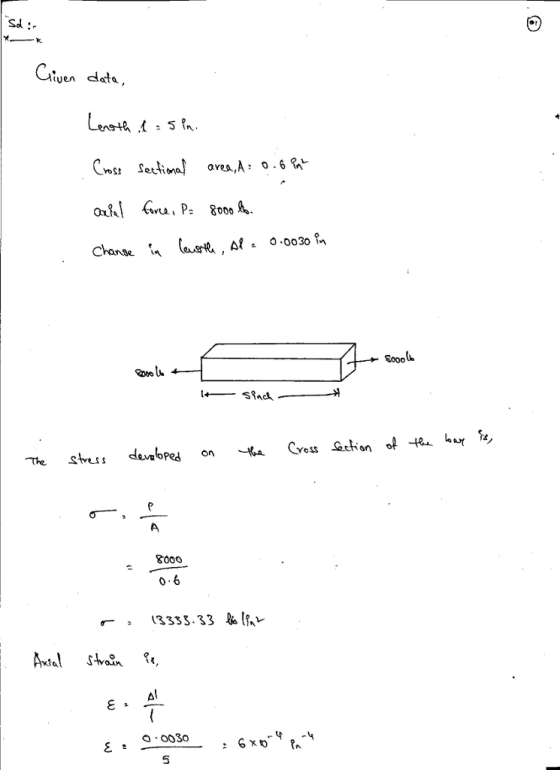

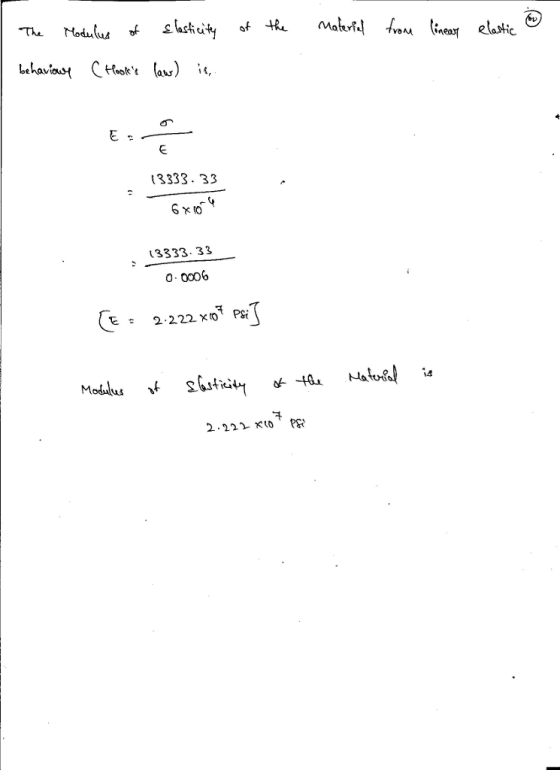

Problem 3.13 A bar having a length of 5 in. and cross-sectional area of 0.8 in...

Problem 3.13 A bar having a length of 5 in. and cross-sectional area of 0.8 in is subjected to an axial force of 8000 lb. Figure 1 of 1 > 8000 lb 8000 lb 5 in.
A bar of unknown material is subjected to an axial tension load P. The bar, having...

A bar of unknown material is subjected to an axial tension load P. The bar, having initial dimensions L = 500 mm and a = b = 25 mm, is observed to elongate by 20 mm. Further, it is observed that the volume of the bar increases by 600 mm3. The bulk modulus of the material is measured at 20,000 MPa. Assuming that the material is isotropic, homogeneous and linear elastic, determine the magnitude of the load P in [kN]...
3. Bar AC is rectangular in cross-section and has a cross-sectional area of 0.5 in2. The...

3. Bar AC is rectangular in cross-section and has a cross-sectional area of 0.5 in2. The stress-strain behavior of the material is shown below. Construct the (internal) axial force diagram for Bar AC. Then compute / provide the total deformation in the bar (between A and C) B 8 kip C 5 kip 5 ft a(ksi) 40 20 0.001 0.021 -e (in/in.)

2.3-5 A vertical bar is loaded with axial loads at points B, C, and D, as...

2.3-5 A vertical bar is loaded with axial loads at points B, C, and D, as shown in the figure. The bar is made of steel with a modulus of elasticity E = 29,000 ksi. The bar has a cross-sectional area of 8.24 in?. Calculate the displacements at points B, C, and D. Ignore the weight of the bar. Pb = 50 lb L1 = 20 in. L2= 20 in. Pc = 100 lb L3 = 40 in. Pp =...
3. A steel bar having a diameter of 1 inch is being loaded as shown below....

3. A steel bar having a diameter of 1 inch is being loaded as shown below. Assume the width and diameters of the collars are negligible. The steel's elastic modulus E = 29,000 ksi. 3000 lb 9000 lb --8000 lb - 4000 lb - 36 in. — 36 in 36 in. (a) (4 points) the maximum axial stress within the bar (also indicate it is within which section and if it's tension or compression) (6) (3 points) determine the total...
The bar shown has a cross-sectional area of 0.001 m² and a modulus of elasticity of...

The bar shown has a cross-sectional area of 0.001 m² and a modulus of elasticity of 100 GPa. It is subjected to a uniformly distributed axial force q= 50 kN/m pointed to the left. An external axial force F= 20 kN, pointed to the left, is applied at the middle of the bar, x=L/2. a. What is the axial force P in the bar as a function of x? b. What is the bar's total change in length? ttttttttta x...

A wood bar is subjected to tensile force of 60 kips at two ends. It is 5 ft long, and has the rectangular Cross section which height is 4 in, and width is 2 in.

(a) A wood bar is subjected to tensile force of 60 kips at two ends. It is 5 ft long, and has the rectangular Cross section which height is 4 in, and width is 2 in. The modulus of elasticity is 1.9×103ksi. Determine the total clastic deformation of the wood bar. Answer in the unit of inches, to 0.001. Note: 1 ft = 12 in., 1 ksi = 1000 psi. (b) If this wood bar has a hole with a diameter...
FIGURE P3-19 aSection The brass bar shown in Fig. P3-20, which has a uniform cross-sectional area...

FIGURE P3-19 aSection The brass bar shown in Fig. P3-20, which has a uniform cross-sectional area of 2 in.2, is subjected to the forces shown. Determine the total deformation of the bar. The modulus of elasticity of brass is E = 17 x 102 ksi. si 40 kips 30 kips 30 kips CI 2ft . (4ft -tl 3 ft FIGURE P3-20
1. A steel bar with solid circular cross section has a diameter d= 2.5 in., a...

1. A steel bar with solid circular cross section has a diameter d= 2.5 in., a length L = 60 in. and a shear modulus of elasticity G = 1 1.5 × 106 psi. The bar is subjected to torque T- 350 lb-ft as shown. (a) Find the angle of twist between the d 2.5 in (b) Find the maximum shear stress in the (c) Find the shear stress ta at a distance (d) Find the shear stress Tcenter at...

no need for ms solids 3 Statically indeterminate end-to-end bars. Given: The two-bar structure is fixed...

no need for ms solids 3 Statically indeterminate end-to-end bars. Given: The two-bar structure is fixed at both ends and a 0.01 in. gap exists between the two bars, as shown in Figure 3. Bar l is made of Aluminum 2014-T6, the elastic modulus isEal umum. 6 ksi, the linear coefficient of thermal expansions is αalun in 12.8(10 6) F, and cross-section area of Bar l is Al-05 in. Bars 2 is made of Steel-A36 Structural with Estss 29000 ksi,...
