Question

add/ remove any methods to the program. please post new code and output

Min Heap: public class MinHeap private int[] Heap; private int size; private int maxsize; private static final int FRONT = 1; public MinHeap(int maxsize) this.maxsize = maxsize; this.size = 0; Heap = new int[this.maxsize + 1]; Heap[0] = Integer.MIN_VALUE; private int parent(int pos) { return pos/2; private int leftChild(int pos) { return (2 * pos); private int rightChild(int pos) { return (2 * pos) + 1; } private boolean is Leaf(int pos) { if (pos >= (size / 2) && pos <= size) return true; return false;

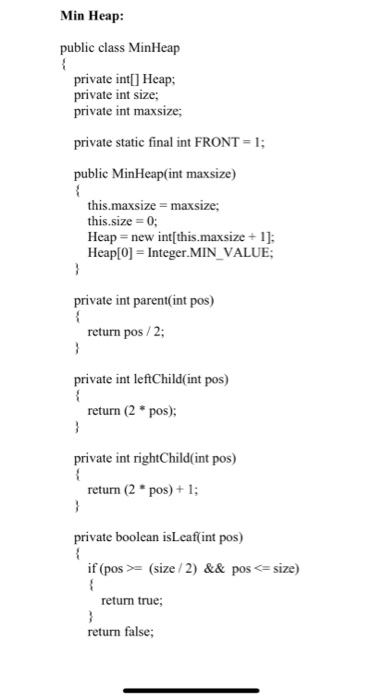

Min Heap:

public class MinHeap {

private int[] Heap; private int size; private int maxsize;

private static final int FRONT = 1;

public MinHeap(int maxsize) {

this.maxsize = maxsize;

this.size = 0;

Heap = new int[this.maxsize + 1]; Heap[0] = Integer.MIN_VALUE;

}

private int parent(int pos) {

return pos / 2; }

private int leftChild(int pos) {

return (2 * pos); }

private int rightChild(int pos) {

return (2 * pos) + 1; }

private boolean isLeaf(int pos) {

if (pos >= (size / 2) && pos <= size) {

return true; }

return false;

}

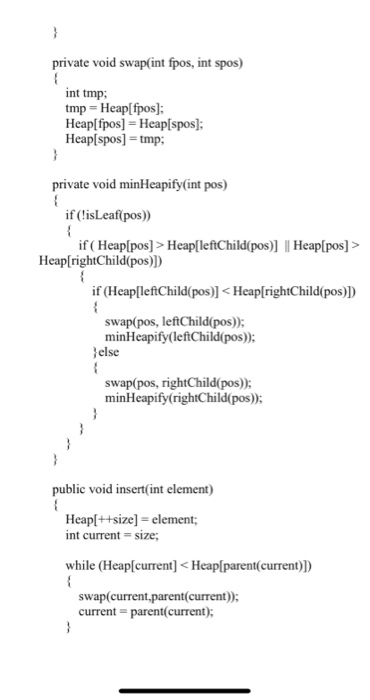

private void swap(int fpos, int spos) {

int tmp;

tmp = Heap[fpos]; Heap[fpos] = Heap[spos]; Heap[spos] = tmp;

}

private void minHeapify(int pos) {

if (!isLeaf(pos)) {

if ( Heap[pos] > Heap[leftChild(pos)] || Heap[pos] > Heap[rightChild(pos)])

{

if (Heap[leftChild(pos)] < Heap[rightChild(pos)]) {

swap(pos, leftChild(pos));

minHeapify(leftChild(pos)); }else

{

swap(pos, rightChild(pos)); minHeapify(rightChild(pos));

} }

} }

public void insert(int element) {

Heap[++size] = element; int current = size;

while (Heap[current] < Heap[parent(current)]) {

swap(current,parent(current));

current = parent(current); }

}

public void print() {

for (int i = 1; i <= size / 2; i++ ) {

System.out.print(" PARENT : " + Heap[i] + " LEFT CHILD : " + Heap[2*i]

+ " RIGHT CHILD :" + Heap[2 * i + 1]); System.out.println();

} }

public void minHeap() {

for (int pos = (size / 2); pos >= 1 ; pos--) {

minHeapify(pos); }

}

public int remove() {

int popped = Heap[FRONT]; Heap[FRONT] = Heap[size--]; minHeapify(FRONT);

return popped;

}

public static void main(String...arg) {

System.out.println("The Min Heap is "); MinHeap minHeap = new MinHeap(15); minHeap.insert(5);

minHeap.insert(3);

minHeap.insert(17); minHeap.insert(10); minHeap.insert(84); minHeap.insert(19); minHeap.insert(6);

minHeap.insert(22); minHeap.insert(9); minHeap.minHeap();

minHeap.print();

System.out.println("The Min val is " + minHeap.remove()); }

}

Answer 1

    public class MinHeap

    {

        private int[] Heap;

        private int size;

        private int maxsize;



        private static final int FRONT = 1;



        public MinHeap(int maxsize)

        {

            this.maxsize = maxsize;

            this.size = 0;

            Heap = new int[this.maxsize + 1];

            Heap[0] = Integer.MIN_VALUE;

        }



        private int parent(int pos)

        {

            return pos / 2;

        }



        private int leftChild(int pos)

        {

            return (2 * pos);

        }



        private int rightChild(int pos)

        {

            return (2 * pos) + 1;

        }



        private boolean isLeaf(int pos)

        {

            if (pos >= (size / 2) && pos <= size)

            {

                return true;

            }

            return false;

        }



        private void swap(int fpos, int spos)

        {

            int tmp;

            tmp = Heap[fpos];

            Heap[fpos] = Heap[spos];

            Heap[spos] = tmp;

        }



        private void minHeapify(int pos)

        {

            if (!isLeaf(pos))

            {

                if ( Heap[pos] > Heap[leftChild(pos)] || Heap[pos] > Heap[rightChild(pos)])

                {

                    if (Heap[leftChild(pos)] < Heap[rightChild(pos)])

                    {

                        swap(pos, leftChild(pos));

                        minHeapify(leftChild(pos));

                    }else

                    {

                        swap(pos, rightChild(pos));

                        minHeapify(rightChild(pos));

                    }

                }

            }

        }



        public void insert(int element)

        {

            Heap[++size] = element;

            int current = size;



            while (Heap[current] < Heap[parent(current)])

            {

                swap(current,parent(current));

                current = parent(current);

            }

        }



        public void print()

        {

            for (int i = 1; i <= size / 2; i++ )

            {

                System.out.print(" PARENT : " + Heap[i] + " LEFT CHILD : " + Heap[2*i]

                    + " RIGHT CHILD :" + Heap[2 * i + 1]);

                System.out.println();

            }

        }











        public static void main(String...arg)

        {

            System.out.println("The Min Heap is ");

            MinHeap minHeap = new MinHeap(15);

            minHeap.insert(5);

            minHeap.insert(3);

            minHeap.insert(17);

            minHeap.insert(10);

            minHeap.insert(84);

            minHeap.insert(19);

            minHeap.insert(6);

            minHeap.insert(22);

            minHeap.insert(9);



            minHeap.print();



        }

    }

Output :-

$javac MinHeap.java $java -Xmx128M - Xms 16M MinHeap The Min Heap is PARENT : 3 LEFT CHILD : 5 RIGHT CHILD : 6 PARENT : 5 LEFT CHILD : 9 RIGHT CHILD : 84 PARENT : 6 LEFT CHILD : 19 RIGHT CHILD : 17 PARENT : 9 LEFT CHILD : 22 RIGHT CHILD : 10

When deleting min heap function there is no change in the program.but deleting min value function value not displayed
