Homework Answers
We can change the line property by opening plot editor by
command 'plottools'
To customize objects in your graph, you can set their properties
using the Property Editor.

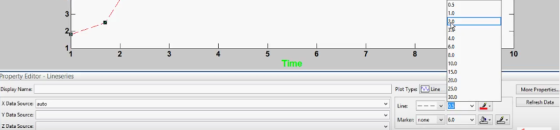

To change line width follow the below given image
and marker you can select from
select diamond shape, and then
set size from the drop down list beside it.
I hope this helps you solve your problem.
