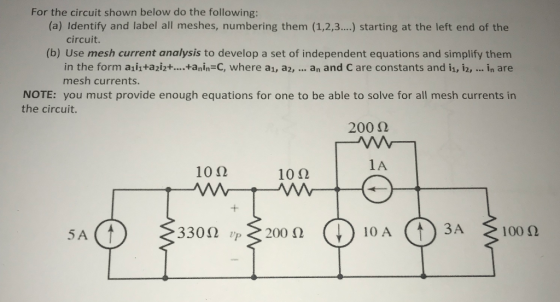

For the circuit shown below do the following:
a) Identify and label all meshes, numbering them (1,2,3...) starting at the left end of the circuit.
b) Use mesh current analysis to develop a set of independent equations and simplify them......
Homework Answers
Request Answer!
We need at least 10 more requests to produce the answer.
0 / 10 have requested this problem solution
The more requests, the faster the answer.
Add Answer to:
For the circuit shown below do the following:
a) Identify and label all meshes, numbering them...
Consider the circuit shown below. All resistances are in Ohms.
1a) Mesh AnalysisConsider the circuit shown below. All resistances are in Ohms. i) Write down the KVL in the super mesh based on the mesh currents (i1, i2 and i3) given on the circuit. Do not solve the equations. ii) Write down other equations in terms of mesh currents (i1, i2 and i3) arising from the circuit that will allow you to solve the circuit.
1. (12 marks) For the circuit in Fig. 1: a) Label all the node voltages and...
1. (12 marks) For the circuit in Fig. 1: a) Label all the node voltages and show and label all branch currents for mesh analysis if they are not already labelled. (2 marks) b) Calculate the currents using mesh analysis. Show your equations and solutions in a logical order. (6 marks) c) Calculate the power generated or absorbed by each element including the sources. Show that power is conserved in the circuit. (4 marks) 10 12 212 512 1 341...
please solve them all 2) For the circuit shown in Figure 1. Find the following: A....
please solve them all
2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
Learning Goal: To use the mesh-current method to analyze circuits containing resistors and independent voltage sources....
Learning Goal: To use the mesh-current method to analyze circuits containing resistors and independent voltage sources. The mesh-current method is a general technique for solving circuits. Fundamentally, it involves writing KVL equations around all meshes in a circuit. You should review KVL and the definition of a mesh before beginning. In this tutorial, you will use the mesh- current method to find the current through the 1 k2 resistor, io, and the voltage drop across the 5 k22 resistor, vo,...
1a) Mesh Analysis [ 5 marks ] Consider the circuit shown below. All resistances are in...
1a) Mesh Analysis [ 5 marks ] Consider the circuit shown below. All resistances are in Ohms. 8 v1 592 + + V1 422 7V2 3 Ω 5 V 2 Ω iz V2 + 622 10 22 i) Write down the KVL in the super mesh based on the mesh currents (ii, i2 and i3) given on the circuit. Do not solve the equations. [2 marks ] ii) Write down other equations in terms of mesh currents (ii, i2 and...
I need the equations please!! Given the circuit below: A. Find all loop currents and voltage...
I need the equations please!!
Given the circuit below: A. Find all loop currents and voltage drops using mesh current analysis and Cramer's rule by hand. B. Find all loop currents and voltage drops using mesh current analysis and Cramer's rule using Matlab. C. Find all loop currents and voltage drops using mesh current analysis and the MatLab command "linsolve" 2
Learning Goal: To use the mesh-current method to solve circuits containing resistors and both independent and...
Learning Goal: To use the mesh-current method to solve circuits containing resistors and both independent and dependent sources. The mesh-current method is a general technique for solving planar circuits. When the circuit contains a dependent source, that source will create a constraint and add an unknown to your system of equations. You must write a constraint equation for each dependent source, in addition to the KVL equations. Before beginning this tutorial, you should review the mesh-current method and the four...
2- Set the two independent power sources to Vsi 6V and Veo" 10 V and measure...
2- Set the two independent power sources to Vsi 6V and Veo" 10 V and measure their actual values using the DMM. Actual Values of power sources: 4.47 VS15.99 Vs- 3- Using the breadboard construct the circuit shown in Figure 4,1 (repeated below for convenience). Use the resistors measured in Step 1 (above) and the power sources Vsi- 6 V, and Vs2 -10 V. IR3 IRI RS. R5 R1 R3 Va V4 V2 V1 ww ww It 12 R4 R23...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1 ko Rz 4k sht 10v ☺ ş 4 kg (lc Ako su sos a. Write a complete set of node voltage equations; one for each node (A through E) b. Using the equations from part a, determine the node voltages VA, VB, Vc, Vo and Ve c. Using the node voltages from part b, determine Vyand ly. Problem 2 (20 points) Using the same...
Write a program in MATLAB to analyze the circuit shown below. The circuit contains of n...
Write a program in MATLAB to analyze the circuit shown below. The circuit contains of n capacitors, n-1 coils, two resistors (R1 and R2) and AC voltage source in the form of V-Vmcos(wt ). R1 C 1 The following requirements should be fulfilled 1. The minimum number of capacitors in 3 2. If the number of capacitors is n, the number of coils must be n-1. The user will be prompted to enter the correct number of coils if it...
1. (12 marks) For the circuit in Fig. 1: a) Label all the node voltages and show and label all branch currents for mesh analysis if they are not already labelled. (2 marks) b) Calculate the currents using mesh analysis. Show your equations and solutions in a logical order. (6 marks) c) Calculate the power generated or absorbed by each element including the sources. Show that power is conserved in the circuit. (4 marks) 10 12 212 512 1 341...
please solve them all
2) For the circuit shown in Figure 1. Find the following: A. How many independent loops are present in the circuit? B. How many nodes are present in the circuit? C. Write a KVL equation at every independent loop (mesh) in the circuit in terms of the indicated voltage and current variables. D. Write a KCL equation at every node in the circuit. Write those equations using the indicated voltage variables by incorporating Ohm's Law for...
Learning Goal: To use the mesh-current method to analyze circuits containing resistors and independent voltage sources. The mesh-current method is a general technique for solving circuits. Fundamentally, it involves writing KVL equations around all meshes in a circuit. You should review KVL and the definition of a mesh before beginning. In this tutorial, you will use the mesh- current method to find the current through the 1 k2 resistor, io, and the voltage drop across the 5 k22 resistor, vo,...
1a) Mesh Analysis [ 5 marks ] Consider the circuit shown below. All resistances are in Ohms. 8 v1 592 + + V1 422 7V2 3 Ω 5 V 2 Ω iz V2 + 622 10 22 i) Write down the KVL in the super mesh based on the mesh currents (ii, i2 and i3) given on the circuit. Do not solve the equations. [2 marks ] ii) Write down other equations in terms of mesh currents (ii, i2 and...
I need the equations please!!
Given the circuit below: A. Find all loop currents and voltage drops using mesh current analysis and Cramer's rule by hand. B. Find all loop currents and voltage drops using mesh current analysis and Cramer's rule using Matlab. C. Find all loop currents and voltage drops using mesh current analysis and the MatLab command "linsolve" 2
Learning Goal: To use the mesh-current method to solve circuits containing resistors and both independent and dependent sources. The mesh-current method is a general technique for solving planar circuits. When the circuit contains a dependent source, that source will create a constraint and add an unknown to your system of equations. You must write a constraint equation for each dependent source, in addition to the KVL equations. Before beginning this tutorial, you should review the mesh-current method and the four...
2- Set the two independent power sources to Vsi 6V and Veo" 10 V and measure their actual values using the DMM. Actual Values of power sources: 4.47 VS15.99 Vs- 3- Using the breadboard construct the circuit shown in Figure 4,1 (repeated below for convenience). Use the resistors measured in Step 1 (above) and the power sources Vsi- 6 V, and Vs2 -10 V. IR3 IRI RS. R5 R1 R3 Va V4 V2 V1 ww ww It 12 R4 R23...
Problem 1 (20 points) You have the circuit shown below. 7 mA 8 kg %, 1 ko Rz 4k sht 10v ☺ ş 4 kg (lc Ako su sos a. Write a complete set of node voltage equations; one for each node (A through E) b. Using the equations from part a, determine the node voltages VA, VB, Vc, Vo and Ve c. Using the node voltages from part b, determine Vyand ly. Problem 2 (20 points) Using the same...
Write a program in MATLAB to analyze the circuit shown below. The circuit contains of n capacitors, n-1 coils, two resistors (R1 and R2) and AC voltage source in the form of V-Vmcos(wt ). R1 C 1 The following requirements should be fulfilled 1. The minimum number of capacitors in 3 2. If the number of capacitors is n, the number of coils must be n-1. The user will be prompted to enter the correct number of coils if it...
