If the magnetic ?eld intensity in a source-free, dielectric medium is given as , (a) Determine...
If the magnetic ?eld intensity in a source-free, dielectric
medium is given as ![\overrightarrow{H}=H_0[cos(\alpha x - \omega t) + cos(\alpha x + \omega t)] \overrightarrow{a}_z\ A/m](http://img.homeworklib.com/questions/02418610-313d-11eb-8b13-d7d9b6dd6c5c.gif?x-oss-process=image/resize,w_560)
,
(a) Determine the electric ?eld intensity using Maxwell’s equation from Ampere’s law.
(b) What is the displacement current density in the
medium?
Homework Answers
Add Answer to:
If the magnetic ?eld intensity in a source-free, dielectric
medium is given as
,
(a) Determine...
0.8T 7.2 If the electric field intensity in a source-free, dielectric medium is given as Determin...
0.8T 7.2 If the electric field intensity in a source-free, dielectric medium is given as Determine the magnetic field intensity using Maxwell's equation from Taraday's law. What is the displacement current density in the medium?
0.8T 7.2 If the electric field intensity in a source-free, dielectric medium is given as Determine the magnetic field intensity using Maxwell's equation from Taraday's law. What is the displacement current density in the medium?
7.3 If the magnetic field intensity in a source-free, dielectric medium is given as Determine the...

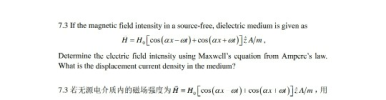

7.3 If the magnetic field intensity in a source-free, dielectric medium is given as Determine the cleetric fiuld intensity using Maxwell's cquation from Ampere's law what is the displacement current density in the medium? 7.3若无源屯介质内的磁场强度为月=H, [cos(ax cur) l cos(axiur)]īA/m,用
The electric field intensity in a dielectric medium (u = H0, ε = ε0εr,) is given by
The electric field intensity in a dielectric medium (u = H0, ε = ε0εr,) is given by E = 150 cos(109t + 8x) az V/m Calculate: (a) The dielectric constant, εr(b) The intrinsic impedance (c) The velocity of propagation (d) The magnetic field intensity vector, H (e) The Poynting vector (phasor form is also OK)
The magnetic field of a uniform plane wave propagating na dielectric medium with e 36 is given by Specify the modulus and direction of the electric field intensity at the x = 0 plane at t = 0 and...
The magnetic field of a uniform plane wave propagating na dielectric medium with e 36 is given by Specify the modulus and direction of the electric field intensity at the x = 0 plane at t = 0 and 5 ns.
The magnetic field of a uniform plane wave propagating na dielectric medium with e 36 is given by Specify the modulus and direction of the electric field intensity at the x = 0 plane at t = 0 and...
1.) (a) State Maxwell’s equation for the curl of the magnetic and the electric field in...
1.) (a) State Maxwell’s equation for the curl of the magnetic and the electric field in free space. State the meaning of all the terms in the equations and identify the displacement current density. Using Maxwell’s equations, derive the wave equations for B. Show that the wave equations admit plane waves for the electric and magnetic fields in free space of the form ? = ??? ?(??−??) , ? = ??? ?(??−??) where ?? and ?? are constant vectors with...
Q1.) A smooth plane propagated in dielectric environment is defined as the electric field intensity of...
Q1.) A smooth plane propagated in dielectric environment is defined as the electric field intensity of the wave wwwwwwwwwwwwwwanaw wwwwwwwwwwwwwwwwwwww wwwwwwwwwwwwww WWW Ez, t) = a,cos(4x10°t+ c) + 1,4sin^4107t+ 3) (mVm) www a) Determine the frequency and wavelength of the wave. b) What is the dielectric constant of the medium? c) Explain the polarization of the wave. d) Find the accompanying alan magnetic field intensity.
please can you answer All of these questions? thank you Part 1. Exercise Questions (Have to...
please can you answer All of these questions?
thank you
Part 1. Exercise Questions (Have to be submitted ) State Coulomb's law and give the mathematical expression. b) Write the definition of electric field strength. What is its SI unit? (Use your own words). c) Define electric displacement vector. What is its SI unit? i.Does the electric displacement vector due to a given charge distribution depend on the properties of the medium? Does the electric field intensity due to a...
3. [20 pts] A linear and isotropic magnetic medium with magnetic susceptibility, Xm-Xm(in - phase...
3. [20 pts] A linear and isotropic magnetic medium with magnetic susceptibility, Xm-Xm(in - phase) +xm (out-of- phase), and permeability in free space, [uo is magnetized by an applied magnetic field intensity, Haypj. The magnetic medium under an externally applied Happl has volume magnetization vector, M and volume current density, Jms (a) [4 pts] Determine the magnetic flux density, B produced from the magnetic medium excited by Happl and write the SI unit. b) 4 pts] Determine the relative magnetic...
The - a magnetic field intensity in the - region xxo, assumed to be free space,...
The - a magnetic field intensity in the - region xxo, assumed to be free space, is given Ai = 4 årt sây+ 328 Alm. In the region xco, assumed to be occupied by material with relative permeability M, the magnetic field intensity is Ar= 2ax +3ây +4 az Alm. Determine My and the surface current density at the boundary between the two regions.
For Problems 5 to 6: Figure shows a capacitor connected to a voltage source. There are...
For Problems 5 to 6: Figure shows a capacitor connected to a voltage source. There are two dielectric slabs stacked in the capacitor. The dielectric slabs are not perfect dielectrics, thus they have finite conductivities. Hint: Notice that electric flux densities in dielectrics 1 and 2 are equal: D-D2 Another hint: You can imagine this structure as two capacitors connected in series. Can you find the voltage Kon capacitor 1. V-4cos(at),o-10,ad /sec, w-o1m, 1:0.ln?, ,-3,e,2-5, ?,-100,?,-200,di-d,-0.002m 82,02 Problem [51 <15...
0.8T 7.2 If the electric field intensity in a source-free, dielectric medium is given as Determine the magnetic field intensity using Maxwell's equation from Taraday's law. What is the displacement current density in the medium?
0.8T 7.2 If the electric field intensity in a source-free, dielectric medium is given as Determine the magnetic field intensity using Maxwell's equation from Taraday's law. What is the displacement current density in the medium?
7.3 If the magnetic field intensity in a source-free, dielectric medium is given as Determine the cleetric fiuld intensity using Maxwell's cquation from Ampere's law what is the displacement current density in the medium? 7.3若无源屯介质内的磁场强度为月=H, [cos(ax cur) l cos(axiur)]īA/m,用
The magnetic field of a uniform plane wave propagating na dielectric medium with e 36 is given by Specify the modulus and direction of the electric field intensity at the x = 0 plane at t = 0 and 5 ns.
The magnetic field of a uniform plane wave propagating na dielectric medium with e 36 is given by Specify the modulus and direction of the electric field intensity at the x = 0 plane at t = 0 and...
Q1.) A smooth plane propagated in dielectric environment is defined as the electric field intensity of the wave wwwwwwwwwwwwwwanaw wwwwwwwwwwwwwwwwwwww wwwwwwwwwwwwww WWW Ez, t) = a,cos(4x10°t+ c) + 1,4sin^4107t+ 3) (mVm) www a) Determine the frequency and wavelength of the wave. b) What is the dielectric constant of the medium? c) Explain the polarization of the wave. d) Find the accompanying alan magnetic field intensity.
please can you answer All of these questions?
thank you
Part 1. Exercise Questions (Have to be submitted ) State Coulomb's law and give the mathematical expression. b) Write the definition of electric field strength. What is its SI unit? (Use your own words). c) Define electric displacement vector. What is its SI unit? i.Does the electric displacement vector due to a given charge distribution depend on the properties of the medium? Does the electric field intensity due to a...
3. [20 pts] A linear and isotropic magnetic medium with magnetic susceptibility, Xm-Xm(in - phase) +xm (out-of- phase), and permeability in free space, [uo is magnetized by an applied magnetic field intensity, Haypj. The magnetic medium under an externally applied Happl has volume magnetization vector, M and volume current density, Jms (a) [4 pts] Determine the magnetic flux density, B produced from the magnetic medium excited by Happl and write the SI unit. b) 4 pts] Determine the relative magnetic...
The - a magnetic field intensity in the - region xxo, assumed to be free space, is given Ai = 4 årt sây+ 328 Alm. In the region xco, assumed to be occupied by material with relative permeability M, the magnetic field intensity is Ar= 2ax +3ây +4 az Alm. Determine My and the surface current density at the boundary between the two regions.
For Problems 5 to 6: Figure shows a capacitor connected to a voltage source. There are two dielectric slabs stacked in the capacitor. The dielectric slabs are not perfect dielectrics, thus they have finite conductivities. Hint: Notice that electric flux densities in dielectrics 1 and 2 are equal: D-D2 Another hint: You can imagine this structure as two capacitors connected in series. Can you find the voltage Kon capacitor 1. V-4cos(at),o-10,ad /sec, w-o1m, 1:0.ln?, ,-3,e,2-5, ?,-100,?,-200,di-d,-0.002m 82,02 Problem [51 <15...
