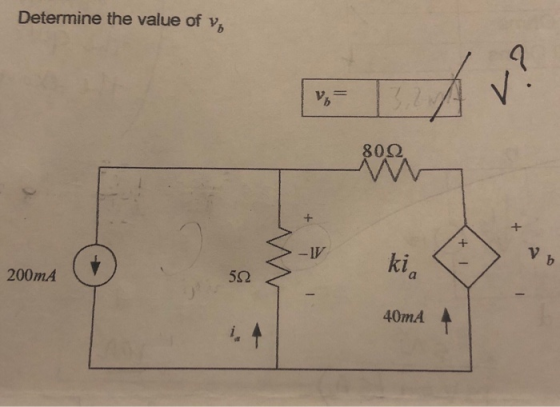

Determine the value ofv 80Ω iv ki 200mA 5Ω 40mA

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

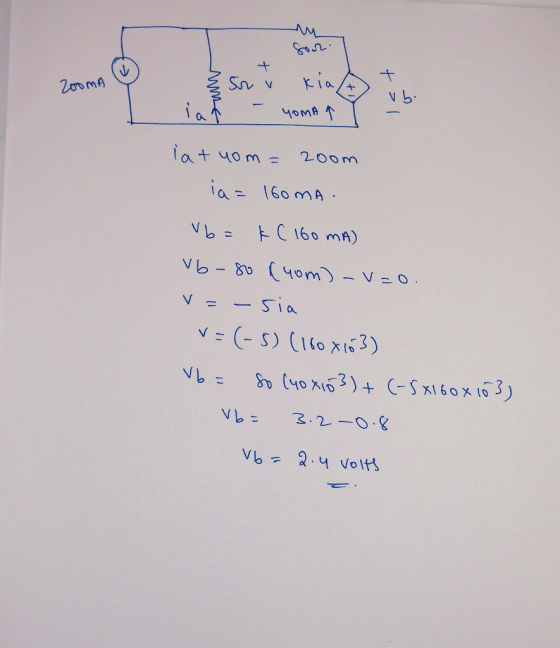

Ia 40m- 200m ia= 160mA . vg- C 160 mA) Vb = 3.2-0.8

Answer 2

Similar Homework Help Questions

this is from control lab IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In Ball and Beam system, given reference position of 200mm,...

this is from control lab IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In Ball and Beam system, given reference position of 200mm, but ball stops at 160. Which parameter of PID need to be changed to attain the desired result. IV. Given Kd-2 and Ki-5; When PID( Kd,Ki) command is executed, what will be the output value of Kp, Ki and Kd? V. In...
3. Use Node Voltage Analysis to determine the nodal voltages for the network below. [6 5Ω...

3. Use Node Voltage Analysis to determine the nodal voltages for the network below. [6 5Ω 5Ω V. i2 5290° 30L500V 5Ω is Va =
Use the principle of superposition to find the value of (vo) in the circuit. 0.41A 5Ω...

Use the principle of superposition to find the value of (vo) in the circuit. 0.41A 5Ω 10 V 5 A 2 is

Determine the molality of KI in a solution at 25 °C where [KI] = 0.83 M...

Determine the molality of KI in a solution at 25 °C where [KI] = 0.83 M if the density of the solution 1.024 g/mL at 25 °C
Determine the molality of KI in a solution at 25 °C where [KI] = 0.80 M...

Determine the molality of KI in a solution at 25 °C where [KI] = 0.80 M if the density of the solution 1.052 g/mL at 25 °C.
3. Determine the equivalent resistance (RT), total current (Gr). Vi, V2, and V. R1 = 5Ω...

3. Determine the equivalent resistance (RT), total current (Gr). Vi, V2, and V. R1 = 5Ω R2 32 20v)

Determine the maximum power transfer to terminals ab 5Ω 10 Ω 25 V 0.51, 10Ω OD

Determine the maximum power transfer to terminals ab 5Ω 10 Ω 25 V 0.51, 10Ω OD
2. In the circuit below, if Vo 24V,determine V. answer: V, 12V 3Ω 5Ω 6Ω 0-

2. In the circuit below, if Vo 24V,determine V. answer: V, 12V 3Ω 5Ω 6Ω 0-
12Ω 2 A 10Ω 20Ω 15 Ω 5 A 15 V 5Ω 20 V Use the...

12Ω 2 A 10Ω 20Ω 15 Ω 5 A 15 V 5Ω 20 V Use the superposition method to determine the value of V AB

This is for my electric machines class. It’s a four loop mesh analysis problem Please show...

This is for my electric machines class. It’s a four loop mesh analysis problem Please show work, and I think open circuit/ short circuit is required to do it Namc a. Solve resistor the mesh equations for the network in Figure 1, Determine the power dissipated by the 6 Ω Oce 20Ω 80Ω 10Ω a6Ω 15Ω Road 200 522 5Ω Figure 1 b. Show that the net complex power dissipated (by the passive elements) is equal to the net complex...
