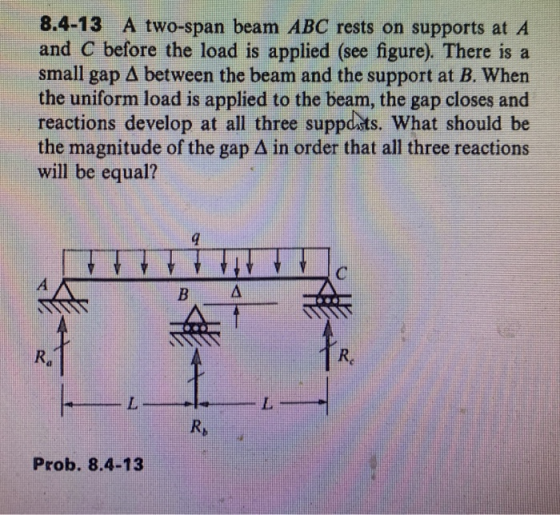

8.4-13 A two-span beam ABC rests on supports at A and C before the load is...

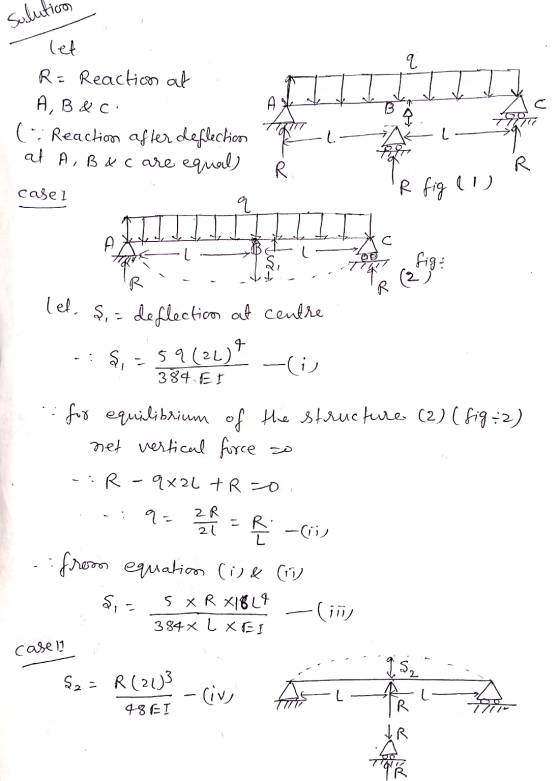

A continuous beam ABC shown in Figure 2 is fixed at A. Supports at B and C are rollers. A uniform distributed load 40kN...
A continuous beam ABC shown in Figure 2 is fixed at A. Supports at B and C are rollers. A uniform distributed load 40kN/m is applied force acts downward on the span of BC as shown in Figure 2. The EI of the beam is over the span of AB and a 60kN constant (a) Determine the internal moments at A and B using the slope-deflection method [10 marks] (b) Draw the bending values of bending (c) Sketch the deformed...
Beam ABC with an overhang at one end supports a partial uniform load of intensity 12 kN/m and a concentrated moment of magnitude 4 kN·m at C (see figure).
Beam ABC with an overhang at one end supports a partial uniform load of intensity 12 kN/m and a concentrated moment of magnitude 4 kN·m at C (see figure). Draw the shear-force and bending-moment diagrams for this beam.
4. (20 pt) A wood beam AB on simple supports with span length equal to 9...
4. (20 pt) A wood beam AB on simple supports with span length equal to 9 ft is subjected to a uniform load of intensity 120 lb/ft acting along the entire length of the beam and a concentrated load P acting at a point 3 ft from the right-hand support (see figure). The allowable stresses in bending and shear, respectively, are 2500 psi and 150 psi. What is the allowable P? (Note: The width and height of the cross section...
A simple beam supports two concentrated loads and a uniformly distributed load over 8 ft. of...
A simple beam supports two concentrated loads and a
uniformly distributed load over 8 ft. of the span. Solve for the
support reactions at A and B
CONSTRUCTION MANAGEMENT TEXAS RLINGTON Assignment #1 FALL 2018 Q4. A simple beam supports two concentrated loads and a uniformly distributed load over 8 ft. of the span. Solve for the support reactions at A and B. 200 Ib 300 lb. 00- 50 lb./ft. 3' 6' 8 Page 5 of 11
A beam ABC with an overhang from B to C sup- ports a uniform load of 200 lb/ft throughout its len...
help please!
A beam ABC with an overhang from B to C sup- ports a uniform load of 200 lb/ft throughout its length (see figure). The beam is a channel section with dimensions as shown in the figure. The moment of inertia about the z axis (the neutral axis) equals 8.13 İn.4 200 Ihn (a) Calculate the maximum tensile stress o, and max- imum compressive stress due to the uniform load. (b) Find required span length a that results in...
1.2-3 Segments AB and BCD of beam ABCD are pin con- nected at x- Thebeam is...
1.2-3 Segments AB and BCD of beam ABCD are pin con- nected at x- Thebeam is supported by a pin support at A and roller supports at C and D: the roller at D is rotated by 30° from the x axis (see figure). A trapezoidal dis- tributed load on BC varies in intensity fromat B to at C. A concentrated moment is applied at joint A, inclined load is applied at the mid-span of CD and a (a) Find...
The two-span continuos beam (ABC) shown in the sketch below carries a uniformly distributed load, w,...
The two-span continuos beam (ABC) shown in the sketch
below carries a uniformly distributed load, w, in the left side
span AB. Assume that EI is constant. Use the method of virtual
work, together with the principle of relative displacements, to
determine the following quantities in terms of E,I,L and
w:
The two-span continuous beam (ABC) shown in the sketch below carries a uniformly distributed load, w, in the left side span AB. Assume that El of the beam is...
A uniform aluminum beam 9.0 m long, weighting 300 N rests symmetrically on two supports 5 m apart
A uniform aluminum beam 9.0 m long, weighting 300 N rests symmetrically on two supports 5 m apart. A boy weighting 600 N is standing initially at position x = 4 m to the right from support A a. Find the normal forces exerted by both supports on the beam b. Imagine now that the boy starts walking to the right along the beam. How far beyond the point B can the boy walk before the beam tips?
Problem 12.124 Part A Before the uniform distributed load is applied on the beam, there is...
Problem 12.124 Part A Before the uniform distributed load is applied on the beam, there is a small gap of 0.2 mm between the beam and the post at B. The post at B has a diameter of 40 mm, and the moment of inertia of the beam is I = 875 (106) mm. The post and the beam are made of material having a modulus of elasticity of E = 200 GPa. Determine the support reaction at A. Take...
A beam ABC with an overhang from B to C is constructed of a C 10...
A beam ABC with an overhang from B to C is constructed of a C 10
x 30 channel section (see figure). The beam supports its own weight
(30 lb/ft) plus a uniform load of intensity q acting on the
overhang. The allowable stresses in tension and compression are 18
ksi and 12 ksi, respectively. Determine the allowable uniform load
qallow (lb/ft) if the distance L equals 3.0 ft. The moment of
inertia, I = 3.94 in4.
A continuous beam ABC shown in Figure 2 is fixed at A. Supports at B and C are rollers. A uniform distributed load 40kN/m is applied force acts downward on the span of BC as shown in Figure 2. The EI of the beam is over the span of AB and a 60kN constant (a) Determine the internal moments at A and B using the slope-deflection method [10 marks] (b) Draw the bending values of bending (c) Sketch the deformed...
A simple beam supports two concentrated loads and a
uniformly distributed load over 8 ft. of the span. Solve for the
support reactions at A and B
CONSTRUCTION MANAGEMENT TEXAS RLINGTON Assignment #1 FALL 2018 Q4. A simple beam supports two concentrated loads and a uniformly distributed load over 8 ft. of the span. Solve for the support reactions at A and B. 200 Ib 300 lb. 00- 50 lb./ft. 3' 6' 8 Page 5 of 11
help please!
A beam ABC with an overhang from B to C sup- ports a uniform load of 200 lb/ft throughout its length (see figure). The beam is a channel section with dimensions as shown in the figure. The moment of inertia about the z axis (the neutral axis) equals 8.13 İn.4 200 Ihn (a) Calculate the maximum tensile stress o, and max- imum compressive stress due to the uniform load. (b) Find required span length a that results in...
1.2-3 Segments AB and BCD of beam ABCD are pin con- nected at x- Thebeam is supported by a pin support at A and roller supports at C and D: the roller at D is rotated by 30° from the x axis (see figure). A trapezoidal dis- tributed load on BC varies in intensity fromat B to at C. A concentrated moment is applied at joint A, inclined load is applied at the mid-span of CD and a (a) Find...
The two-span continuos beam (ABC) shown in the sketch
below carries a uniformly distributed load, w, in the left side
span AB. Assume that EI is constant. Use the method of virtual
work, together with the principle of relative displacements, to
determine the following quantities in terms of E,I,L and
w:
The two-span continuous beam (ABC) shown in the sketch below carries a uniformly distributed load, w, in the left side span AB. Assume that El of the beam is...
Problem 12.124 Part A Before the uniform distributed load is applied on the beam, there is a small gap of 0.2 mm between the beam and the post at B. The post at B has a diameter of 40 mm, and the moment of inertia of the beam is I = 875 (106) mm. The post and the beam are made of material having a modulus of elasticity of E = 200 GPa. Determine the support reaction at A. Take...
A beam ABC with an overhang from B to C is constructed of a C 10
x 30 channel section (see figure). The beam supports its own weight
(30 lb/ft) plus a uniform load of intensity q acting on the
overhang. The allowable stresses in tension and compression are 18
ksi and 12 ksi, respectively. Determine the allowable uniform load
qallow (lb/ft) if the distance L equals 3.0 ft. The moment of
inertia, I = 3.94 in4.
