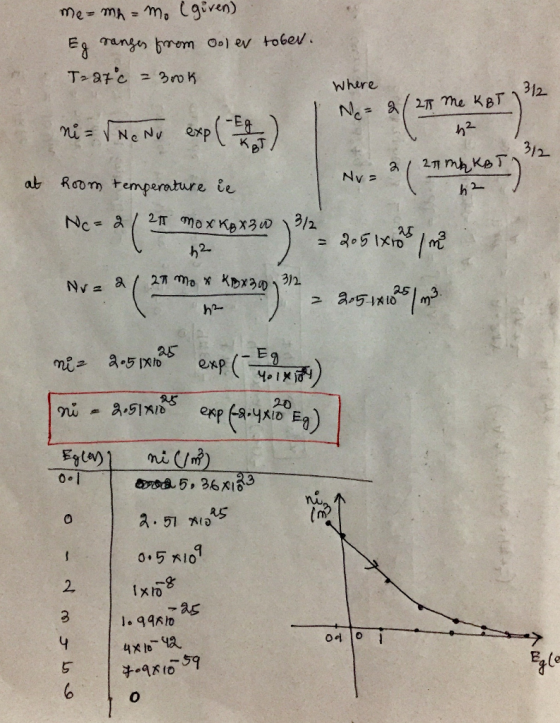

Graph the intrinsic electron concentration as a function of bandgap. For this calculation make the approximation...
QUESTION 43 (10 Marks) a) Calculate the conductivity of an intrinsic silicon (SI) semiconductor at 27°C if the hole mobility is 460 cm V's and the electron mobility is 1350 cm? Vis! Assume an intrinsic carrier density of 1.45 x 10 carriers/cm' and an electron charge of -0.16 x 10-4C (3 marks) b) Using Figure 8, calculate the conductivity of the Si intrinsic semiconductor if the temperature is increased to 150°C, assuming the same electron and hole mobilities (2 marks)...
Please help with this homework problem please, I would
appriciate it very much if you would break me into this. Thank
You
Q8) As was discussed in Section 1 b, an expression for the intrinsic carrier concentration in a semiconductor is given by: np = n = N N, exp E kᎢ Where N and N, are the so-called density of states and are given by N = 2 211m ky h- And N = 2 211m kT h For...
(a) Name two properties of Si that would make it unsuitable for specific device applications and suggest an alternative semiconductor that can be used in each application. (b) You need to make a detector that is very sensitive to light with wavelength of 10 um. (i) In what part of the electromagnetic spectrum will this device need to operate ? (ii) Calculate the optimum energy gap for the detector material ? (iii) Explain why you would or would not use...
(a) Name two properties of Si that would make it unsuitable for specific device applications and suggest an alternative semiconductor that can be used in each application. (b) You need to make a detector that is very sensitive to light with wavelength of 10 um. (i) In what part of the electromagnetic spectrum will this device need to operate ? (ii) Calculate the optimum energy gap for the detector material ? (iii) Explain why you would or would not use...
(a) Name two properties of Si that would make it unsuitable for specific device applications and suggest an alternative semiconductor that can be used in each application. (b) You need to make a detector that is very sensitive to light with wavelength of 10 um. In what part of the electromagnetic spectrum will this device need to operate ? (ii) Calculate the optimum energy gap for the detector material ? (iii) Explain why you would or would not use Si...
Taking pure silicon (Si) as an example, explain what is meant by the terms electron-hole generation and recombination, how they affect the electrical conductivity, and define what is meant by the "intrinsic carrier density", n. [5 marks] Q3. a) b) With the aid of both lattice and energy band diagrams, explain how n-type doping of Si is achieved and state two types of suitable dopant atoms. [7 marks] c) An n-type region on a Si wafer has a donor concentration...
e Calculate the position of EF with respect to E. 5. Explain why holes are found wny holes are found near the top of the valence band, whereas conduction electrons are found at the bottom of the conduction band. O. Using the Figure 3-17 in your text (also attached), fill in the following table: Semiconductor 300°K 400°K 500°K Ge GaAs For Ge at 500°K and Si at 400°K, show on the attached graph how you determined the value you put...
**Please Show All The Steps**
As I mentioned in the class assume that we have a GaAs (Gallium
Arsenide) sample which was doped with excessive As to produce a
resistivity of 0.05 Ωm. Owing to the presence of an unknown
acceptor impurity the actual resistivity was 0.06Ωm, the sample
remaining n-type. What were the concentrations of donors and
acceptors present?
(Please take μe=0.85 m2/Vs and assume that all impurity atoms
are ionized)
PHYSICAL CONSTANTS Avagadro's Number NA- 6.02 x 10*23...
