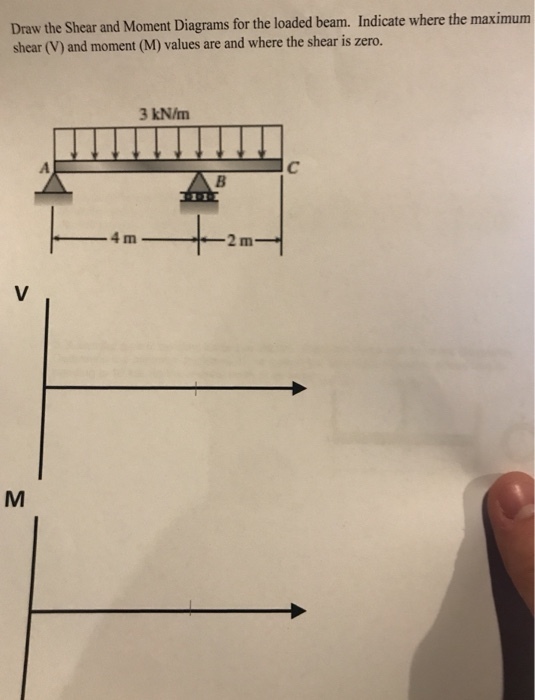

Draw the Shear and Moment Diagrams for the loaded beam. Indicate where the maximum shear (V)...

Question

Question

engineering Civil-Engineering

Answer 1

Answer #1

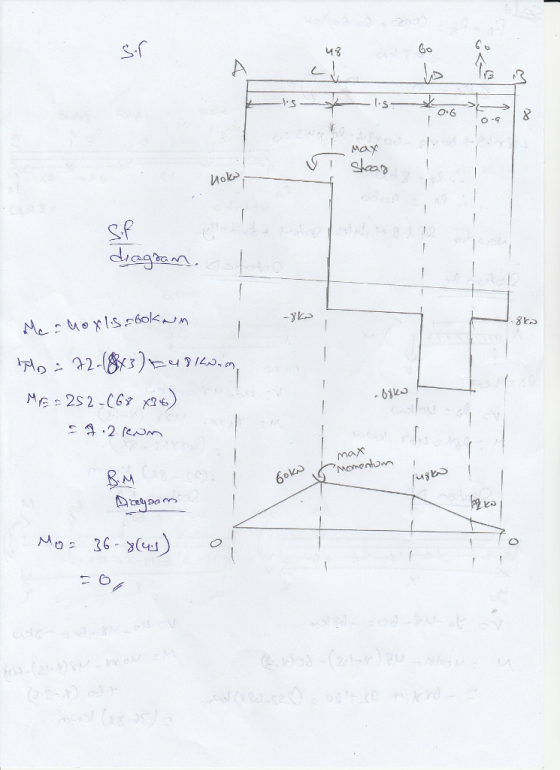

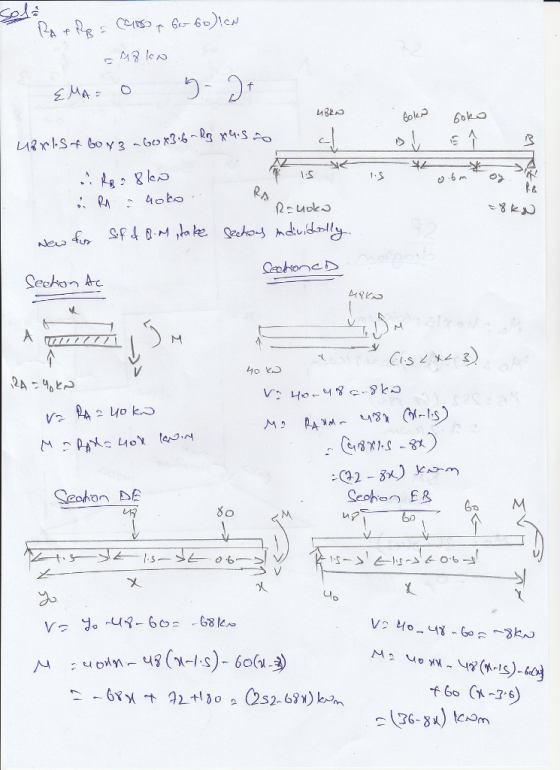

I.S echo AC 40 と,d LA Ju 下60 (X-T6) 36-3)com 너8 o -s Ma 63 6° cepa

Answer 2

Similar Homework Help Questions

Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer...

Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. 6 KN 5 kN/m 6 kN.m La mtu2m + 2m + 2m- 3 m 3m + +3m- 3m Questions: When x = 0.5 m, V = kNm When x = 3.2 m, V = kN.m When x = 6.0 m, V = kN.m When x = 8.2 m, V = kN.m The maximum (absolute value) shear...
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer...

Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. Question 7 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. 9 KN 7 KN 6 kN/m 4 kN/m e B- ham tomt9m— 5m Questions: When x = 2.3 m, V = KNm When x = 8.6 m, V = kNm...
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer...

Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions in order to gain confidence in your plots. Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions in order to gain confidence in your plots. 2 kN 11 kN 5 kNm +3m +4m + 6m — +3m 8 KN Questions: When x = 2.1 m, V = KN.m When x = 5.7 m,...

Chapter 5, Problem 5/120 Draw the shear and moment diagrams for the loaded beam. After you...

Chapter 5, Problem 5/120 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work 4 kN/m 18 kN m 6 m 10 91 kN Questions: kN m kN m KN·m kN m When x-4.3 m, V hen x = 8.9 m, V = When x = 17.7 m, V= When x = 22.2 m, v = kN M The maximum (absolute value) shear force in the...
Draw the shear and moment diagrams for the loaded beam. Then answer the questions. The distance...

Draw the shear and moment diagrams for the loaded beam. Then answer the questions. The distance x is measured from point A to t 4.8 KN 2.9 kN 1.6 m 1.6 m 1.6 m Questions: kN.m kN-Im kN m At x-2.2 m, V- kN, M- At x-3.5 m, V- kN, M The bending moment is zero between the ends of the beam atx -
Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer...

Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions in order to gain confidence in your plots. 2 KN 2 kN 5 kN.m 3m +4m 7m — +3m- + 2 KN Questions: Ž When x = 2.0 m, V = T0.529 KN.m Į When x = 4.6 m, V = T-2.529 KN.m Į When x = 8.4 m, V = T0.529 KN.m Į When x = 15.1 m, V = 9...

for the beam shown, draw the shear and moment diagrams. clearly indicate positions where shear us...

for the beam shown, draw the shear and moment diagrams. clearly indicate positions where shear us equal to zero and whether each segment is constant, linear, quadratic, or cubic. 85 kN 24 kN/m Hinge A B ob D С 8 m 8 m 3 m
Question 7 Draw the shear and moment diagrams for the loaded beam. After you have the...

Question 7 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work 7 kN 5 kN 8 kN/m 5 kN/m 9 m 5 m Questions: When x 1.3 m, V- When x = 8.4 m, V = When x 12.4 m, V- when x = 22.1 m, V kN kN kN kN kN·m kN m kN·m kN m When x-1.3 m, V- When x-8.4 m, V-...
Draw the shear and moment diagrams for the beam and determine the maximum shear and the...

Draw the shear and moment diagrams for the beam and determine the maximum shear and the maximum moment. 15 kN 5 kN/m 80 kN.m B Sm 5 m

ent Question 7 Draw the shear and moment diagrams for the loaded beam. After you have...

ent Question 7 Draw the shear and moment diagrams for the loaded beam. After you have the diagrams, answer the questions as a check on your work. 3 kN 6 kN/m 4 kN/m 3 m 4 m When x 1.5 m, V- When x 3.6m, V When x6.4 m, V when x = 9.8 m, V = kN kN m kN kN m M- kN kN·m kN kN m The maximum (absolute value) shear force in the beam is: Vmaxl...
