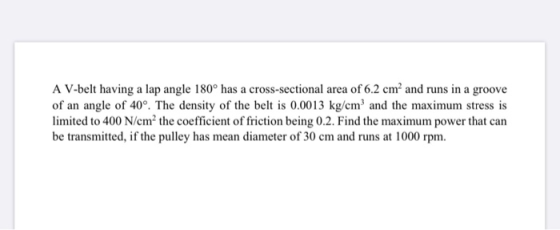

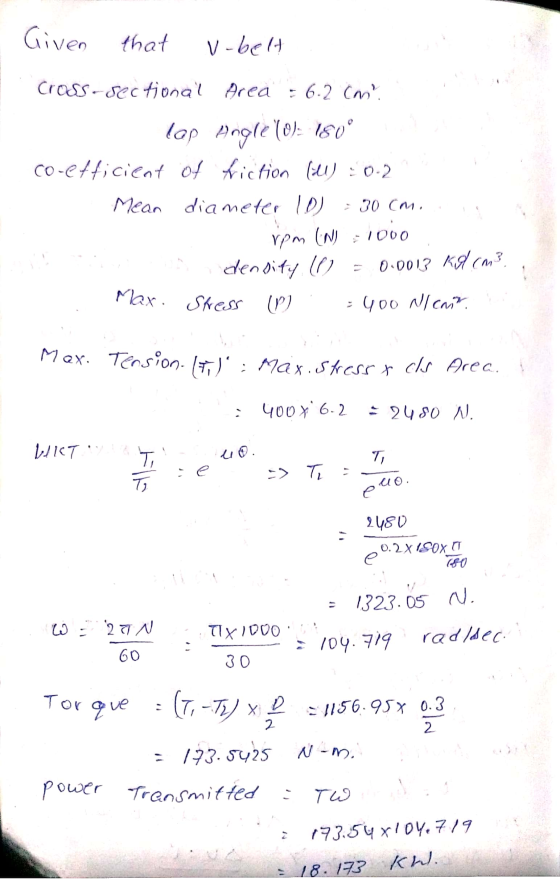

A V-belt having a lap angle 180° has a cross-sectional area of 6.2 cm’ and runs...
A-V belt is to transmit 20 kW from a 250 mm pitch diameter sheave to a...
A-V belt is to transmit 20 kW from a 250 mm pitch diameter sheave to a 900 mm diameter pulley. The center distance between the two shafts is 1000 mm. The groove angle is 40' and the coefficient of friction for the belt and sheave is 0.2 and the coefficient of friction between the belt and flat pulley is 0.2. The cross-section of the belt is 40 mm wide at the top, 20 mm wide at the bottom and 25...
Determine the number of V-belts required to transmit a power of 60 kW at 750 rpm...
Determine the number of V-belts required to transmit a power of 60 kW at 750 rpm from an electric motor to a compressor shaft at 300 rpm. The larger pulley diameter is 1500 mm. The centre distance is 1650 mm, and overload factor is to be taken as 1.5. A belt with cross- sectional area of 350 mm², density of 1000 kg/m and having an allowable tensile strength of 2 MPa is available for use. The coefficient of friction between...
Motor drives a water pump through a vee belt transmission system as shown in motor pulleys have d...
motor drives a water pump through a vee belt transmission system as shown in motor pulleys have diameters D,-600 mm and Di-200 mm, centres is d-1.5 m. The friction coefficient between 1. An electric Figure 1. The pump and respectively. The distance between pulley th e belt and pulleys is 0.4. If the motor rotates at 2000 rpm in clockwise direction determine: (4 marks) (3 marks) (4 marks) a) the lap angle on pulley D2; b) the tight and slack...
A single V-belt drive system is powered by an electric motor with a speed of 2691 rpm and transmi...
A single V-belt drive system is powered by an electric motor with a speed of 2691 rpm and transmits a power 11 kW. The driving pulley is connected to the driven pulley by a single V-belt of angle 18 degrees and a unit weight of 2.18 N/m. The angle of wraps between the belt and pulley is approximately 175 degrees. The driven shaft is attached to a cylindrical pulley of 101 mm and runs at a speed of 1221 rpm....
Problem Solving A 3200/240-V, 60-Hz, 1-phase transformer is built on a core having an effective cross-sectional...
Problem Solving A 3200/240-V, 60-Hz, 1-phase transformer is built on a core having an effective cross-sectional area of 125 cm^2 and has 80 turns in the low-voltage winding. Calculate (a) the value of the maximum flux density in the core and (b) the number of turns in the high-voltage winding.
find v belt drive design power select belt type determine shive size (belt speed 4000 ft/min)...
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
A-V belt is to transmit 20 kW from a 250 mm pitch diameter sheave to a 900 mm diameter pulley. The center distance between the two shafts is 1000 mm. The groove angle is 40' and the coefficient of friction for the belt and sheave is 0.2 and the coefficient of friction between the belt and flat pulley is 0.2. The cross-section of the belt is 40 mm wide at the top, 20 mm wide at the bottom and 25...
Determine the number of V-belts required to transmit a power of 60 kW at 750 rpm from an electric motor to a compressor shaft at 300 rpm. The larger pulley diameter is 1500 mm. The centre distance is 1650 mm, and overload factor is to be taken as 1.5. A belt with cross- sectional area of 350 mm², density of 1000 kg/m and having an allowable tensile strength of 2 MPa is available for use. The coefficient of friction between...
motor drives a water pump through a vee belt transmission system as shown in motor pulleys have diameters D,-600 mm and Di-200 mm, centres is d-1.5 m. The friction coefficient between 1. An electric Figure 1. The pump and respectively. The distance between pulley th e belt and pulleys is 0.4. If the motor rotates at 2000 rpm in clockwise direction determine: (4 marks) (3 marks) (4 marks) a) the lap angle on pulley D2; b) the tight and slack...
Problem Solving A 3200/240-V, 60-Hz, 1-phase transformer is built on a core having an effective cross-sectional area of 125 cm^2 and has 80 turns in the low-voltage winding. Calculate (a) the value of the maximum flux density in the core and (b) the number of turns in the high-voltage winding.
find v belt drive
design power
select belt type
determine shive size (belt speed 4000 ft/min)
find shive size from power rating figure
find rated power
find estimated centre distance
find belt length (by selecting standard belt length)
calculate actual centre distance
find contact angle for small shieve
determine correct factors
calculate correct power per belt
no. of belt needed
V-Belt Designing Sample Problem . Given: A 4 cylinder diesel engine runs at 80 hp, 1800 rpm, to drive a...
