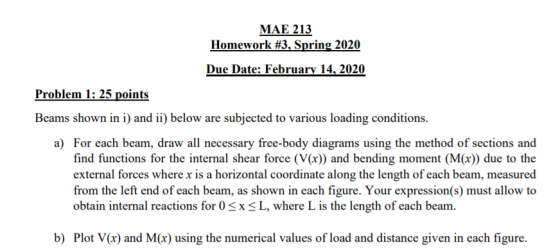

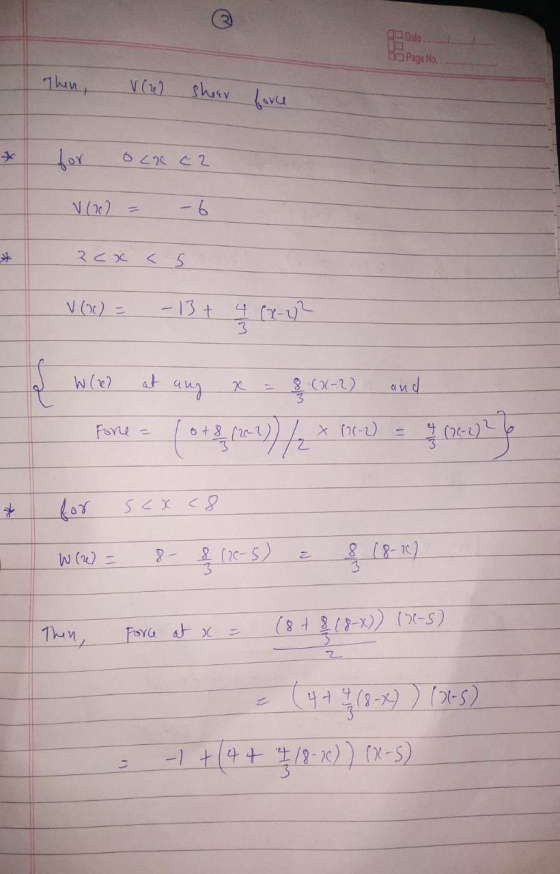

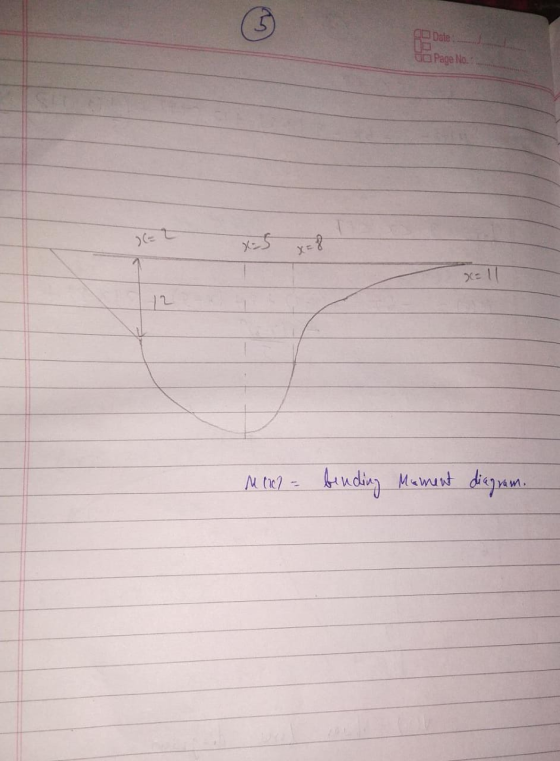

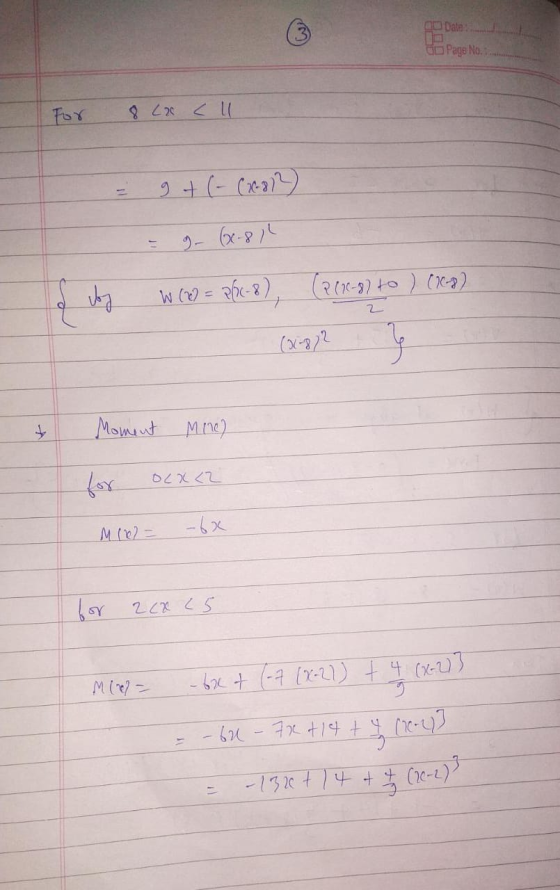

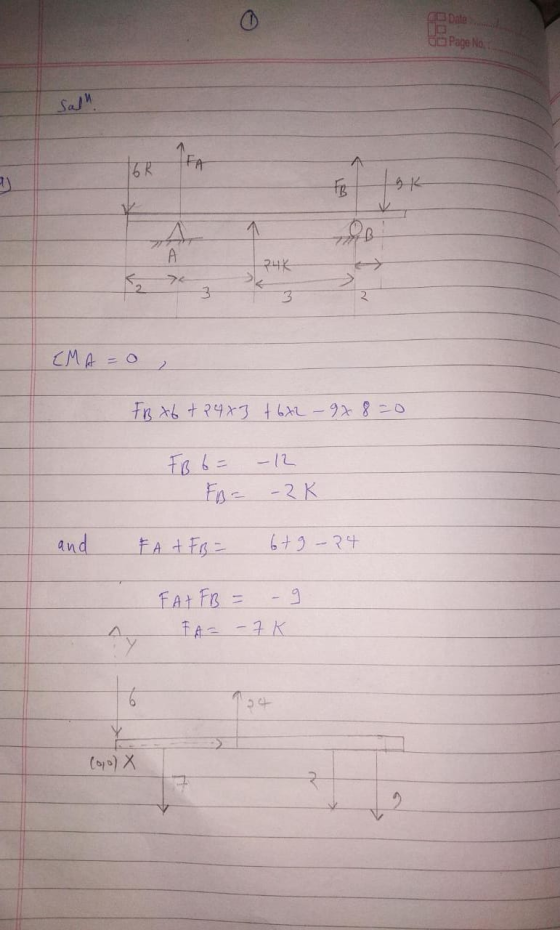

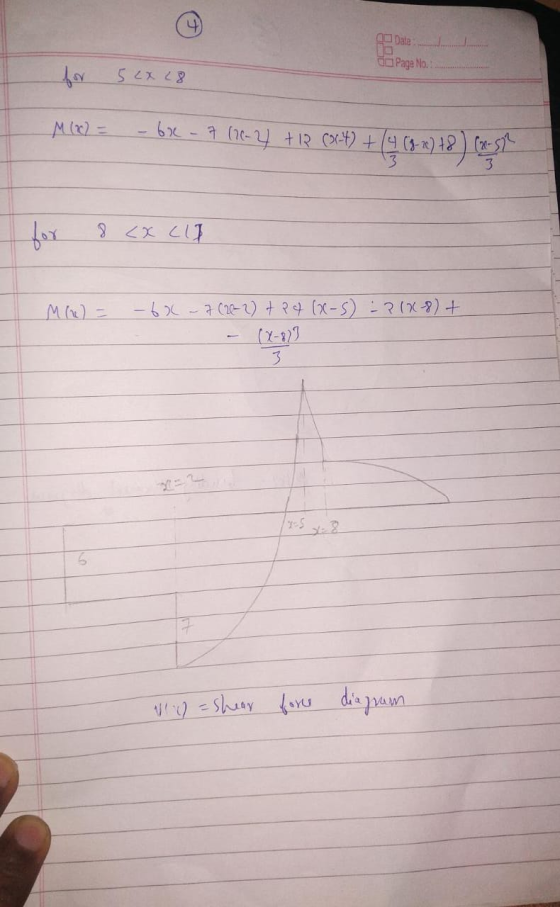

MAE 213 Homework #3, Spring 2020 Due Date: February 14, 2020 Problem 1: 25 points Beams...
I need help with this problem. A cantilever beam is subjected to a linearly distributed load,...
I need help with this problem.
A cantilever beam is subjected to a linearly distributed load, with W, = 10 kN/m and to an inclined point load F equal to 20 kN, as shown in the figure. The length of the beam is L=10 m. Make a cut at distance x from the free end of the cantilever, as shown in the figure, and use the method of sections to derive expressions for the internal resultant loadings at the cross-section...
CEE 381 Structural Analysis, Spring 2020 Homework 3 Due: February 27th, in class Determine support reactions...
CEE 381 Structural Analysis, Spring 2020 Homework 3 Due: February 27th, in class Determine support reactions and draw axial force, shear force, and bending moment diagrams. 1. (50 points) 48kips 240kips.ft 4kips/ft 4ft 24kips
Pantaw2 Spring 2020 - MAE 301 Pluid Mechanics Chapter 2: Properties of Fluids Due date: Wed,Fab....
Pantaw2 Spring 2020 - MAE 301 Pluid Mechanics Chapter 2: Properties of Fluids Due date: Wed,Fab. 20 Points. Problem 1 A metal plate 1.25 mm 125 mm x 8 mm thick and weighing 90 N is placed midway in the 24 mm gap between the two vertical plane surface. The gap is Miled with an oil of specific gravity 0.85 and dynamic viscosity 3.0 N/m2 Determine the force required to lift the plate with a constant velocity of 0.15 m/s....
3. A beam with a hollow circular cross section of outer diameter D and inner diameter...
3. A beam with a hollow circular cross section of outer diameter D and inner diameter d. The length Lis fixed at a wall. Consider the following loading conditions, all applied to the beam at the midpoint of length L. For each loading scheme state determine the magnitude of that stress in terms of the variables given in the problem). (5 points) i. ii. iii. iv. V. Normal stress due to axial load F Shear stress due to torque T...
4. (25 pt.) The beam subjected to a uniform distributed load as shown in Figure 4(a)...
4. (25 pt.) The beam subjected to a uniform distributed load as shown in Figure 4(a) has a triangular cross-section as shown in Figure 4(b). 1) (6 pt.) Determine mathematical descriptions of the shear force function V(x) and the moment function M(x). 2) (6 pt.) Draw the shear and moment diagrams for the beam. 3) (5 pt.) What is the maximum internal moment Mmar in the beam? Where on the beam does it occur? 4) (8 pt.) Determine the absolute...
L/2 L/4 L/2 L/4 P/2 P/2 3 pt. Loading 4 pt. Loading 1. The schematics above show two common mecha...
Could I get help on question 1 and 2 please
L/2 L/4 L/2 L/4 P/2 P/2 3 pt. Loading 4 pt. Loading 1. The schematics above show two common mechanical testing geometries - a 3 point loaded specimen and 4 point loaded specimen. The samples you would test in these geometries would be called "flexure" samples. P is the load measured by the load cell Samples would actually be longer than L but the contact points determine the loading profile...
I Solve any five of following questions (show all the necessary steps) and submit until August-01-2020...
I Solve any five of following questions (show all the necessary steps) and submit until August-01-2020 in PDF file format 1. Draw the shear and bending-moment diagrams for the beam and loading shown below and A B 400 mm 400 mm 250 mm 12 kN 8 KN If the shaft has a diameter of 6cm, Determine the A. Shear forces B. Moment of arms C. The absolute maximum Bending stress in the shaft. 2. Two solid cylindrical rods AB and...
Could I get help on question 1 and 2 please L/2 L/4 L/2 L/4 P/2 P/2...
Could I get help on question 1 and 2 please
L/2 L/4 L/2 L/4 P/2 P/2 3 pt. Loading 4 pt. Loading 1. The schematics above show two common mechanical testing geometries - a 3 point loaded specimen and 4 point loaded specimen. The samples you would test in these geometries would be called "flexure" samples. P is the load measured by the load cell Samples would actually be longer than L but the contact points determine the loading profile...
Ignore the pencil writing because its most likley wrong NAME: Exam 4 Engr225 Problem 1 (S0...
Ignore the pencil writing because its most likley wrong
NAME: Exam 4 Engr225 Problem 1 (S0 pts) Explain your work y The figure shows the cross-section of a beam. The beam is subjected to various forces and moments that cause internal loadings at the cross-section shown. Soo E Omm FEeo The figure shows the cross-section of interest and three differential elements D, E, and F. D is at the bottom and centered on the y-axis. E and F are on...
Hi, I need the solution to problem 4 ASAP. Thanks Problem 3 (25 points): Adopting the...
Hi, I need the solution to problem 4 ASAP. Thanks
Problem 3 (25 points): Adopting the methods you have learned in moment distribu- tion method. . (a) Evaluate the distribution factors for each span considering appropriate stiffness values. (b) Determine the fixed-end moments for each span. (c) Adopting the table that you have seen in class, determine the support moments at A B. and C. (d) Employing equilibrium equations for spans AB and BC, determine the remaining sup- port reactions...
I need help with this problem.
A cantilever beam is subjected to a linearly distributed load, with W, = 10 kN/m and to an inclined point load F equal to 20 kN, as shown in the figure. The length of the beam is L=10 m. Make a cut at distance x from the free end of the cantilever, as shown in the figure, and use the method of sections to derive expressions for the internal resultant loadings at the cross-section...
CEE 381 Structural Analysis, Spring 2020 Homework 3 Due: February 27th, in class Determine support reactions and draw axial force, shear force, and bending moment diagrams. 1. (50 points) 48kips 240kips.ft 4kips/ft 4ft 24kips
Pantaw2 Spring 2020 - MAE 301 Pluid Mechanics Chapter 2: Properties of Fluids Due date: Wed,Fab. 20 Points. Problem 1 A metal plate 1.25 mm 125 mm x 8 mm thick and weighing 90 N is placed midway in the 24 mm gap between the two vertical plane surface. The gap is Miled with an oil of specific gravity 0.85 and dynamic viscosity 3.0 N/m2 Determine the force required to lift the plate with a constant velocity of 0.15 m/s....
3. A beam with a hollow circular cross section of outer diameter D and inner diameter d. The length Lis fixed at a wall. Consider the following loading conditions, all applied to the beam at the midpoint of length L. For each loading scheme state determine the magnitude of that stress in terms of the variables given in the problem). (5 points) i. ii. iii. iv. V. Normal stress due to axial load F Shear stress due to torque T...
4. (25 pt.) The beam subjected to a uniform distributed load as shown in Figure 4(a) has a triangular cross-section as shown in Figure 4(b). 1) (6 pt.) Determine mathematical descriptions of the shear force function V(x) and the moment function M(x). 2) (6 pt.) Draw the shear and moment diagrams for the beam. 3) (5 pt.) What is the maximum internal moment Mmar in the beam? Where on the beam does it occur? 4) (8 pt.) Determine the absolute...
Could I get help on question 1 and 2 please
L/2 L/4 L/2 L/4 P/2 P/2 3 pt. Loading 4 pt. Loading 1. The schematics above show two common mechanical testing geometries - a 3 point loaded specimen and 4 point loaded specimen. The samples you would test in these geometries would be called "flexure" samples. P is the load measured by the load cell Samples would actually be longer than L but the contact points determine the loading profile...
I Solve any five of following questions (show all the necessary steps) and submit until August-01-2020 in PDF file format 1. Draw the shear and bending-moment diagrams for the beam and loading shown below and A B 400 mm 400 mm 250 mm 12 kN 8 KN If the shaft has a diameter of 6cm, Determine the A. Shear forces B. Moment of arms C. The absolute maximum Bending stress in the shaft. 2. Two solid cylindrical rods AB and...
Could I get help on question 1 and 2 please
L/2 L/4 L/2 L/4 P/2 P/2 3 pt. Loading 4 pt. Loading 1. The schematics above show two common mechanical testing geometries - a 3 point loaded specimen and 4 point loaded specimen. The samples you would test in these geometries would be called "flexure" samples. P is the load measured by the load cell Samples would actually be longer than L but the contact points determine the loading profile...
Ignore the pencil writing because its most likley wrong
NAME: Exam 4 Engr225 Problem 1 (S0 pts) Explain your work y The figure shows the cross-section of a beam. The beam is subjected to various forces and moments that cause internal loadings at the cross-section shown. Soo E Omm FEeo The figure shows the cross-section of interest and three differential elements D, E, and F. D is at the bottom and centered on the y-axis. E and F are on...
Hi, I need the solution to problem 4 ASAP. Thanks
Problem 3 (25 points): Adopting the methods you have learned in moment distribu- tion method. . (a) Evaluate the distribution factors for each span considering appropriate stiffness values. (b) Determine the fixed-end moments for each span. (c) Adopting the table that you have seen in class, determine the support moments at A B. and C. (d) Employing equilibrium equations for spans AB and BC, determine the remaining sup- port reactions...
