Question

(Connection between E and V in a parallel plate capacitor)

We observe that the electric field between the parallel plates of area A, and containing charge Q is uniform, i.e. the E-lines are parallel and E = Q/(εoA).

(i) Describe the equipotential lines between the plates.

(ii) Draw lines of potential 2.25 V, 4.50 V and 7.25 V between a parallel plate capacitor with potential difference between the plates, ΔVC = 9.00 V

Answer 1

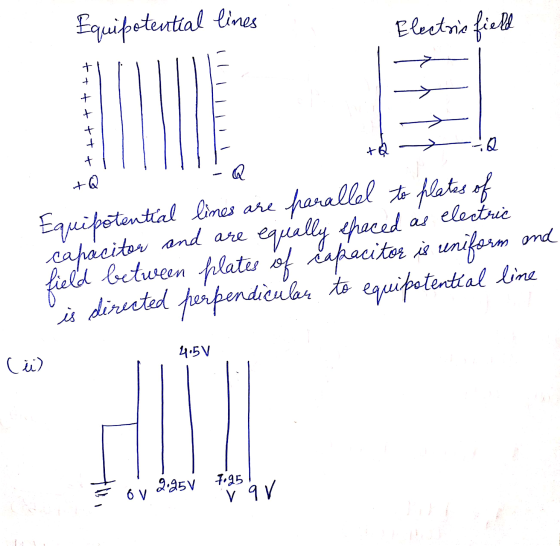

Equipotential lines Electric field + + t it + + + ME +Q 12 Q +Q electric as Equipotential lines are parallel to platss of capacitor and are equally spaced field between plates capacitor is uniform and is directed perpendicular to equipotential line 4.5 V (نين ) 2.25V 7.95 OV var
