Homework Answers
Add Answer to:
A loop wire in the shape of a rectangle of width w and length L and...
A loop of wire in the shape of a rectangle of width w and length L...

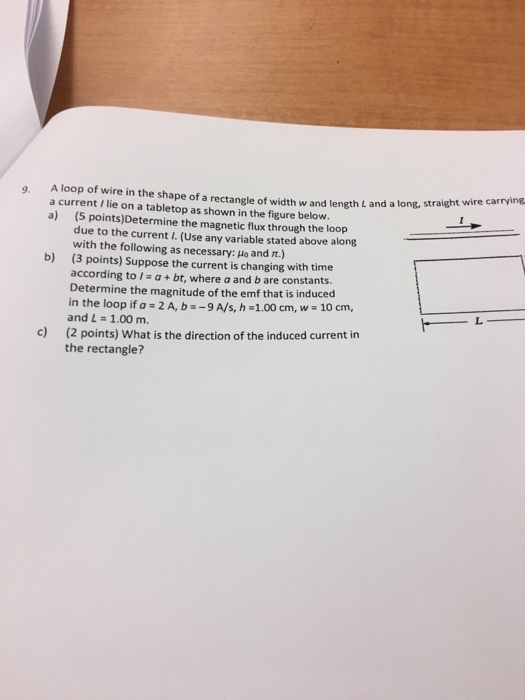

A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below. (a) Determine the magnetic flux through the loop due to the current I. (Use any variable stated above along with the following as necessary: up and n.) (b) Suppose the current is changing with time according to I = a + bt, where a and...
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below (a) Determine the magnetic flux through the loop due to the current I. (Use any variable stated above along with the following as necessary: μ0 and π.) (b) Suppose the current is changing with time according to I = a + bt, where a and b are...
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below.
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below. (a) Determine the magnetic flux through the loop due to the current I. (b) Suppose the current is changing with time according to I = a + bt, where a and b are constants. Determine the magnitude of the emf that is induced in the loop if...
A loop of wire in the shape of a rectangle of width w and length L and a long
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below.(a) Determine the magnetic flux through the loop due to the current I. (Use any variable stated above along with the following as necessary: μ₀ . )ΦB=(b) Suppose the current is changing with time according to I=a+b t, where a and b are constants. Determine the...
A wire loop in the shape of a rectangle of length L and width W and...
A wire loop in the shape of a rectangle of length L and width W and a Long and straigh Wire carries a current I. As shown in the picture.
A) Determines the Magnetic flow through The turn by the Current I.
b) Suppose the current changes over time according to the Equation I = a + bt, where a and b are constants. Determine the induced emf in the loop if B=10A/s; h=1cm; w=10cm and L=100cm
c) What is...
A rectangular loop of wire (width w = 0.05 meters , length L = 0.1m) is...
A rectangular loop of wire (width w = 0.05 meters , length L = 0.1m) is traveling with a speed of v = 2 m/s as it enters a region with a uniform magnetic field which is directed out of the page (See the drawing below.) The magnetic field has a constant value of 0.5 Tesla. (a) How long does it take the loop to completely enter the region with the magnetic field (5 pt)? (b) What is the change...
A loop of wire in the shape of a rectangle rotates with a frequency of 219...
A loop of wire in the shape of a rectangle rotates with a
frequency of 219 rotation per minute in an applied magnetic field
of magnitude 6 T. Assume the magnetic field is uniform. The area of
the loop is A = 4 cm2 and the total resistance
in the circuit is 7 Ω.
Find the maximum induced emf.
max =
Find the maximum current through the bulb.
Imax
In the figure, a rectangular loop of wire with length a = 3.8 cm, width b...
In the figure, a rectangular
loop of wire with length a = 3.8 cm, width b = 1.3 cm, and
resistance R = 0.71 m? is placed near an infinitely long wire
carrying current i = 6.7 A. The loop is then moved away from the
wire at a constant speed v = 4.8 mm/s. When the center of the loop
is at distance r = 2.8 cm, what are (a) the magnitude of the
magnetic flux through the loop...
A loop of wire in the shape of a rectangle of width w and length L and a long, straight wire carrying a current I lie on a tabletop as shown in the figure below. (a) Determine the magnetic flux through the loop due to the current I. (Use any variable stated above along with the following as necessary: up and n.) (b) Suppose the current is changing with time according to I = a + bt, where a and...
A wire loop in the shape of a rectangle of length L and width W and a Long and straigh Wire carries a current I. As shown in the picture.
A) Determines the Magnetic flow through The turn by the Current I.
b) Suppose the current changes over time according to the Equation I = a + bt, where a and b are constants. Determine the induced emf in the loop if B=10A/s; h=1cm; w=10cm and L=100cm
c) What is...
A rectangular loop of wire (width w = 0.05 meters , length L = 0.1m) is traveling with a speed of v = 2 m/s as it enters a region with a uniform magnetic field which is directed out of the page (See the drawing below.) The magnetic field has a constant value of 0.5 Tesla. (a) How long does it take the loop to completely enter the region with the magnetic field (5 pt)? (b) What is the change...
A loop of wire in the shape of a rectangle rotates with a
frequency of 219 rotation per minute in an applied magnetic field
of magnitude 6 T. Assume the magnetic field is uniform. The area of
the loop is A = 4 cm2 and the total resistance
in the circuit is 7 Ω.
Find the maximum induced emf.
max =
Find the maximum current through the bulb.
Imax
In the figure, a rectangular
loop of wire with length a = 3.8 cm, width b = 1.3 cm, and
resistance R = 0.71 m? is placed near an infinitely long wire
carrying current i = 6.7 A. The loop is then moved away from the
wire at a constant speed v = 4.8 mm/s. When the center of the loop
is at distance r = 2.8 cm, what are (a) the magnitude of the
magnetic flux through the loop...
