The point masses "m" and "2m" lies along the x-axis, with m at the origin and...

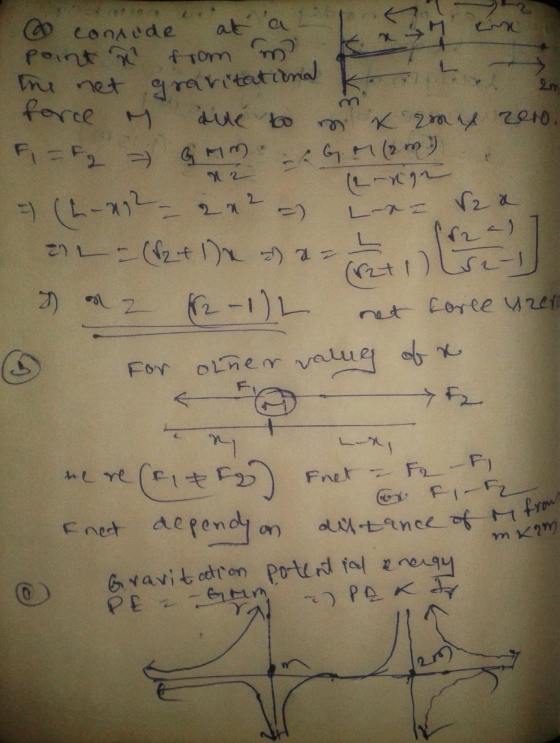

The point masses "m" and "2m" lies along the x-axis, with m at the origin and 2m at x=L. A third point mass M is moved along the x-axis.
Given [m,L]. Determine:
a. At what point is the total gravitational force on M due to the other two masses equal to zero?
b. Sketch the x-component of the net force on M for all values of x.
c. Sketch the net gravitational potential energy of M for all values of x.
Homework Answers
Add Answer to:
The point masses "m" and "2m" lies along the x-axis, with m at
the origin and...
The point masses m and 2m lie along the x-axis, with m at the origin and...
The point masses m and 2m lie along the x-axis, with m at the origin and 2m at x = L. A third point mass M is moved along the x-axis. a) At what point is the net gravitational force on M due to the other two masses equal to zero?
Where along the x axis will a third point charge of q = +2.00 nC charge...
Where along the x axis will a third point charge of q = +2.00 nC
charge need to be for the net electric force on it due to the two
fixed charges to be equal to zero?
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 =-8.00 nC is located on the x axis at x -7.00 m.
A uniformly charged rod of length L=2.2 m lies along the x-axis with its right end at the origin.
A uniformly charged rod of length L=2.2 m lies along the x-axis with its right end at the origin. The rod has a total charge of Q=6.8 μC, A point P is located on the x-axis a distance a = 0.45 m to the right of the origin.Part (a) Consider a thin slice of the rod of thickness dr located a distance x away from the origin. What is the direction of the electric field at point P due to the...
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 =-7.00 nC is located on the x axis at x 7.00 m
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 =-7.00 nC is located on the x axis at x 7.00 m. 1) Where along the x axis will a third point charge of q = +2.00 nC charge need to be for the net electric force on it due to the two fixed charges to be equal to zero? (Express your answer to three significant figures.)
Three identical very dense masses of 6800 kg each are placed on the x axis. One...
Three identical very dense masses of 6800 kg each are placed on the x axis. One mass is at x1 = -110 cm , one is at the origin, and one is at x2 = 380 cm . Part A What is the magnitude of the net gravitational force Fgrav on the mass at the origin due to the other two masses? Take the gravitational constant to be G = 6.67×10−11 N⋅m2/kg2 . Express your answer in newtons to three...
Three identical very dense masses of 6000 kg each are placed on the x axis. One...
Three identical very dense masses of 6000 kg each are placed on the x axis. One mass is at x1 = -120 cm , one is at the origin, and one is at x2 = 450 cm . Q: What is the magnitude of the net gravitational force Fgrav on the mass at the origin due to the other two masses? Take the gravitational constant to be G = 6.67×10−11 N⋅m2/kg2 . Q: What is the direction of the net...
Three identical very dense masses of 7700 kg each are placed on the x axis. One...
Three identical very dense masses of 7700 kg each are placed on the x axis. One mass is at x1 = -120 cm , one is at the origin, and one is at x2 = 390 cm . What is the magnitude of the net gravitational force Fgrav on the mass at the origin due to the other two masses? Take the gravitational constant to be G = 6.67×10−11 N⋅m2/kg2 . Express your answer in newtons to three significant figures....
A non-uniform rod of length 0.5m is placed along the x-axis at a distance.2m from the...
A non-uniform rod of length 0.5m is placed along the x-axis at a distance.2m from the origin. The mass per unit length 2 varies according to the expression λ = 5 + 2x2, measured in units of kg/m, where x is measured in meters from the origin. Set up but do not solve an integral that will allow you to find the gravitational force exerted by the rod on a 0.1 kg mass placed at the origin (Hint: An element...
A uniformly charged rod of length L=1.6 m lies along the x-axis with its right end at the origin. The rod has a total charge of Q = 2.6 uC.
A uniformly charged rod of length L=1.6 m lies along the x-axis with its right end at the origin. The rod has a total charge of Q = 2.6 uC. A point P is located on the x-axis a distance a = 1.2 m to the right of the origin.Part (a) Consider a thin slice of the rod of thickness dr located a distance x away from the origin, what is the direction of the electric field t point P due...
Problem 1 A -2.80 jIC point charge is fixed at the origin of the x axis...
Problem 1 A -2.80 jIC point charge is fixed at the origin of the x axis A-7.80 pC point charge of mass 1.50 grams is moving along the x axis from the "x direction toward the charge at the origin. It has a speed of 22.0 m/s when it is at x -0.800 mIgnore gravity. Calculate (a) the total energy of the-7.80 pC when it is at r-0.800 m. 0.609 (b) the position along the x axis where the speed...
Where along the x axis will a third point charge of q = +2.00 nC
charge need to be for the net electric force on it due to the two
fixed charges to be equal to zero?
A point charge with charge q1 = +5.00 nC is fixed at the origin. A second point charge with charge q2 =-8.00 nC is located on the x axis at x -7.00 m.
A non-uniform rod of length 0.5m is placed along the x-axis at a distance.2m from the origin. The mass per unit length 2 varies according to the expression λ = 5 + 2x2, measured in units of kg/m, where x is measured in meters from the origin. Set up but do not solve an integral that will allow you to find the gravitational force exerted by the rod on a 0.1 kg mass placed at the origin (Hint: An element...
Problem 1 A -2.80 jIC point charge is fixed at the origin of the x axis A-7.80 pC point charge of mass 1.50 grams is moving along the x axis from the "x direction toward the charge at the origin. It has a speed of 22.0 m/s when it is at x -0.800 mIgnore gravity. Calculate (a) the total energy of the-7.80 pC when it is at r-0.800 m. 0.609 (b) the position along the x axis where the speed...
