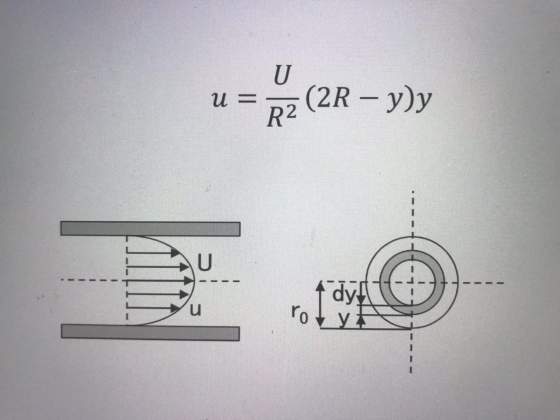

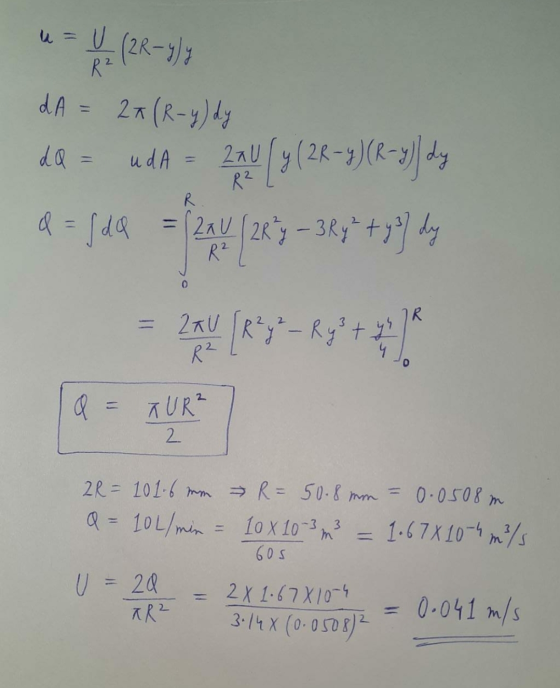

Find the flow rate Q when the flow velocity distribution u (m / s) in the pipeline with radius R (m) as shown in the figure below is expressed by the following equation as a function of the distance y (m) from the inner wall surface. However, U is the maximum flow velocity (m / s) in the central axis of the pipeline, and the flow velocity distribution u is symmetrical with respect to the central axis of the pipeline, and 0 ≦ y ≦ R. (Hint: The area of the gray part in the figure below (right) is dA and is represented by y and dy.)
When the inner diameter (= 2R) of the conduit is 101.6 mm and
the flow rate Q = 10 L / min, find the maximum flow velocity U. (2
significant digits and unit)
Homework Answers
Add Answer to:
Find the flow rate Q when the flow velocity distribution u (m /
s) in the...
The x and y components of velocity for 2D flow are u = 3 m/s and...
The x and y components of velocity for 2D flow are u = 3 m/s and v = 9x2 m/s, where x is in meter. Determine the equation of the streamlines (y) and plot the graph of the streamline when y = 0 for the range of -10 <=x <= 10 and -10 <= y <= 10
QUESTION 8 Find the ratio of Q/q for the E-field to be zero at a distance...
QUESTION 8 Find the ratio of Q/q for the E-field to be zero at a distance of z 2.64R for the charge distribution and geometry of problem 22.30 of the text 30 Figure 22-53 shows two concentric rings, of radii R and R'3.00R, that lie on the same plane. Point P lies on the central z axis, at distance D 2.00R from the center of the rings. The smaller ring has uniformly distributed charge +Q. In terms of Q, what...
A turbojet engine in a wind tunnel receives air at a velocity of U;= 100 m/s...
A turbojet engine in a wind tunnel receives air at a velocity of U;= 100 m/s and a density of p.= 1 kg/m'. The velocity is uniform and the cross-sectional area of the approaching stream which enters the engine is A = 0.1 m². The velocity of the exhaust jet from the engine, however, is not uniform but has a velocity which varies over the cross-section according to: u. = 2U (I-YIR) where the constant U= 600 m/s and R...
turbojet engine in a wind tunnel receives are velocity of U - 100 m/s and a...
turbojet engine in a wind tunnel receives are velocity of U - 100 m/s and a density of A-1 kg/m". The velocky is uniform and the cross-sectional area of the approaching stream which enters the engine is 0.1m. The velocity of the exhaust jet from the engine, however, is not uniform but has a velocity which varies over the cross-section according to: - 20 (1-PIR') where the constant U- 600 m/s and Ris the radius of the jet cross-section. Radial...
A particle of charge q--8.2 HC has a velocity of 555 m/s that lies in the...
A particle of charge q--8.2 HC has a velocity of 555 m/s that lies in the x-y plane and makes an angle of 65° with respect to the x axis as shown in the figure below. If there is a constant magnetic field of magnitude 1.7 T parallel to +y, what are the magnitude and direction of the magnetic force on the particle? magnitude 003 direction direction 65
Consider air flows with velocity of U?=U= 10 m/s over a semi-finite smooth flat plate with...
Consider air flows with velocity of U?=U= 10 m/s over a
semi-finite smooth flat plate with L=97 cm long. Calculate the
followings by assuming ? = 1.568 x 10-5 m2/s and ?=1.177
kg/m3.
Figure 1 : Boundary layer over a flat plate
Consider air flows with velocity of U?=U=10 m/s over a
semi-finite smooth flat plate with L=97 cm long. Calculate the
followings by assuming ? = 1.568 x 10-5 m2/s and ?=1.177
kg/m3.
b) Under some flow and boundary...
A fluid flows with a constant velocity v- 3k(m/s). Calculate the flow rate in (m1 /s) through the part of the elliptic paraboloid z-x2 +y with y' with :34 and upward pointing normal 10 y_3k(m / s...
A fluid flows with a constant velocity v- 3k(m/s). Calculate the flow rate in (m1 /s) through the part of the elliptic paraboloid z-x2 +y with y' with :34 and upward pointing normal 10 y_3k(m / s) Figure 2. Elliptic paraboloid for which flux of fluid will be calculated
A fluid flows with a constant velocity v- 3k(m/s). Calculate the flow rate in (m1 /s) through the part of the elliptic paraboloid z-x2 +y with y' with :34 and upward...

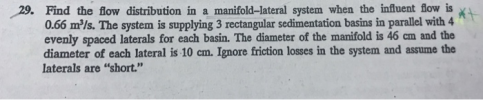

29. Find the flow distribution in a manifold-lateral system when the influent flow is 0.66 m'/s....
29. Find the flow distribution in a manifold-lateral system when the influent flow is 0.66 m'/s. The system is supplying 3 rectangular sedimentation basins in parallel with 4 evenly spaced laterals for each basin. The diameter of the manifold is 46 cm and the diameter of each lateral is 10 cm. Ignore friction losses in the system and assume the laterals are "short."
Find Pipe Velocity, volumetric flow rate, head delivered by pump and convert to Kj/s. Head loss...
Find Pipe Velocity, volumetric
flow rate, head delivered by pump and convert to Kj/s. Head loss is
50m or 27V^2/2g
Z2=100m
dit View Favorites Tools Help ¡Southwest Airlines My Ac., ?? Web Slice Gallery ? Zi-70 ml D-0.25 m Pump Click to see additional instructions In the figure, water is pumped from a lower reservoir to a higher reservoir through a pipe at a steady rate of flow. The pipe head loss is g Determine the pipe velocity, in units...
please help Question 1 1.1 If the velocity distribution of a fluid flowing over a 1m²...
please help
Question 1 1.1 If the velocity distribution of a fluid flowing over a 1m² flat plate is given by u=l+ y + y, find the m. Assume dynamic viscosity to be y=6x10*(Ns/m”). force acting on a plate at y = [5 marks] 1.2 A 2D velocity field in an incompressible flow was measured by PIV method and determined to follow the following functions u= 2x’ +2y and v=x - 4y. Check whether your measurements are correct at a...
QUESTION 8 Find the ratio of Q/q for the E-field to be zero at a distance of z 2.64R for the charge distribution and geometry of problem 22.30 of the text 30 Figure 22-53 shows two concentric rings, of radii R and R'3.00R, that lie on the same plane. Point P lies on the central z axis, at distance D 2.00R from the center of the rings. The smaller ring has uniformly distributed charge +Q. In terms of Q, what...
A turbojet engine in a wind tunnel receives air at a velocity of U;= 100 m/s and a density of p.= 1 kg/m'. The velocity is uniform and the cross-sectional area of the approaching stream which enters the engine is A = 0.1 m². The velocity of the exhaust jet from the engine, however, is not uniform but has a velocity which varies over the cross-section according to: u. = 2U (I-YIR) where the constant U= 600 m/s and R...
turbojet engine in a wind tunnel receives are velocity of U - 100 m/s and a density of A-1 kg/m". The velocky is uniform and the cross-sectional area of the approaching stream which enters the engine is 0.1m. The velocity of the exhaust jet from the engine, however, is not uniform but has a velocity which varies over the cross-section according to: - 20 (1-PIR') where the constant U- 600 m/s and Ris the radius of the jet cross-section. Radial...
A particle of charge q--8.2 HC has a velocity of 555 m/s that lies in the x-y plane and makes an angle of 65° with respect to the x axis as shown in the figure below. If there is a constant magnetic field of magnitude 1.7 T parallel to +y, what are the magnitude and direction of the magnetic force on the particle? magnitude 003 direction direction 65
A fluid flows with a constant velocity v- 3k(m/s). Calculate the flow rate in (m1 /s) through the part of the elliptic paraboloid z-x2 +y with y' with :34 and upward pointing normal 10 y_3k(m / s) Figure 2. Elliptic paraboloid for which flux of fluid will be calculated
A fluid flows with a constant velocity v- 3k(m/s). Calculate the flow rate in (m1 /s) through the part of the elliptic paraboloid z-x2 +y with y' with :34 and upward...
29. Find the flow distribution in a manifold-lateral system when the influent flow is 0.66 m'/s. The system is supplying 3 rectangular sedimentation basins in parallel with 4 evenly spaced laterals for each basin. The diameter of the manifold is 46 cm and the diameter of each lateral is 10 cm. Ignore friction losses in the system and assume the laterals are "short."
Find Pipe Velocity, volumetric
flow rate, head delivered by pump and convert to Kj/s. Head loss is
50m or 27V^2/2g
Z2=100m
dit View Favorites Tools Help ¡Southwest Airlines My Ac., ?? Web Slice Gallery ? Zi-70 ml D-0.25 m Pump Click to see additional instructions In the figure, water is pumped from a lower reservoir to a higher reservoir through a pipe at a steady rate of flow. The pipe head loss is g Determine the pipe velocity, in units...
please help
Question 1 1.1 If the velocity distribution of a fluid flowing over a 1m² flat plate is given by u=l+ y + y, find the m. Assume dynamic viscosity to be y=6x10*(Ns/m”). force acting on a plate at y = [5 marks] 1.2 A 2D velocity field in an incompressible flow was measured by PIV method and determined to follow the following functions u= 2x’ +2y and v=x - 4y. Check whether your measurements are correct at a...
