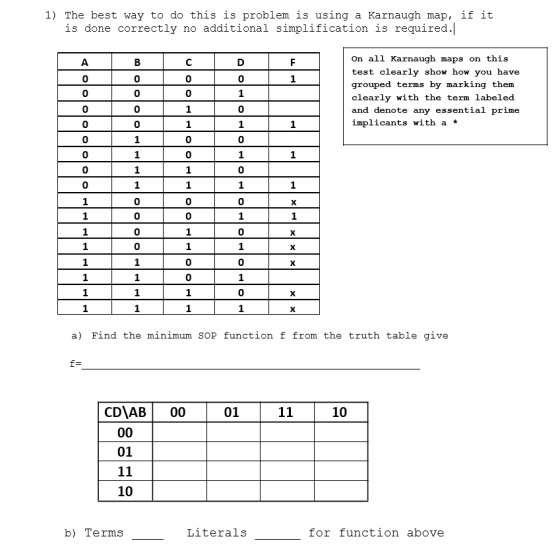

1) The best way to do this is problem is using a Karnaugh map, if it...

Question

Question

engineering Electrical-Engineering

Answer 1

Answer #1

CD 四1 12 1 0 TT M CD 0 O o X.

Answer 2

Similar Homework Help Questions

please answer #8 using #5, will give good rating 5) a. Fill in the Karnaugh map...

please answer #8 using #5, will give good rating 5) a. Fill in the Karnaugh map for function G described by G(A,B,C,D)= m(0,3,5,7,10,12,13,14,15) 10 00 * CD AB 00 010 11 10 01 11 * ) 11 O o 1 1 o b. place an asterisk in each box if it is an essential prime implicant c. simplify to find the minimum SOP, and write your answer here G= A B + 6 Dt Ä CD TACD'TA'B'C'D' d. terms 5...
Please answer question 7. Question 3 is provided to answer question 7. Clearly write what F',...

Please answer question 7. Question 3 is provided to answer question 7. Clearly write what F', F, number of terms, and number of literals are. F(A,B,C,D) = Σm(1,5,6,7, 11, 12, 13,15) 3) Using the Karnaugh map frame below for some function F 01 10 CD\AB 12 0 13 9 01 14 10 Lecture 7 slides 10, 11,12 implicant-this is a product term of the function. It is referred to as P. when Ps] the function F is 1 · .Prime...
For the following Karnaugh map, select all the terms that make up the minimized function that...

For the following Karnaugh map, select all the terms that make up the minimized function that is achieved in sum of products AB CD 00 01 11 10 00 1 0 0 1 01 1 1 X 1 11 1 х 0 1 10 1 0 1 X BC CD AB'C D C'D'

Assume a function F(a,b,c) is 0 when abc-010 or abc=101, and is 1 when abc are...

Assume a function F(a,b,c) is 0 when abc-010 or abc=101, and is 1 when abc are otherwise. Which Karnaugh-map correctly describes set of prime implicants for a minimum sum-of-products for the function F? C ab ab ab 00 00 00 01 01 10 11 11 10 11 10 3 2 1 O 1 only 2 only 03 only Both 1 and 2 are correct Both 1 and 3 are correct Both 2 and 3 are correct
What is the simplified function of the following Karnaugh Map? AB CD 00 01 11 10...

What is the simplified function of the following Karnaugh Map? AB CD 00 01 11 10 00 01 1 1 11 1 1 10 1 1 AC'+BD' O ABC+AD AD+A'C A'(C+D)
(a) List all seven product term implicants of F(a, b, c) = Σ m(0, 1, 5,...

(a) List all seven product term implicants of F(a, b, c) = Σ m(0, 1, 5, 7) Which of these implicants are prime? Why is a′c not an implicant? (b) Defne a prime implicant. (c) Why must every term in a minimum sum-of-products expression be a prime implicant? Check your answer using a Karnaugh map. 170 Unit 6 (d) Given that F(A, B, C, D) = Σ m(0, 1, 4, 5, 7, 10, 15), which of the following terms are...

Hi, need help for this Question regarding Karnaugh map Question: refer to below picture ion 1...

Hi, need help for this Question regarding Karnaugh map Question: refer to below picture ion 1 (continued) Construct the Karnaugh map for the logic function defined by the truth table of Figure 1b (where X's are "don't care" conditions), and find the minimum expression for the function. Design a circuit to implement this function using only 2-input NAND gates. Input Output LABCD z] 0000 0001 00100 001111 0100X 0 101 X 0110 0111X 10 000 1001 1 0 1 0...
(18 pts) Given the Boolean function F(A, B, C, D) = Σ (0, 1, 2, 3,...

(18 pts) Given the Boolean function F(A, B, C, D) = Σ (0, 1, 2, 3, 4, 5, 7, 8, 10, 12, 14) a. Draw a Karnaugh Map. b. Identify the prime implicants of F. c. Identify all Essential Prime Implicants of F. d. Derive minimal SOP expressions for F e. Derive minimal POS expressions for F. f. Assume each inverter has a cost of 1, each 2-input NAND gate has a cost of 2, and 4-input NAND gate has...
1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A...

1. Use K-maps to reduce each of the following to a minimized SOP form: (a) A + BC + CD (b) ABCD + ABCD + ABCD + ABCD (c) ABCD + CD) + ABCD + CD) + ABCD (d) (AB + ABXCD + CD) (e) AB + AB + CD + CD 2. Use K-maps to find the minimum SOP expression for the logic function shown in the table to the right. Implement the circuit using NAND gates only. Inputs...

Given the following Karnaugh map AB CD 00 01 11 10 01 011 Draw a circuit...

Given the following Karnaugh map AB CD 00 01 11 10 01 011 Draw a circuit that realizes the function above using one 8-to-1 multiplexer and any number of NAND gates. Observe that A, B and C are connected to the select inputs, SO, S1, and S2. 4-to-1 MUX -10 12 13 14 15 16 17 So Si S2 ABC
