1. Write regular expressions to capture the following regular languages: (a) The set of binary strings...
1. Write regular expressions to capture the following regular languages:
(a) The set of binary strings which have a 1 in every even position. (Note: odd positions may be either 0 or 1.)

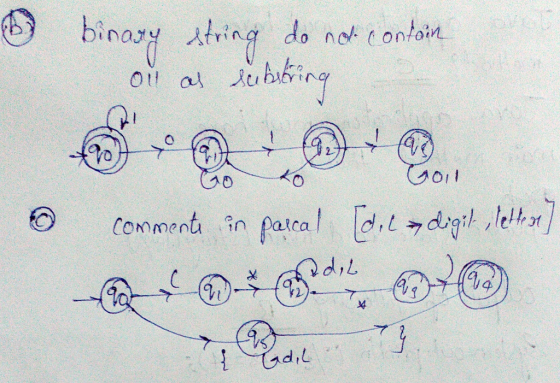

(b) The set of binary strings that do not contain 011 as a substring.
(c) Comments in Pascal. These are delimited by (* and *) or by { and }, and can contain anything in between; they are NOT allowed to nest, however.
2. Write a DFA or NFA to recognize the languages described in each part of problem 1.

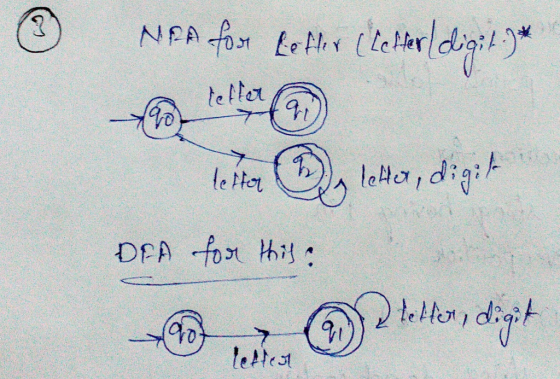

3. (a) Show the NFA that results from applying the standard construction to the regular expression letter(letter|digit)∗.
(b) Convert your NFA to a DFA
Homework Answers
