Find the self-inductance of a solenoid 70 cm long and 5.8 cm in diameter that contains...

Question

Question

Find the self-inductance of a solenoid 70 cm long and 5.8 cm in diameter that contains 2000 turns of wire.

science physics

Answer 1

Answer #1

L = uN^2A/l

= 4*3.14*10^-7 * 2000^2 * 3.14*(.058/2)^2/.7

= .0189 H = 18.9 *10^-3 H

Answer 2

Answer #2

L = (N^2)(mu)(Area)/(length)
mu = 4? x 10^-7 henry per meter
L = (2000)^2(4? x 10^-7)(5.8)/(70)
L = 0.4163 henry

Answer 3

Answer #3

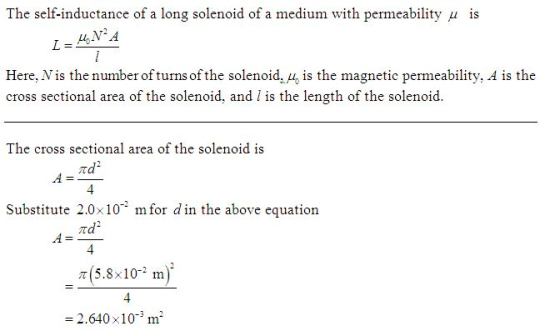

media%2Fc03%2Fc0379904-26b3-482b-b34c-27

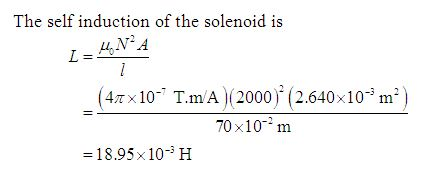

The self induction of the solenoid is μ.N2 A (47x10 T.mA)(2000). (2.640 x 10 m*) 70x10 m -1895 x10 H

Answer question

Answer 4

Similar Homework Help Questions

4. A 70-turn solenoid is 5.00 cm long, and is 1.00 cm in diameter. It carreis...

4. A 70-turn solenoid is 5.00 cm long, and is 1.00 cm in diameter. It carreis a 2.00-A current. A single loop of wire, 3.00 cm in diameter, is held so that the plane of the loop is perpendicular to the long axis of the solinoid (see figure). (a) What is the mutual inducance of the two if the plane of the loop passes through the solenoid 2.50 cm from one end? (b) Now disregard the loop of wire, and...
Find the cross-sectional area of a 5.4 cm long solenoid with 520 turns and a self-inductance...

Find the cross-sectional area of a 5.4 cm long solenoid with 520 turns and a self-inductance of 43 µH.
Find the cross-sectional area of a 5.6 cm long solenoid with 525 turns and a self-inductance...

Find the cross-sectional area of a 5.6 cm long solenoid with 525 turns and a self-inductance of 42 µH.

Find the cross-sectional area of a 5.0 cm long solenoid with 500 turns and a self-inductance...

Find the cross-sectional area of a 5.0 cm long solenoid with 500 turns and a self-inductance of 40 pJ-I. Please explain the process to get the answer.
(a) Calculate the self-inductance (in mH) of a 54.0 cm long, 10.0 cm diameter solenoid having...

(a) Calculate the self-inductance (in mH) of a 54.0 cm long, 10.0 cm diameter solenoid having 1000 loops. mH (b) How much energy (in )) is stored in this inductor when 19.5 A of current flows through it? J (c) How fast (in s) can it be turned off if the induced emf cannot exceed 3.00 V?
(a) Calculate the self-inductance (in mH) of a 47.0 cm long, 10.0 cm diameter solenoid having...

(a) Calculate the self-inductance (in mH) of a 47.0 cm long, 10.0 cm diameter solenoid having 1000 loops. 20.9 → mH (b) How much energy (in J) is stored in this inductor when 19.0 A of current flows through it? با (c) How fast (in s) can it be turned off if the induced emf cannot exceed 3.00 V? S

Calculate the self-inductance (in mH) of a 49.0 cm long, 10.0 cm diameter solenoid having 1000...

Calculate the self-inductance (in mH) of a 49.0 cm long, 10.0 cm diameter solenoid having 1000 loops. mH (b) How much energy (in J) is stored in this inductor when 22.0 A of current flows through it? J (c) How fast (in s) can it be turned off if the induced emf cannot exceed 3.00 V? s †
4. A given solenoid consists of 7250 turns of wire, has a diameter of 4.4 cm...

4. A given solenoid consists of 7250 turns of wire, has a diameter of 4.4 cm and is 23 cm long. a. What is the self inductance of this solenoid? b. Suppose that the current flowing through this solenoid is initially 12.5 Amperes and is decreasing at a rate of 22.0 Amperes/second. What will be the EMF generated across this coil as a result of this changing current? c. Suppose that this coil is surrounded by a second coil which...
A 10.0 cm-long solenoid of diameter 0.400 cm is wound uniformly with 800 turns. A second...

A 10.0 cm-long solenoid of diameter 0.400 cm is wound uniformly with 800 turns. A second coil with 50.0 turns is wound around the solenoid at its center. a) What is the mutual inductance of the combination of the two coils?
