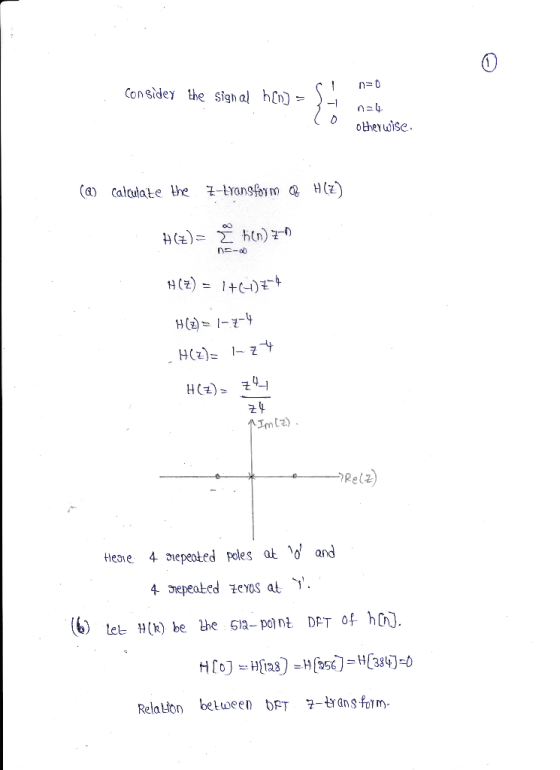

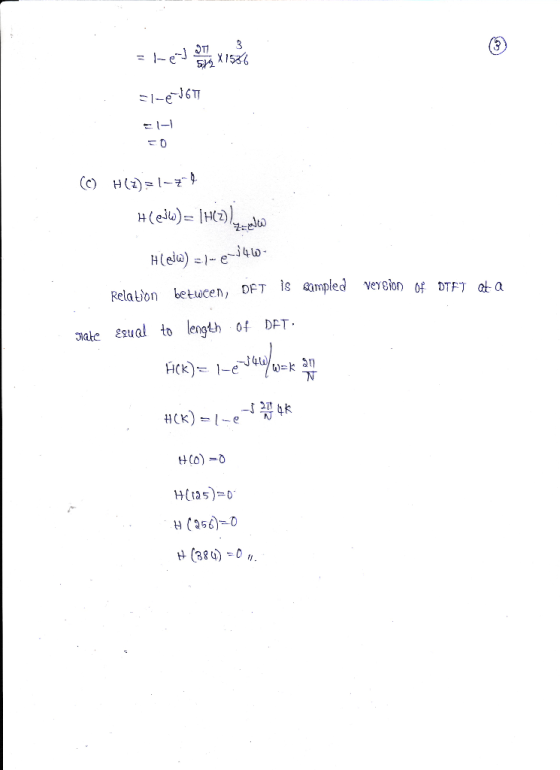

![Question 2: Consider the signal h[n] given by 11 n=0 h[n] = { -1 n=4 10 otherwise a) Calculate the z-transform H(z). Find its](http://img.homeworklib.com/questions/75b70500-3767-11eb-ae01-61ee541bce55.png?x-oss-process=image/resize,w_560)
Homework Answers
ANSWER
Given that

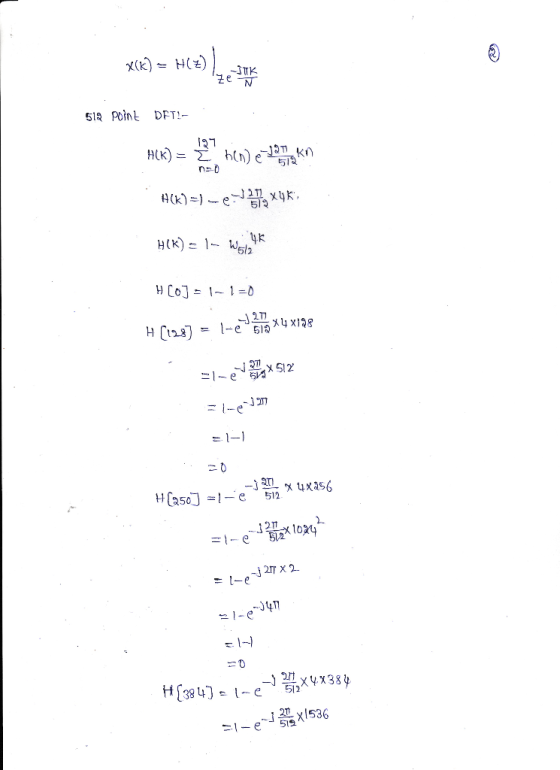

![X(k) = HCE) 12.3K 512 Point DFT- HUK) = 8 bit) - ko H(K) =) -- 1872x4K; H(K) = |- Willk H CO]=1-1=0 1211 H (1287 = l-e513 X4x](http://img.homeworklib.com/questions/76d5dc80-3767-11eb-86d7-4dbe97c25716.png?x-oss-process=image/resize,w_560)
Add Answer to:
Question 2: Consider the signal h[n] given by 11 n=0 h[n] = { -1 n=4 10...
Consider the DT LTI system defined by the mpulse response h[n] = ?[n] The input to...
Consider the DT LTI system defined by the mpulse response h[n] = ?[n] The input to this system is the signal rn: ?[n-1) (a) Sketch h[n] and r[n] (b) Determine the output of the systern, ylnj, using convolution. Sketch y[n] (c) Determine the DTFTs H(e) and X(e. Make fully-labeled sketches of the magni- tudes of these DTFTs (d) Recall that the discrete Fourier transform (DFT) is simply defined as samples of the discrete-time Fourier transform (DTFT). Compute the 4-point (N-4)...
Question 3 Consider a discrete-time signal sequence given as follow: *(n) = cos ) for 0...
Question 3 Consider a discrete-time signal sequence given as follow: *(n) = cos ) for 0 Sns3 3 ) Calculate the 4-point Discrete Fourier Transform (DFT) of x(n). (15 marks) Calculate the radix-2 Fast Fourier Transform (FFT) for x(n). (10 marks) [Total: 25 marks) Ouestion 4 digital low-pass filter design based on an analog Chevyshev Type 1 filter requires to meet the following specifications: Passband ripple: <1dB Passband edge: 500 Hz. Stopband attenuation: > 40 dB Stopband edge: 1000 Hz...
[20 total pts) Consider the sequences x1n] = { 1, 2,-2, 1}, and x2 [n] =...
[20 total pts) Consider the sequences x1n] = { 1, 2,-2, 1}, and x2 [n] = { 1, 2,-2, 1, 0, 0, 0, 0). The sequence x2In] is known as a zero-padded version of x,[n]. When answering the questions below, please use Table 1, provided on Page 3. a. [3 pts] Compute X1(eo), the Discrete-Time Fourier Transform (DTFT) of x1 [n], and evaluate it for the following values of normalized frequency: a-63 笎哮,쯤뀨 write the values in the table b....
x[n] = { Consider the discrete sequence S (0.5)" 0<n<N-1 otherwise a) Determine the z-transform X(2)!...
x[n] = { Consider the discrete sequence S (0.5)" 0<n<N-1 otherwise a) Determine the z-transform X(2)! b) Determine and plot the poles and zeros of X(2) when N = 8!
shown that the discrete Pourier transform(DFT) of a time-varying process h(4) for (k = 0, 1, 2, . .. ,N-1), is give...
shown that the discrete Pourier transform(DFT) of a time-varying process h(4) for (k = 0, 1, 2, . .. ,N-1), is given by N-1 Choosing N-8 carry out the Cooley-Tukey formulation of FFT by following the steps below. (a) Write the expressions for DFT H, in terms of hite) and the inverse DFT h(te) in terms of H, for N 8 (b) Define W-ca/N and rewrite (a) using W (c) Express (b) in matrix form. (d) Express n and k...
I will upvote if u will solve What u need? DFT can also be obtained using matrix multiplication. Let X[r] show the transformed values and x[n] show the original signal. Using the analysis equa...
I will upvote if u will solve
What u need?
DFT can also be obtained using matrix multiplication. Let X[r] show the transformed values and x[n] show the original signal. Using the analysis equation: Using matrix multiplication, this operation can be written as x[O X[1 1 e(2m/N) e-K4n/N) x12] [N-1]] e-j(2(N-1)T/N)e-j(4(N-1)m/N) Instead of huilt-in EFT function use matrix multinlication to solve 3th auestion [ 1 e-/(2(N-1)(N-1)T/N)]Le[N-1] DFT is an extension of DTFT in which frequency is discretized to a finite...
DSP 4. (12 points) (a) (4 points) Let x[n] = {1,2, 1, 2} and h[n] =...
DSP
4. (12 points) (a) (4 points) Let x[n] = {1,2, 1, 2} and h[n] = {1,-1,1, -1} be two length-4 sequences defined for 0 <n<3. Determine the circular convolution of length-4 y[n] = x[n] 4 hin). (b) (6 points) Find the 4-point discrete Fourier transform (DFT) X[k], H[k], and Y[k]. (c) (2 points) Find the 4-point inverse DFT (IDFT) of Z[k] = {X[k]H[k].
(a) Based on the following discrete-time signal x[n], [n] →n -2 -1 0 1 2 3...
(a) Based on the following discrete-time signal x[n], [n] →n -2 -1 0 1 2 3 4 i. [5%] determine the Fourier transform (i.e., X(ein)) and sketch the magnitude spectrum. ii. [4%] Given the following signal Xp[n], which is the periodic version of x[n] with period 4. Derive the Fourier series coefficients of yn], i.e., {ax}. xp[n] -1 1 2 3 4 5 iii. [4%] Hence, derive the Fourier transform of ap[n], i.e., Xp(es"). iv. [5%] Based on the results...
Problem 10: a) Given the following sequence: x[n]={1, 2, 3, 4} where x[?= 1. Use the...
Problem 10: a) Given the following sequence: x[n]={1, 2, 3, 4} where x[?= 1. Use the decimation in time FFT algorithm to compute the 4-point DFT of the sequence X[k]. Draw the signal flow & the butterfly structure and clearly label the branches with the intermediate values and the twiddle factors W = e- /2nk b) The inverse discrete Fourier transform can be calculated using the same structure and method but after appropriately changing the variable WN and multiplying the...
Question 4 (a) Find the DFT of the series x[n)-(0.2,1,1,0.2), and sketch the magnitude of the resulting spectral components [10 marks] (b) For a discrete impulse response, h[n], that is symmetric...
Question 4 (a) Find the DFT of the series x[n)-(0.2,1,1,0.2), and sketch the magnitude of the resulting spectral components [10 marks] (b) For a discrete impulse response, h[n], that is symmetric about the origin, the spectral coefficients of the signal, H(k), can be obtained by use of the DFT He- H(k)- H-(N-1)/2 Conversely, if the spectral coefficients, H(k), are known (and are even and symmetrical about k-0), the original signal, h[n], can be reconstituted using the inverse DFT 1 (N-D/2...
Consider the DT LTI system defined by the mpulse response h[n] = ?[n] The input to this system is the signal rn: ?[n-1) (a) Sketch h[n] and r[n] (b) Determine the output of the systern, ylnj, using convolution. Sketch y[n] (c) Determine the DTFTs H(e) and X(e. Make fully-labeled sketches of the magni- tudes of these DTFTs (d) Recall that the discrete Fourier transform (DFT) is simply defined as samples of the discrete-time Fourier transform (DTFT). Compute the 4-point (N-4)...
Question 3 Consider a discrete-time signal sequence given as follow: *(n) = cos ) for 0 Sns3 3 ) Calculate the 4-point Discrete Fourier Transform (DFT) of x(n). (15 marks) Calculate the radix-2 Fast Fourier Transform (FFT) for x(n). (10 marks) [Total: 25 marks) Ouestion 4 digital low-pass filter design based on an analog Chevyshev Type 1 filter requires to meet the following specifications: Passband ripple: <1dB Passband edge: 500 Hz. Stopband attenuation: > 40 dB Stopband edge: 1000 Hz...
[20 total pts) Consider the sequences x1n] = { 1, 2,-2, 1}, and x2 [n] = { 1, 2,-2, 1, 0, 0, 0, 0). The sequence x2In] is known as a zero-padded version of x,[n]. When answering the questions below, please use Table 1, provided on Page 3. a. [3 pts] Compute X1(eo), the Discrete-Time Fourier Transform (DTFT) of x1 [n], and evaluate it for the following values of normalized frequency: a-63 笎哮,쯤뀨 write the values in the table b....
x[n] = { Consider the discrete sequence S (0.5)" 0<n<N-1 otherwise a) Determine the z-transform X(2)! b) Determine and plot the poles and zeros of X(2) when N = 8!
shown that the discrete Pourier transform(DFT) of a time-varying process h(4) for (k = 0, 1, 2, . .. ,N-1), is given by N-1 Choosing N-8 carry out the Cooley-Tukey formulation of FFT by following the steps below. (a) Write the expressions for DFT H, in terms of hite) and the inverse DFT h(te) in terms of H, for N 8 (b) Define W-ca/N and rewrite (a) using W (c) Express (b) in matrix form. (d) Express n and k...
I will upvote if u will solve
What u need?
DFT can also be obtained using matrix multiplication. Let X[r] show the transformed values and x[n] show the original signal. Using the analysis equation: Using matrix multiplication, this operation can be written as x[O X[1 1 e(2m/N) e-K4n/N) x12] [N-1]] e-j(2(N-1)T/N)e-j(4(N-1)m/N) Instead of huilt-in EFT function use matrix multinlication to solve 3th auestion [ 1 e-/(2(N-1)(N-1)T/N)]Le[N-1] DFT is an extension of DTFT in which frequency is discretized to a finite...
DSP
4. (12 points) (a) (4 points) Let x[n] = {1,2, 1, 2} and h[n] = {1,-1,1, -1} be two length-4 sequences defined for 0 <n<3. Determine the circular convolution of length-4 y[n] = x[n] 4 hin). (b) (6 points) Find the 4-point discrete Fourier transform (DFT) X[k], H[k], and Y[k]. (c) (2 points) Find the 4-point inverse DFT (IDFT) of Z[k] = {X[k]H[k].
(a) Based on the following discrete-time signal x[n], [n] →n -2 -1 0 1 2 3 4 i. [5%] determine the Fourier transform (i.e., X(ein)) and sketch the magnitude spectrum. ii. [4%] Given the following signal Xp[n], which is the periodic version of x[n] with period 4. Derive the Fourier series coefficients of yn], i.e., {ax}. xp[n] -1 1 2 3 4 5 iii. [4%] Hence, derive the Fourier transform of ap[n], i.e., Xp(es"). iv. [5%] Based on the results...
Problem 10: a) Given the following sequence: x[n]={1, 2, 3, 4} where x[?= 1. Use the decimation in time FFT algorithm to compute the 4-point DFT of the sequence X[k]. Draw the signal flow & the butterfly structure and clearly label the branches with the intermediate values and the twiddle factors W = e- /2nk b) The inverse discrete Fourier transform can be calculated using the same structure and method but after appropriately changing the variable WN and multiplying the...
Question 4 (a) Find the DFT of the series x[n)-(0.2,1,1,0.2), and sketch the magnitude of the resulting spectral components [10 marks] (b) For a discrete impulse response, h[n], that is symmetric about the origin, the spectral coefficients of the signal, H(k), can be obtained by use of the DFT He- H(k)- H-(N-1)/2 Conversely, if the spectral coefficients, H(k), are known (and are even and symmetrical about k-0), the original signal, h[n], can be reconstituted using the inverse DFT 1 (N-D/2...
