1.) What is the fill factor of a solar cell having maximum power P(max) = 1.5...

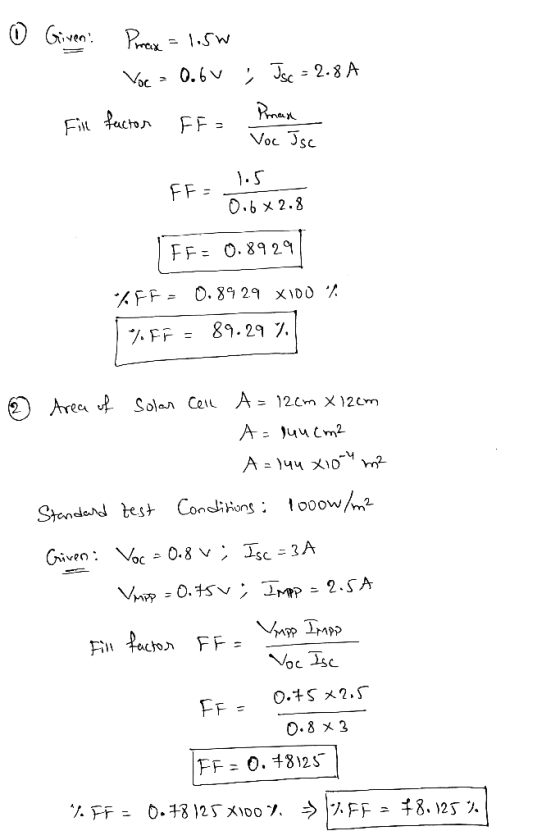

1.) What is the fill factor of a solar cell having maximum power P(max) = 1.5 W? The open circuit voltage and short circuit current of the cell are V(oc) = .6 V and J(sc) = 2.8 A, respectively.
2.) A solar cell with dimensions 12 cm x 12 cm is illuminated at standard test conditions. The cell has the following external parameters: V(oc) = .8 V, I(sc) = 3 A, V(MPP) = .75 V, I(MPP) = 2.5 A. Calculate the fill factor and efficiency of this solar cell.
Homework Answers
Add Answer to:
1.) What is the fill factor of a solar cell having maximum power
P(max) = 1.5...
Example Key Parameters A silicon solar cell (bandgap 1.12 eV) is uniformly illuminated by monochromatic light...
Example Key Parameters A silicon solar cell (bandgap 1.12 eV) is uniformly illuminated by monochromatic light of wavelength 600 nm and intensity 40 mW/cm2. Given that its external quantum efficiency at this wavelength is 0.9 the ideality factor is 1.5, and the dark saturation current density is 3 pA/cm2 i calculate the short circuit current of the cell if its area is 2 cmA2 calculate the open circuit voltage iii) fill factor iv) energy conversion efficiency
No graph provided. Example 4 A solar cell with a surface area of 4.8 cm2 under...
No graph provided.
Example 4 A solar cell with a surface area of 4.8 cm2 under irradiation of 1000 W/m2 has a reverse saturation (dark) current lo of 5.5 x 10-15 mA, the short circuit current of Isc =120 MA. At the cell temperature of 25 C° = 298 K, the P-N junction thermal voltage Vth =KT/q is 0.026 V. Determine: (i) The open circuit voltage Voc, (ii) The maximum voltage and current (Vm and Im) at the MPP (max...
A solar cell (0.9 cm2 ) receives solar radiation with photons of 1.8 eV energy having...
A solar cell (0.9 cm2 ) receives solar radiation with photons of 1.8 eV energy having intensity of 0.9 mW/cm2 . Measurements show open-circuit voltage of 0.6 V/cm2 , short-circuit current of 10 mA/cm2 , and maximum current is 50% of the short-circuit current. Efficiency of the cell is 25%. Calculate the maximum voltage that the cell can provide and the Form Factor
2. A solar cell has a short circuit current Isc 2.2 A and an open circuit voltage Voc = 0.6 V at room temperature (293 K). Calculate the output power of the solar cell versus the operation voltag...
2. A solar cell has a short circuit current Isc 2.2 A and an open circuit voltage Voc = 0.6 V at room temperature (293 K). Calculate the output power of the solar cell versus the operation voltage V. Find the maximum outpout power and calculate the fill factor. 4 points 3. A solar cel has a short circuit current Isc2.2 A and an open circuit voltage Voc-0.6V at room temperature (293 K). If the temperature is increased to 400...
Module 6: Performance parameters of Solar Cell (Total points 16, Bonus 5) 1. Following is I-V...
Module 6: Performance parameters of Solar Cell (Total points 16, Bonus 5) 1. Following is I-V data of a perovskite double junction tandem solar cell, obtained at standard testing condition (STC). The solar cell has length 10 mm and width 10 mm. (Points 21) Data # | 1 Voltage -0.23 0.08 0.00 0.23 0.53 0.83 098 1.13 1.28 1.43 1.58 1.731 Current -11 10.8 10.6 10.298 9.2 -8.8 8 6 4 02 (mA) I-V Characeristics 2.5 Voltage/ 12 a. At...
Given that solar cell is silicon cell that has temperature equal to 300k. At 82.1 % illumination,...
Given that solar cell is silicon cell that has temperature equal to 300k. At 82.1 % illumination, The V open circuit equals 800 mV and the Jsc ( sc is the short circuit) is equal to 23 mA/cm. At 28.6% illumination, Voc is 759 mV , Jsc = 8 mA/cm^2. Q: If the generated maximum power is required a load of RL 31cm^2. Find out voltage ‘Vm’ and current density ‘Jm’ at the max. power point.
Q2. Consider an ideal solar cell (area 200 cm2) under 1 Sun with following parameters: Isc...
Q2. Consider an ideal solar cell (area 200 cm2) under 1 Sun with following parameters: Isc 10 A; 1o 1 nA current LOAD a) Draw the equivalent circuit diagram for this ideal solar cell. (5 points) b) What is the open circuit voltage for this solar cell? (5 points) c) What is the load current when voltage across the load is V-0.55 V. (5 points)? d) How much power is lost in the solar cell when V= 0.55V under i...
2. A solar cel has a short current Isc 2.2 A and an open circuit voltage Voc- 0.6 V at room temperature (293 K). Calculate the output power of the solar cell versus the operation voltage V. Fin...
2. A solar cel has a short current Isc 2.2 A and an open circuit voltage Voc- 0.6 V at room temperature (293 K). Calculate the output power of the solar cell versus the operation voltage V. Find the maximum outpout power and calculate the fill factor 4 points
2. A solar cel has a short current Isc 2.2 A and an open circuit voltage Voc- 0.6 V at room temperature (293 K). Calculate the output power of the solar...
You are planning to make a module with the solar cell properties of which are given...
You are planning to make a module with the solar cell properties of which are given bellow. Now answer the following questions: a. What is the field factor of this solar cell? b. What is the maximum power that can be extracted from this solar cell? c. What is the efficiency of the solar cell? d. How many solar cell you need to have approximate voltage and current of 40 V and 20 A respectively (Vmp and Imp of the...
could you please help me go through these Two similar questions with a detailed explanation? Many thanks A photo voltaic cell generates an open circuit voltage of 0.72 V and a short circuit curr...
could you please help me go through these Two similar questions
with a detailed explanation?
Many thanks
A photo voltaic cell generates an open circuit voltage of 0.72 V and a short circuit current of 350 mA whenmiated by light wi ketch the V-I characteristic of the cell under these conditions. Estimate the open circuit voltage and the short circuit current when illuminated by a light with power density of 600 Wm 8. ith power density 1000 Wms 3. The...
Example Key Parameters A silicon solar cell (bandgap 1.12 eV) is uniformly illuminated by monochromatic light of wavelength 600 nm and intensity 40 mW/cm2. Given that its external quantum efficiency at this wavelength is 0.9 the ideality factor is 1.5, and the dark saturation current density is 3 pA/cm2 i calculate the short circuit current of the cell if its area is 2 cmA2 calculate the open circuit voltage iii) fill factor iv) energy conversion efficiency
No graph provided.
Example 4 A solar cell with a surface area of 4.8 cm2 under irradiation of 1000 W/m2 has a reverse saturation (dark) current lo of 5.5 x 10-15 mA, the short circuit current of Isc =120 MA. At the cell temperature of 25 C° = 298 K, the P-N junction thermal voltage Vth =KT/q is 0.026 V. Determine: (i) The open circuit voltage Voc, (ii) The maximum voltage and current (Vm and Im) at the MPP (max...
2. A solar cell has a short circuit current Isc 2.2 A and an open circuit voltage Voc = 0.6 V at room temperature (293 K). Calculate the output power of the solar cell versus the operation voltage V. Find the maximum outpout power and calculate the fill factor. 4 points 3. A solar cel has a short circuit current Isc2.2 A and an open circuit voltage Voc-0.6V at room temperature (293 K). If the temperature is increased to 400...
Module 6: Performance parameters of Solar Cell (Total points 16, Bonus 5) 1. Following is I-V data of a perovskite double junction tandem solar cell, obtained at standard testing condition (STC). The solar cell has length 10 mm and width 10 mm. (Points 21) Data # | 1 Voltage -0.23 0.08 0.00 0.23 0.53 0.83 098 1.13 1.28 1.43 1.58 1.731 Current -11 10.8 10.6 10.298 9.2 -8.8 8 6 4 02 (mA) I-V Characeristics 2.5 Voltage/ 12 a. At...
Q2. Consider an ideal solar cell (area 200 cm2) under 1 Sun with following parameters: Isc 10 A; 1o 1 nA current LOAD a) Draw the equivalent circuit diagram for this ideal solar cell. (5 points) b) What is the open circuit voltage for this solar cell? (5 points) c) What is the load current when voltage across the load is V-0.55 V. (5 points)? d) How much power is lost in the solar cell when V= 0.55V under i...
2. A solar cel has a short current Isc 2.2 A and an open circuit voltage Voc- 0.6 V at room temperature (293 K). Calculate the output power of the solar cell versus the operation voltage V. Find the maximum outpout power and calculate the fill factor 4 points
2. A solar cel has a short current Isc 2.2 A and an open circuit voltage Voc- 0.6 V at room temperature (293 K). Calculate the output power of the solar...
could you please help me go through these Two similar questions
with a detailed explanation?
Many thanks
A photo voltaic cell generates an open circuit voltage of 0.72 V and a short circuit current of 350 mA whenmiated by light wi ketch the V-I characteristic of the cell under these conditions. Estimate the open circuit voltage and the short circuit current when illuminated by a light with power density of 600 Wm 8. ith power density 1000 Wms 3. The...
