Problem 6 (13 points) The page table below is for a system with 16-bit virtual as...
Problem 6 (13 points) The page table below is for a system with 16-bit virtual as well as physica...

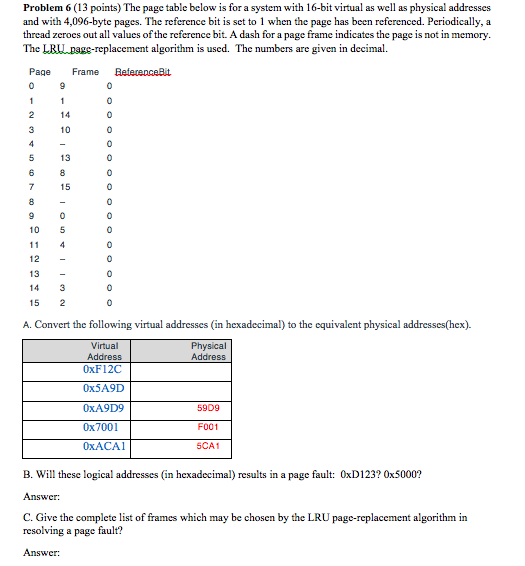

Problem 6 (13 points) The page table below is for a system with 16-bit virtual as well as physical addresses and with 4,096-byte pages. The reference bit is set to 1 when the page has been referenced. Periodically, a thread zeroes out all values of the reference bit. A dash for a page frame indicates the page is not in memory. The LRll pagg-replacement algorithm is used. The numbers are given in decimal Page Frame eferepceit 14 10 13 15...

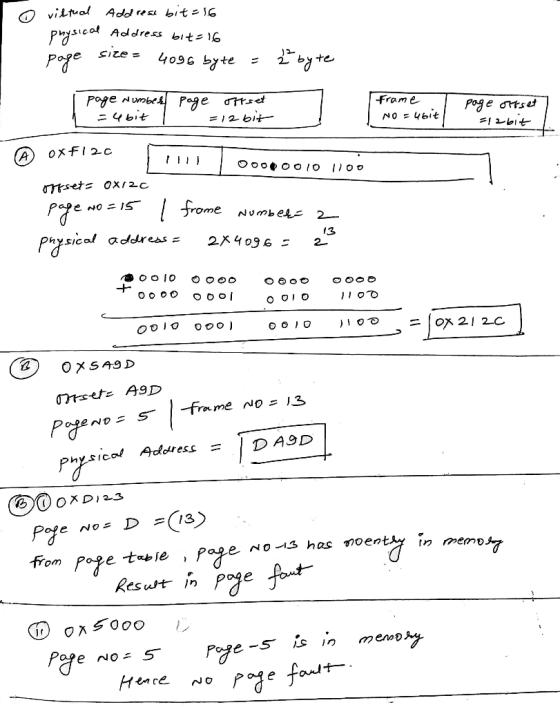

For part A: convert the virtual address into page numbers and offset, and then into hexadecimal...
For part A: convert the virtual address into page numbers and
offset, and then into hexadecimal numbers. Redraw the page table
showing which pages were referenced and in any needed to be loaded
into memory and what frame was selected. Assume frames 6,7,11,and
12 are available.
9.22 The page table shown in Figure 9.32 is for a system with 16-bit virtual and physical addresscs and with 4,096-byte pages. The reference bit is been referenced. Periodically, a thread zeroes out all...
1) The following page table illustrates a system with 12-bit virtual and physical addresses and 256-byte...
1) The following page table illustrates a system with 12-bit virtual and physical addresses and 256-byte pages. Free page frames are to be allocated in the order9 F, D. A dash for a page frame indicates that the page is not in memory. (4 points) Page Page-Frame 0x4 OxB 0 2 4 0x2 0x0 0xC 7 Convert the following virtual addresses to their equivalent physical addresses irn hexadecimal. All numbers are given in hexadecimal. In the case of a page...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and with 4096-byte pages. All numbers below are given in hexadecimal. (A dash for a page frame indicates that the page is not in memory.) Page Number Physical Frame Number 0 - 1 2 2 C 3 A 4 - 5 4 6 3 7 - 8 B 9 0 How many bits are in the offset part of the address? How many hex digits...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and...
Consider the page table shown below for a system with 16-bit virtual and physical addresses and with 4096-byte pages. All numbers below are given in hexadecimal. (A dash for a page frame indicates that the page is not in memory.) Page Number Physical Frame Number 0 - 1 2 2 C 3 A 4 - 5 4 6 3 7 - 8 B 9 0 Convert the following virtual addresses to their equivalent physical addresses in hexadecimal. a) 9EF5 b)...
page addressing (a) The following are virtual 16 Considered bit-addresses, with the upper 8th Bit the...
page addressing (a) The following are virtual 16 Considered bit-addresses, with the upper 8th Bit the number of the page and the lower one 8th Bit represent the offset. The physical memory included in this example 256 Page frames ( frames ) to each 256 Bytes per page, ie physical addresses from 0x0000 to 0xFFFF, where frame 0 at 0x0000 starts. Given the following page table for a process that 10 Pages (page numbers 0 - 9), some of which...
3. Virtual Memory (20 points) An ISA supports an 8 bit, byte-addressable virtual address space. The...
3. Virtual Memory (20 points) An ISA supports an 8 bit, byte-addressable virtual address space. The corresponding physical memory has only 256 bytes. Each page contains 32 bytes. A simple, one-level translation scheme is used and the page table resides in physical memory. The initial contents of the frames of physical memory are shown below. VALUE address size 8 bit byte addressable each byte of addressing type memory has its own address 32 B page size physical memory size 256...
Please help me with the following question. Please show your work so I can understand how...
Please help me with the following question. Please show your
work so I can understand how you arrived at the solution. PLEASE DO
NOT COPY OTHER ANSWERS FROM THE INTERNET. Those answers are
incorrect and or do not show work.
The following is a page table for a system with 12-bit
virtual and physical addresses and 256-byte pages. Free page frames
are to be allocated in the order 9, F, D.
**A dash for a page frame indicates that the...
17. A computer system implements a paged virtual memory system. Assume a 16-bit virtual address space...
17. A computer system implements a paged virtual memory system. Assume a 16-bit virtual address space and a 24-bit physical address space. Assume that the first 6 bits of a virtual address index the page table and the rest of the bits are the page offset. A process has the following indexed page table. Index Page Table Entry (PTE) 0x3800 0x3600 0x3200 0x1000 2 3 Each page table entry qives a hexadecimal page frame addresses. Translate the following two hexadecimal...
Consider the following virtual page reference sequence: page 1, 2, 3, 4, 2, 1, 5, 6,...
Consider the following virtual page reference sequence: page 1, 2, 3, 4, 2, 1, 5, 6, 2, 1, 2, 3. This indicates that these particular pages need to be accessed by the computer in the order shown. Consider each of the following 4 algorithm-frame combinations: LRU with 3 frames FIFO with 3 frames LRU with 4 frames FIFO with 4 frames . For each of the 4 combinations, below, move from left to right as the virtual page numbers are...
Problem 6 (13 points) The page table below is for a system with 16-bit virtual as well as physical addresses and with 4,096-byte pages. The reference bit is set to 1 when the page has been referenced. Periodically, a thread zeroes out all values of the reference bit. A dash for a page frame indicates the page is not in memory. The LRll pagg-replacement algorithm is used. The numbers are given in decimal Page Frame eferepceit 14 10 13 15...
For part A: convert the virtual address into page numbers and
offset, and then into hexadecimal numbers. Redraw the page table
showing which pages were referenced and in any needed to be loaded
into memory and what frame was selected. Assume frames 6,7,11,and
12 are available.
9.22 The page table shown in Figure 9.32 is for a system with 16-bit virtual and physical addresscs and with 4,096-byte pages. The reference bit is been referenced. Periodically, a thread zeroes out all...
1) The following page table illustrates a system with 12-bit virtual and physical addresses and 256-byte pages. Free page frames are to be allocated in the order9 F, D. A dash for a page frame indicates that the page is not in memory. (4 points) Page Page-Frame 0x4 OxB 0 2 4 0x2 0x0 0xC 7 Convert the following virtual addresses to their equivalent physical addresses irn hexadecimal. All numbers are given in hexadecimal. In the case of a page...
3. Virtual Memory (20 points) An ISA supports an 8 bit, byte-addressable virtual address space. The corresponding physical memory has only 256 bytes. Each page contains 32 bytes. A simple, one-level translation scheme is used and the page table resides in physical memory. The initial contents of the frames of physical memory are shown below. VALUE address size 8 bit byte addressable each byte of addressing type memory has its own address 32 B page size physical memory size 256...
Please help me with the following question. Please show your
work so I can understand how you arrived at the solution. PLEASE DO
NOT COPY OTHER ANSWERS FROM THE INTERNET. Those answers are
incorrect and or do not show work.
The following is a page table for a system with 12-bit
virtual and physical addresses and 256-byte pages. Free page frames
are to be allocated in the order 9, F, D.
**A dash for a page frame indicates that the...
17. A computer system implements a paged virtual memory system. Assume a 16-bit virtual address space and a 24-bit physical address space. Assume that the first 6 bits of a virtual address index the page table and the rest of the bits are the page offset. A process has the following indexed page table. Index Page Table Entry (PTE) 0x3800 0x3600 0x3200 0x1000 2 3 Each page table entry qives a hexadecimal page frame addresses. Translate the following two hexadecimal...
