Homework Answers
object distance p = 81 cm
radius of curvature R = 2 cm
image distacne q = ?
from mirror equation
1/p + 1/q = 2/R
1/81 + 1/q = 2/27
q = 16.2 cm
(c)
image is real
(d)
hi/ho = q/p
hi/9 = 16.2/81
height = 1.8 cm <<<<<<==ANSWER
Add Answer to:

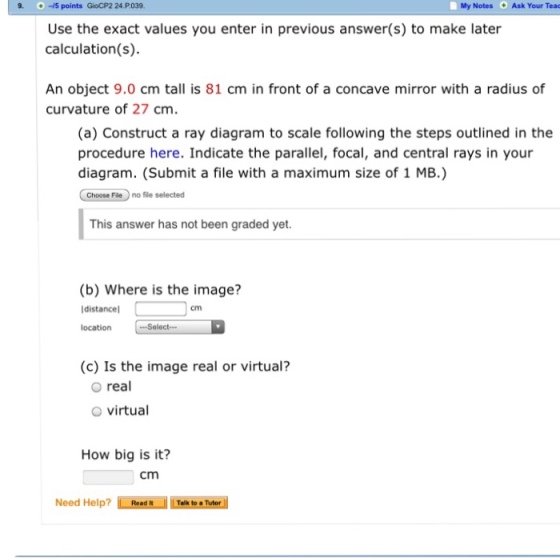

Use the exact values you enter in previous answer(s) to make later calculation(s). An object 9.0...
