PLEASE SHOW WORK. WILL UPVOTE! Only need Shear & Moment Diagrams
Homework Answers
If you found it useful please rate the solution.
Add Answer to:
PLEASE SHOW WORK. WILL UPVOTE! Only need Shear &
Moment Diagrams

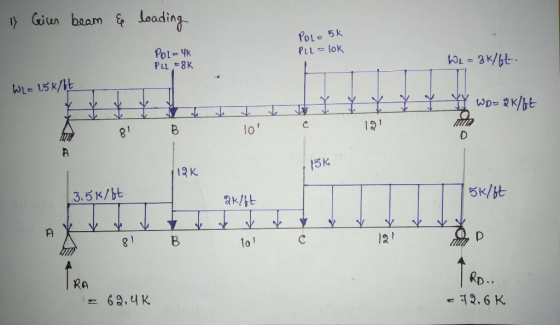

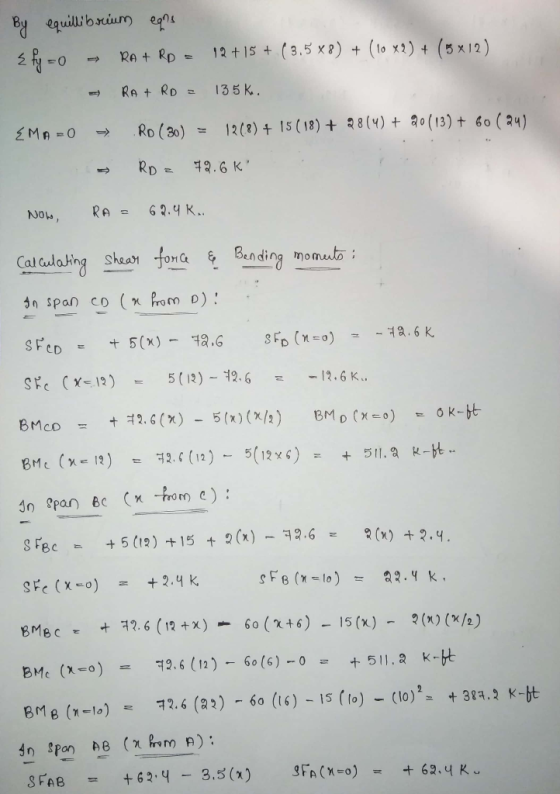

5) A 30 foot long...
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure....
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure. The uniformly distributed dead load, wD, includes the self weight of the girder, and is constant along the full beam length. Concentrated live loads, PL, are applied as shown in the figure. a) Draw factored shear force and factored bending moment diagrams in the spaces provided. Show magnitudes at locations A, B, C, D and E on each diagram.(8) PL = 50k PL-50k WD-2.5...
A simply supported beam as shown in the figure. The beam section is W18x211. The beam...
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
Problems 1.-5. Draw complete shear and moment diagrams resulting from the loads indicated for the beams...
Problems 1.-5. Draw complete shear and moment diagrams resulting from the loads indicated for the beams shown. Show ordinates at key points and indicate the magnitude of shear and moment at these points. Calculate the maximum bending stress due to the applied loads. Beam sections are 1) L6x6x1, 2) C10x30, 3) W21x73, 4) W18x50 bent about its weak axis, 5) 8 in. extra strong pipe. Ignore the beam weight. 400 lb/ft 15 kips 15 kips (2) 13'-0" 5'-0" 6'-0" |...
Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves...
Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves (e.g., parabola, 3 degree polynomial). 8k 1.5 k/ft 40 k-ft 10 ft- 30 ft
1. (60 points) Draw axial, shear, and bending moment diagrams for the frame shown below. Draw...
1. (60 points) Draw axial, shear, and bending moment diagrams for the frame shown below. Draw one set of P, V, and M diagrams for Column AB, one set for Beam BE, and one set for Column DF. There is a fixed support at A and applied forces and moments as shown below. 500 lb 500 lb 5 k-ft 5 k-ft D 5 k-ft B 10 10' 10' E 500 lb/ft 10' 10' 5k s tiskt 5 k-ft 1k 2....
Plot the shear and moment diagrams for the beam subjected to the two work. forces and...
Plot the shear and moment diagrams for the beam subjected to the two work. forces and combination of distributed loads. After you have the plots, answer the questions as a check on your 3 kN 3 kN 2 kN/m 12 m 4 m 610 N/m 17 m 3 m 3 m4m Questions When x-1.9 ft, V- N-m when x = 6.5 ft, V = N-m When x = 14.0 ft, V when x 19.0 ft, V When x = 20.6...
Show your work and draw the shear and moment diagrams, and specify the maximum and minimum...
Show your work and draw the shear and
moment diagrams, and specify the maximum and minimum bending moment
of each beam.
4. am of this holstis supported by shear and monment diagrams of t 25 ft lb 10 lb/ft 3 ft 005 5 ft 91 00T L0OST 10 ft 2 VImax MImax
\Please help me to do part (c)Part c) Using the shear and moment diagrams created for...
\Please help me to do part (c)Part c) Using the shear and
moment diagrams created for the beam shown in “c” determine the
maximum bending stress created for the largest positive bending
moment and the largest negative bending moment. Consider the beam
to be a W 12 x 79.
Part a) Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves (e.g., parabola, 3rd degree polynomial). 10 k 20 k 20 k 75 kN...
Shear and Bending Moment Diagrams Learning Goal: To determine the reactive forces and moments acting on...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported be...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported beam with a span of 60 feet. Show values of maxima. 2. Using the influence lines in part 1, determine the shear and moment at 15, 25, and 30 feet for a uniformly distributed load of 50 k/ft applied over the length of the beam required to produce the maximum shear and moment at each point. 3. Using...
4) A 100 foot long simply-supported bridge girder supports the unfactored loads shown in the figure. The uniformly distributed dead load, wD, includes the self weight of the girder, and is constant along the full beam length. Concentrated live loads, PL, are applied as shown in the figure. a) Draw factored shear force and factored bending moment diagrams in the spaces provided. Show magnitudes at locations A, B, C, D and E on each diagram.(8) PL = 50k PL-50k WD-2.5...
A simply supported beam as shown in the figure. The beam section is W18x211. The beam must support its own weight and must carry the following loading: Super-imposed distributed dead load = 0.25 kip/ft Distributed live load = 1 kip/ft Concentrated dead load = 12 kip The beam span L = 26 ft and the distance of the concentrated load from the right support a=6 ft. Consider analy- sis of beam subjected to load combination 1.2 dead + 1.6 live....
Problems 1.-5. Draw complete shear and moment diagrams resulting from the loads indicated for the beams shown. Show ordinates at key points and indicate the magnitude of shear and moment at these points. Calculate the maximum bending stress due to the applied loads. Beam sections are 1) L6x6x1, 2) C10x30, 3) W21x73, 4) W18x50 bent about its weak axis, 5) 8 in. extra strong pipe. Ignore the beam weight. 400 lb/ft 15 kips 15 kips (2) 13'-0" 5'-0" 6'-0" |...
Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves (e.g., parabola, 3 degree polynomial). 8k 1.5 k/ft 40 k-ft 10 ft- 30 ft
1. (60 points) Draw axial, shear, and bending moment diagrams for the frame shown below. Draw one set of P, V, and M diagrams for Column AB, one set for Beam BE, and one set for Column DF. There is a fixed support at A and applied forces and moments as shown below. 500 lb 500 lb 5 k-ft 5 k-ft D 5 k-ft B 10 10' 10' E 500 lb/ft 10' 10' 5k s tiskt 5 k-ft 1k 2....
Plot the shear and moment diagrams for the beam subjected to the two work. forces and combination of distributed loads. After you have the plots, answer the questions as a check on your 3 kN 3 kN 2 kN/m 12 m 4 m 610 N/m 17 m 3 m 3 m4m Questions When x-1.9 ft, V- N-m when x = 6.5 ft, V = N-m When x = 14.0 ft, V when x 19.0 ft, V When x = 20.6...
Show your work and draw the shear and
moment diagrams, and specify the maximum and minimum bending moment
of each beam.
4. am of this holstis supported by shear and monment diagrams of t 25 ft lb 10 lb/ft 3 ft 005 5 ft 91 00T L0OST 10 ft 2 VImax MImax
\Please help me to do part (c)Part c) Using the shear and
moment diagrams created for the beam shown in “c” determine the
maximum bending stress created for the largest positive bending
moment and the largest negative bending moment. Consider the beam
to be a W 12 x 79.
Part a) Draw the shear and bending moment diagrams. Clearly show the values, slopes, and degree of curves (e.g., parabola, 3rd degree polynomial). 10 k 20 k 20 k 75 kN...
Shear and Bending Moment Diagrams
Learning Goal:
To determine the reactive forces and moments acting on a beam;
express the shear and bending moment as functions of their
positions along the beam; and construct shear and bending moment
diagrams.
The cantilever beam shown is subjected to a moment at A
and a distributed load that acts over segment BC, and is
fixed at C. Determine the reactions at the support located
at C. Then write expressions for shear and bending...
1. Draw influence lines for shear and moment at 15, 25, and 30 feet from the left support for a simply supported beam with a span of 60 feet. Show values of maxima. 2. Using the influence lines in part 1, determine the shear and moment at 15, 25, and 30 feet for a uniformly distributed load of 50 k/ft applied over the length of the beam required to produce the maximum shear and moment at each point. 3. Using...
