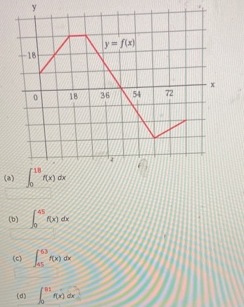

The graph off is shown. Evaluate each integral by interpreting it in terms of areas.

Question

Question

math calculus

Answer 1

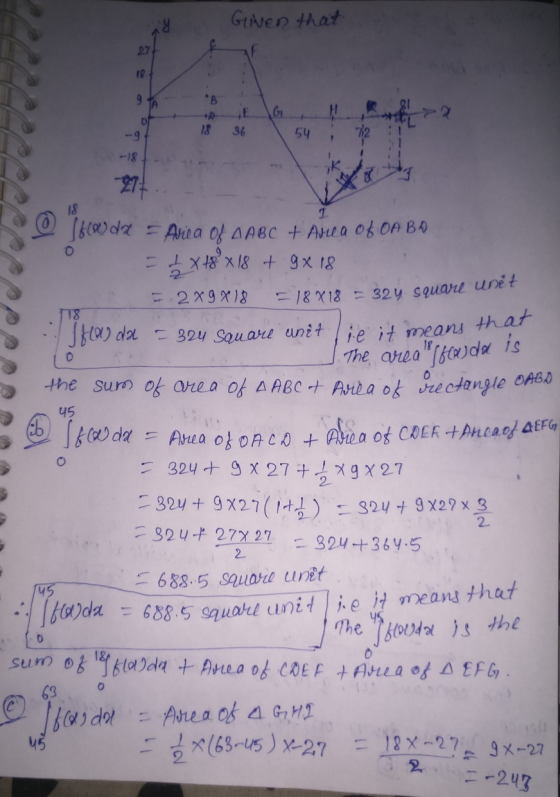

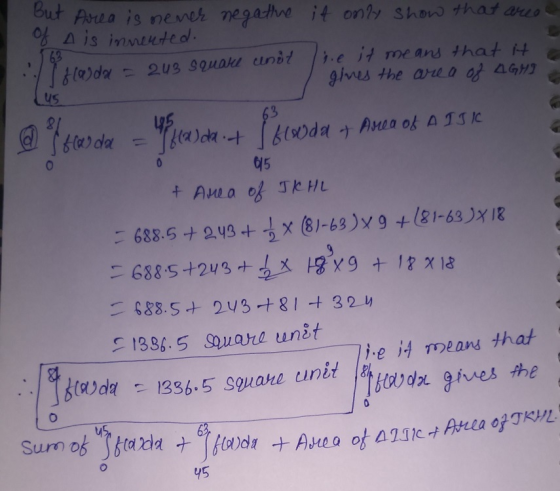

Answer #1

Answer 2
