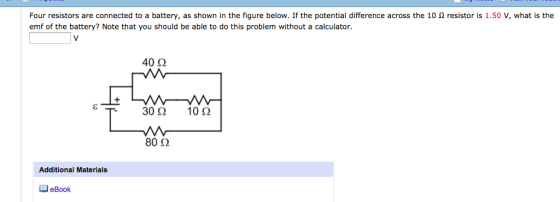

can someone please explain this in detail. thanks!Four resistors are connected to a battery, as shown in the figure below. If the potential difference across the 10 Ω resistor is 1.50 V, what is the emf of the battery? Note that you should be able to do this problem without a calculator. 40Ω 80 Ω Additional Materials eBook

science   physics
0 0
Add a comment Improve this question Transcribed image text
Next > < Previous
Sort answers by oldest

Homework Answers

Answer #1

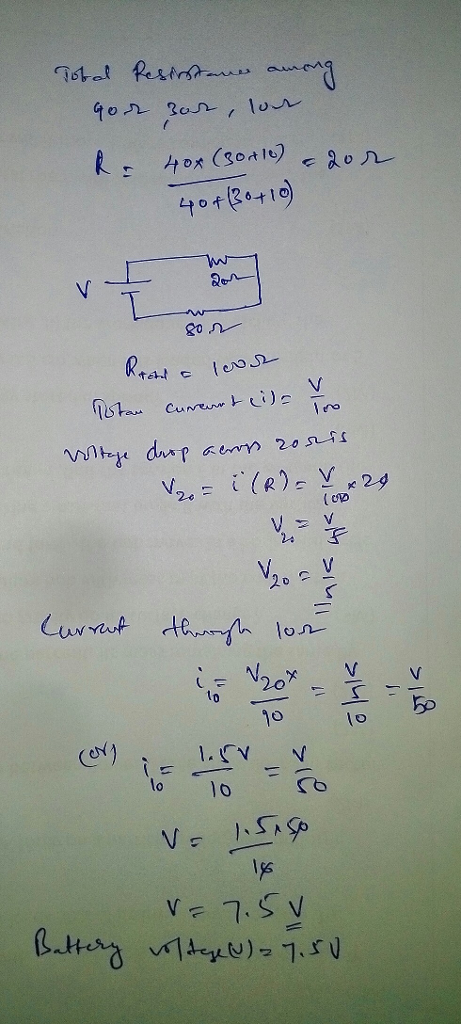

(op 1o 1o 1o lo lo
