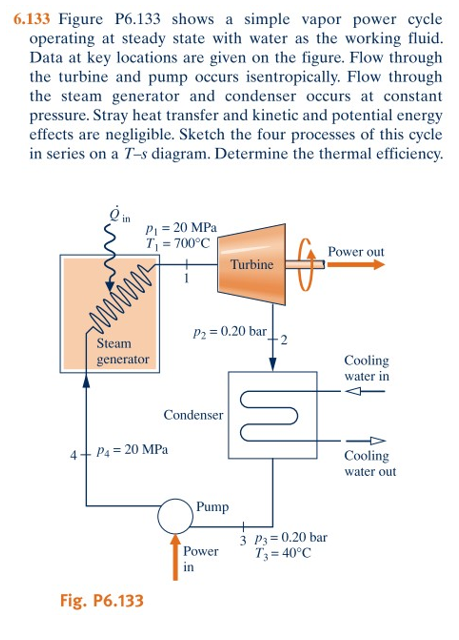

6.133 Figure P6.133 shows a simple vapor power cycle operating at steady state with water as...
Steady-state operating data for a simple steam power plant are provided in the figure 7. below....
Steady-state operating data for a simple steam power plant are provided in the figure 7. below. Heat transfer and kinetic and potential energy effects can be ignored. Determine the (a) thermal efficiency and (b) the mass flow rate of the cooling water, in kg per kg of steam flowing Qie/m=3400 kJ/kg P1 4 MPa T 600°C Power out Turbine P2=0.2 bar 2 Steam saturated Cooling water in at T's 15°C generator vapor Condenser Cooling water out at T6 35°C Pump...
Steady-state operating data for a simple steam power plant are provided in figure. Kinetic and potential...
Steady-state operating data for a simple steam power plant are provided in figure. Kinetic and potential energy effects can be ignored. Determine the a) the mass flow rate of the steam, (10 pts.) b) lin, (5 pts.) c) the mass flow rate of the cooling water, (5 pts.) d) thermal efficiency, (5 pts.) e) What happens to the thermal efficiency if we increase the turbine inlet pressure while keeping the inlet temperature (T1) constant? Explain it clearly. (10 pts.) PI...
Steady-state operating data for a simple steam power plant are provided in figure. Kinetic and potential...
Steady-state operating data for a simple steam power plant are provided in figure. Kinetic and potential energy effects can be ignored. Determine the a) the mass flow rate of the steam, (10 pts.) b) Qin . (5 pts.) c) the mass flow rate of the cooling water, (5 pts.) d) thermal efficiency, (5 pts.) e) What happens to the thermal efficiency if we increase the turbine inlet pressure while keeping the inlet temperature (TI) constant? Explain it clearly. (10 pts.)...
A power plant operates on a superheat vapor power cycle with water is the working fluid....
A power plant operates on a superheat vapor power cycle with water is the working fluid. Superheated steam enters the turbine at 80 bar, 480° C, and expands to 0.08 bar to the condenser and becomes saturated liquid enters the feed water pump. The net cycle work output is 100 MW. Assume isentropic process exists at the turbine and the pump. (a) Sketch the schematic and T-S diagram of the power cycle (5%), (b) determine the heat input to the...
C. (35%) A power plant operates on a superheat vapor power cycle with water is the...
C. (35%) A power plant operates on a superheat vapor power cycle with water is the working fluid. Superheated steam enters the turbine at 80 bar, 480° C, and expands to 0.08 bar to the condenser and becomes saturated liquid enters the feed water pump. The net cycle work output is 100 MW. Assume isentropic process exists at the turbine and the pump. (a) Sketch the schematic and T-S diagram of the power cycle (5%), (b) determine the heat input...
1. Steam is the working fluid in the (less than ideal) Ranking vapor power cycle with...
1. Steam is the working fluid in the (less than ideal) Ranking vapor power cycle with superheat, shown in the figure with the operational data. Boiler Turbine i W 2 T2 = 560°C Ts=38°C 20 MP2 Cooling water Condenser out Pump Ts = 20°C mew = 70.7 kg's Р x h s (kJ/kg.K) (kJ/kg) 338.14 State TCI 20.1 MPa 560 20 MPa 0.5 bar 0.4 bar 2442.3 0 a. Identify states 1 through 4 on the power plant schematic. b....
Superheated steam at 20 MPa, 560oC enters the turbine of a vapor power plant. The pressure...
Superheated steam at 20 MPa, 560oC enters the turbine of a vapor power plant. The pressure at the exit of the turbine is 0.7 bar, and liquid leaves the condenser at 0.4 bar at 75oC. The pressure is increased to 20.1 MPa across the pump and the specific enthalpy is 338.14 kJ/kg. The turbine isentropic efficiency is 81%. Cooling water enters the condenser at 20oC with a mass flow rate of 70.7 kg/s and exits the condenser at 38oC. For...
8.21 Figure P8.21 provides steady-state operating data for a vapor power plant using water as the...
8.21 Figure P8.21 provides steady-state operating data for a vapor power plant using water as the working fluid. The mass flow rate of water is 15 kg/s. The turbine and pump operate adiabatically but not reversibly. Determine di (b) AC 8 o anidhu od o mpo? (b) the rates of heat transfer Qin and Qout, each in kW. (a) the thermal efficiency Steam generator Turbine m= 15 kg/s 10 out 5 PROBE N Condenser Pump Analyzing Bank 3 is the...
Tutorial Questions 1 1. Water is the working fluid in an ideal Rankine cycle. The condenser...
Tutorial Questions 1.1. Water is the working fluid in an ideal Rankine cycle. The condenser pressure is kPa, and saturated vapor enters the turbine at 10 MPa. Determine the heat transfer rates, in kJ per kg of steam flowing, for the working fluid passing through the boiler and condenser and calculate the thermal efficiency.2. Water is the working fluid in an ideal Rankine cycle. Saturated vapor enters the turbine at 16 MPa, and the condenser pressure is 8 kPa ....
Steady-state operating data for a simple steam power plant are provided in the figure 7. below. Heat transfer and kinetic and potential energy effects can be ignored. Determine the (a) thermal efficiency and (b) the mass flow rate of the cooling water, in kg per kg of steam flowing Qie/m=3400 kJ/kg P1 4 MPa T 600°C Power out Turbine P2=0.2 bar 2 Steam saturated Cooling water in at T's 15°C generator vapor Condenser Cooling water out at T6 35°C Pump...
Steady-state operating data for a simple steam power plant are provided in figure. Kinetic and potential energy effects can be ignored. Determine the a) the mass flow rate of the steam, (10 pts.) b) lin, (5 pts.) c) the mass flow rate of the cooling water, (5 pts.) d) thermal efficiency, (5 pts.) e) What happens to the thermal efficiency if we increase the turbine inlet pressure while keeping the inlet temperature (T1) constant? Explain it clearly. (10 pts.) PI...
Steady-state operating data for a simple steam power plant are provided in figure. Kinetic and potential energy effects can be ignored. Determine the a) the mass flow rate of the steam, (10 pts.) b) Qin . (5 pts.) c) the mass flow rate of the cooling water, (5 pts.) d) thermal efficiency, (5 pts.) e) What happens to the thermal efficiency if we increase the turbine inlet pressure while keeping the inlet temperature (TI) constant? Explain it clearly. (10 pts.)...
A power plant operates on a superheat vapor power cycle with water is the working fluid. Superheated steam enters the turbine at 80 bar, 480° C, and expands to 0.08 bar to the condenser and becomes saturated liquid enters the feed water pump. The net cycle work output is 100 MW. Assume isentropic process exists at the turbine and the pump. (a) Sketch the schematic and T-S diagram of the power cycle (5%), (b) determine the heat input to the...
C. (35%) A power plant operates on a superheat vapor power cycle with water is the working fluid. Superheated steam enters the turbine at 80 bar, 480° C, and expands to 0.08 bar to the condenser and becomes saturated liquid enters the feed water pump. The net cycle work output is 100 MW. Assume isentropic process exists at the turbine and the pump. (a) Sketch the schematic and T-S diagram of the power cycle (5%), (b) determine the heat input...
1. Steam is the working fluid in the (less than ideal) Ranking vapor power cycle with superheat, shown in the figure with the operational data. Boiler Turbine i W 2 T2 = 560°C Ts=38°C 20 MP2 Cooling water Condenser out Pump Ts = 20°C mew = 70.7 kg's Р x h s (kJ/kg.K) (kJ/kg) 338.14 State TCI 20.1 MPa 560 20 MPa 0.5 bar 0.4 bar 2442.3 0 a. Identify states 1 through 4 on the power plant schematic. b....
8.21 Figure P8.21 provides steady-state operating data for a vapor power plant using water as the working fluid. The mass flow rate of water is 15 kg/s. The turbine and pump operate adiabatically but not reversibly. Determine di (b) AC 8 o anidhu od o mpo? (b) the rates of heat transfer Qin and Qout, each in kW. (a) the thermal efficiency Steam generator Turbine m= 15 kg/s 10 out 5 PROBE N Condenser Pump Analyzing Bank 3 is the...
