After the DATA IN waveform in the shown figure is complete, what value is stored ....

Question

Question

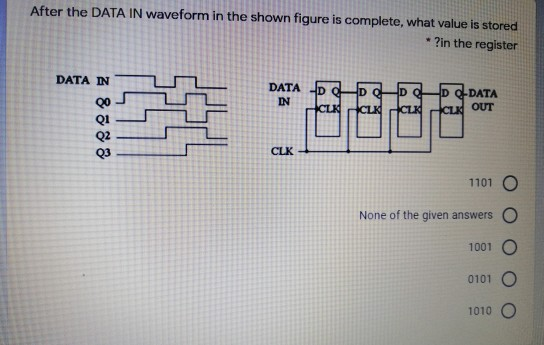

After the DATA IN waveform in the shown figure is complete, what value is stored . ?in the register DATA IN DATA IN G DATA CL

engineering Electrical-Engineering

Answer 1

Answer #1

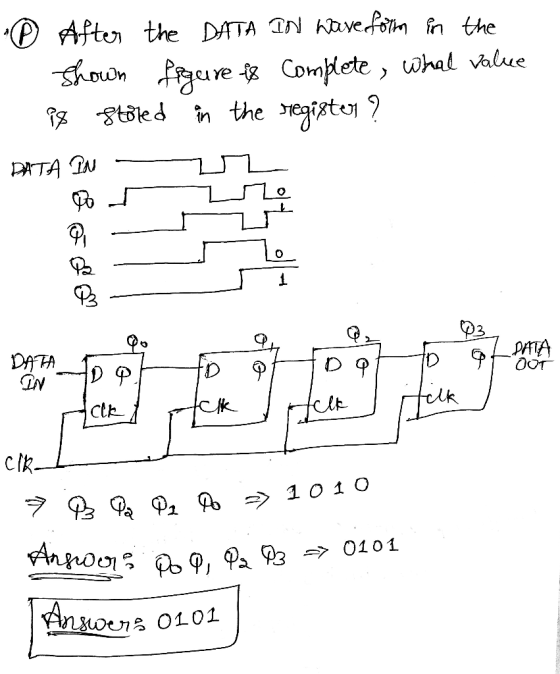

® After the DATA IN Wave form in the Shown figure f8 Complete , what value 98 stoled in the register ? DATA IN DATA DATA OOT

Answer 2

Similar Homework Help Questions

STYBEXdRihadaz InformResponse Assume that the value stored in the register is 00110011. Determine Z when the...

STYBEXdRihadaz InformResponse Assume that the value stored in the register is 00110011. Determine Z when the * ?values of S2-1, S1-O and 50-1 REGISTER X 22 x X S, S, S. O OB OA CLK MOO & up counter CLOCK Either 0 or 1 O 00110011 None of the given answers 1 te ê 19
For the initial register values shown below, what is the value of $t0, $t1 and $t2...

For the initial register values shown below, what is the value of $t0, $t1 and $t2 after executing each instruction in binary system? What is the final value of $t0, $t1 and $t2 in hexadecimal system? $t0 = 0xAAAAAAAA (hex) = 1010 1010 1010 1010 1010 1010 1010 1010 $t1 = 0x87654321 (hex) = 1000 0111 0110 0101 0100 0011 0010 0001 sll $t2, $t0, 4 or $t2, $t2, $t1 nor $t2, $t2, $t1 slt $t0, $t2, $t1 sltu $t0,...
I need the following problems worked out (show work). Thee answers are provided, I just need...

I need the following problems worked out (show work). Thee answers are provided, I just need the work explained briefly for each one. 4 - What is the decimal representation of each of the following unsigned binary integers? a. 00110101 (53) b. 10010110 (150) c. 11001100 (204) 6 - What is the sum of each pair of binary numbers? a. 10101111 + 11011011 (110001010) b. 10010111 + 11111111 (110010110) c. 01110101 + 10101100 (100100001) 8 - How many bits are...

Question 4 25 pts Determine the RMS value of the waveform shown in the figure below....

Question 4 25 pts Determine the RMS value of the waveform shown in the figure below. In the figure, the peak voltage is 4V. v(t) 5 10 15 20 25 30 35 O
Use the Quartus Prime Text Editor to implement a structural model of the 4-bit data register show...

Use the Quartus Prime Text Editor to implement a structural model of the 4-bit data register shown above in a file named reg_4bit.sv. Specify the 4-bit data register’s module according to the interface specification given in the table below. Port Mode Data Type Size Description RST in logic 1-bit Active high asynchronous reset CLK in logic 1-bit Synchronizing clock signal EN in logic 1-bit Synchronous clock enable D in logic vector 4-bits Synchronous data input Q out logic vector 4-bits...
2. A 4-bit parallel in/serial out shift register has SHIFT/LOAD' and CLK inputs as shown in...

2. A 4-bit parallel in/serial out shift register has SHIFT/LOAD' and CLK inputs as shown in the figure below. What is the output Q3 at the two times('A' followed by 'B') indicated by the dashed lines in the figure below if the parallel data inputs are DO-1, D1-0, D2-1, and D3-1? D3 SHIFT/L CLK SHIFT /LOAD Ο A. A-0,9:0 B. A:0, B-1 D.A-1, B-1

What is the energy stored in the inductor shown in the figure after the switch has...

What is the energy stored in the inductor shown in the figure after the switch has been closed for a very long time? Take V = 5 V, R = 500 Ω and L = 20 mH.
Assuming the square 2D memory organization shown in Figure 5.7 below, what are the dimensions of...

Assuming the square 2D memory organization shown in Figure 5.7 below, what are the dimensions of a memory containing 64 (26) bytes of storage? How large would the MAR be? How many bits are sent to the row and column decoders? How many output lines would these decoders have? FIGURE 5.7 Column Column Column Column 2 (10) Address (00) 0001 0010 0011 Row O (00) 0100 0110 0111 Row 1 (01) Row selection lines 1000 1001 1010 1011 Row 2...
a. For the waveform shown in figures, determine (i) Peak value (ii) the peak-to-peak voltage the...

a. For the waveform shown in figures, determine (i) Peak value (ii) the peak-to-peak voltage the time period (iv) the frequency (v) The angular frequency. (Volls) 12V M 30 18 42 (ms) - 12V Figure 5 b. What is the frequency of the waveform shown in figure 6? m. -200 ms Figure 6 C. The figure 7 shows the variation of charge across the voltage of two capacitors namely A and B. Which of the two capacitors has higher value...

Refer to Figure 8-5. What occurs during the interval labeled 'X' on the timing diagram? Data...

Refer to Figure 8-5. What occurs during the interval labeled 'X' on the timing diagram? Data is shifted left through the register. Serial data is entered into the register. Data is shifted right through the register. Parallel data is entered into the register. CLK DODID2 D3 SR SER SL SER SRO 4 CLR SR SER SL SER z-+- VW OUTPUTS UNPUTS SERIAL CLEARMODECL T RIGHTDO pi D2 D3 PARALLEL QE XXXXQAD QBO ed H Cr H H QBn xxxQA0 H...
