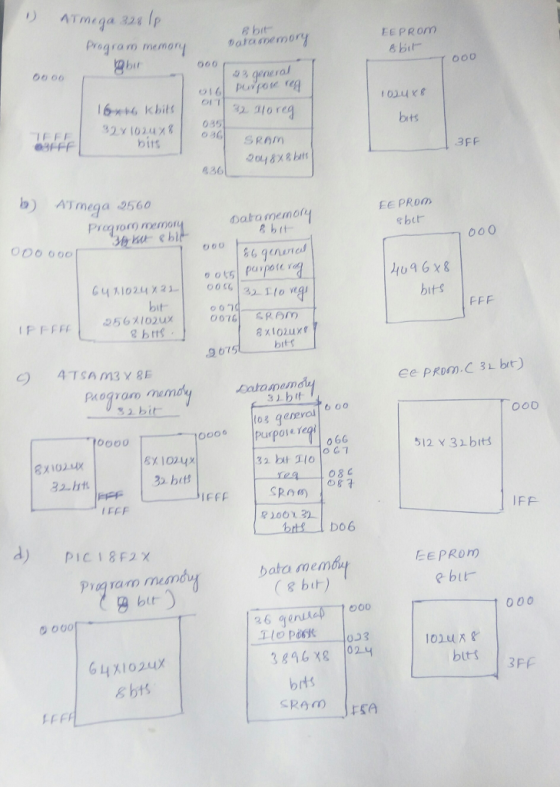

In each following microcontroller sketch the memory map in a diagram, which gives the size, type and layout of the memories that are available in the microcontroller. a. ATmega328/P b. ATmega2560 c. PIC18F2X45K50 d. ATSAM3X8E
In each following microcontroller sketch the memory map in a diagram, which gives the size, type...
Consider a swapping system in which the memory map consists of the following whole sizes in memory order: 10K, 4K, 20K, 18K, 7K, 9K, 12K, and 15K. Draw the allocation sequence for the successive memory size requests of: (i) 12K, (ii) 10K, (iii) 9K using the following memory allocation requests: (a) First Fit (b) Best Fit (c) Worst Fit
9. Sketch the Energy Band Diagram for an (a) n-type material and (b) p-type material and identify the majority and minority carriers for each band diagram. Label ALL energy bands.
Question 9 Which of the following statements is true about memory system? Put the answer in the box. A. Cache memories are usually built by SRAMs, which have higher density and faster access speed than DRAM-based main memories. B. Secondary storages such as hard disk drive and solid-state drive are typically volatile memories. C. Compared to the associative cache mapping function, direct mapping function has more flexibility. D. Due to locality of reference, the basic transfer unit between cache and...
Consider a RAM system of size 64 Kbytes. For each of the following cases show how this RAM can be built. Draw a MEMORY MAP showing which chips are used for which range of addresses. Draw a NEAT drawing (employ the use of drawing aids such as rulers, templates, etc.) showing how the chips are connected to the address decoder and the CPU address, data, and control lines: (a) Use memory chips each having 8K x 8 bits. (b) Use...
apter 7 Reading Question 3 Part A Which list correctly gives atoms in order of increasing size? View Available Hint(s) O P < Cl< Br< Xe Cl <P < Xe < Br - Xe < B <P<CI - Cl<P < B < Xe Submit Provide Feedback
. An embedded microcontroller with a 20‐bit address bus
implements the following four blocks of memory. Draw an address
decoding table to satisfy the following memory map and design an
address decoder to select each of these devices.
a. RAM1 0 0000 ‐ 3 FFFF
b. RAM2 4 0000 ‐ 7 FFFF
c. ROM1 E 0000 ‐ E 7FFF
d. ROM2 F 0000 ‐ F FFFF
I know that the answer is:
I was wondering if someone could explain how...
sketch a PE diagram to represent each of the following situations: a) an extremely rapid, exothermic reaction b) an extremely rapid, endothermic reaction c) a slow but exothermic reaction d) a slow but endothermic reaction
Question 1: Pointers You are given the following C code and memory diagram. The “contents” column of the memory diagram shows the value of the variable. Update the “contents” column of the memory diagram for each assignment in main(). long *pt; long data; long buffer[4]; void main(void){ pt = &buffer[1]; *pt = 1234; data = *pt; } address contents variable 0x20000000 0x00000000 pt 0x20000004 0x00000000 data 0x20000008 0x00000000 buffer[0] 0x2000000C 0x00000000 buffer[1] 0x20000010 0x00000000 buffer[2] 0x20000014 0x00000000 buffer[3]...
a. Sketch a transistor layout, and Euler path, and a stick diagram for each of the following Boolean functions. You may assume that you have literals and inverted literals available as input to your gates. i. Y=AB + C ii. Y=(AB + C + DE) ii Y - ((A+B+C)(D+E)F) iv. Y- BD+ BC+ABC vi. Y- AB+BC +AC Our process (roughly speaking) is a 0.6μ process meaning the minimum channel length is 0.6μ. The gate oxidethickness is around 135A, and廿io mobility...
In simple linear regression: a. The size of the coefficient for each IV gives you the size of the effect that variable has on the DV. b. The sign of the coefficient gives you the direction of the effect. c. With a single IV, the coefficient tells you how much the DV is expected to increase or decrease when the IV increased by one unit. d. All of the above
