Question

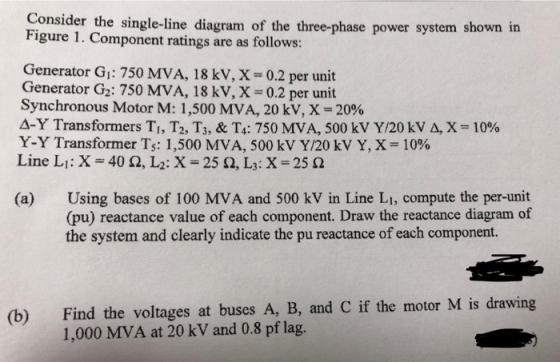

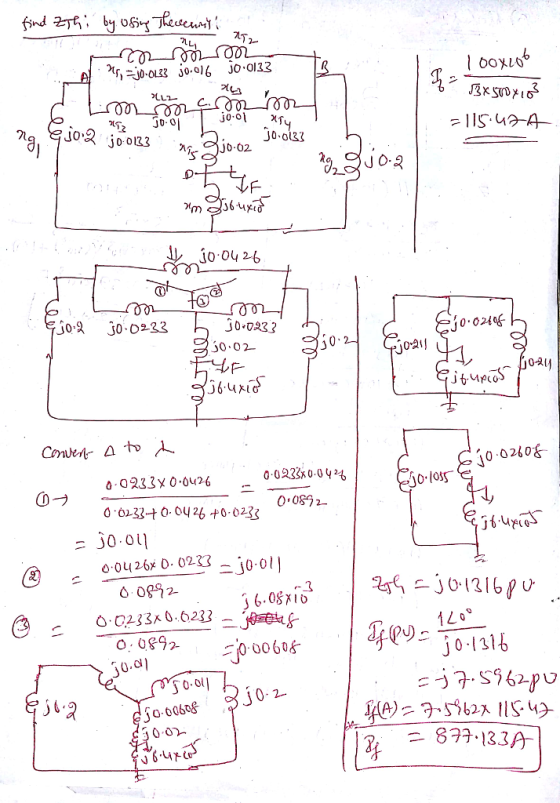

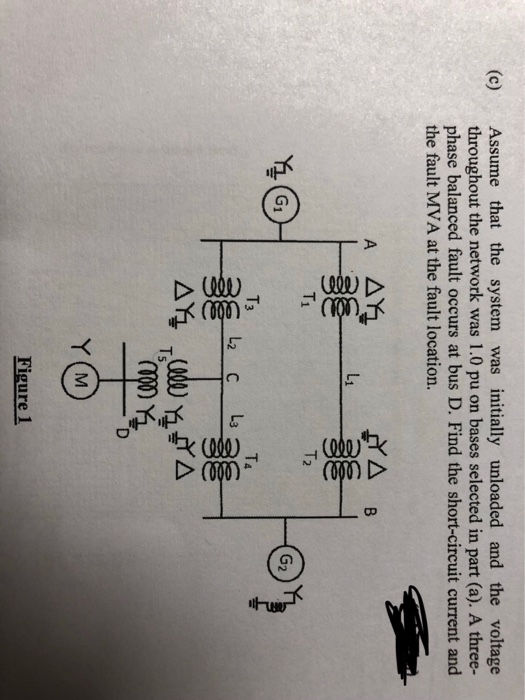

Consider the single-line diagram of the three-phase power system shown in Figure 1. Component ratings are as follows: Generator G1: 750 MVA, 18 kV, X0.2 per unit Generator G2: 750 MVA, 18 kV, X 0.2 per unit Synchronous Motor M: 1,500 MVA, 20 kV, X-20% A-Y Transformers Ti, T2, Ts, & T.: 750 MVA, 500 kV Y/20 kV A, X = 10% Y-Y Transformer Ts 1,500 MVA, 500 kV Y/20 kV Y, X-10% ne L:X (a) Using bases of 100 MVA and 500 kV in Line LI, compute the per-unit (pu) reactance value of each component. Draw the reactance diagram of the system and clearly indicate the pu reactance of each component. Find the voltages at buses A, B, and C if the motor M is drawing 1,000 MVA at 20 kV and 0.8 pf lag. (b)
media%2F313%2F313e06db-608c-448d-bbe7-57
0 0
Add a comment Improve this question Transcribed image text
Know the answer?
Add Answer to:
Consider the single-line diagram of the three-phase power system shown in Figure 1. Component ratings are...
Your Answer:

Post as a guest

Your Name:

What's your source?

Earn Coins

Coins can be redeemed for fabulous gifts.

Not the answer you're looking for? Ask your own homework help question. Our experts will answer your question WITHIN MINUTES for Free.
Similar Homework Help Questions
  • 3) The single-line diagram of a three-phase power system is shown in Fig. 1. Equipment ratings...

    3) The single-line diagram of a three-phase power system is shown in Fig. 1. Equipment ratings are given as follows: G1 1,000 MVA, 15.0 kV, 20.18, o 0.07 pu G2 : 1,000 MVA. 15.0 kV, 攻=エ1 =エ2 = 0.20, ro = 0.10 pu G3 : 500 MVA, 13.8 kV. 1" = 띠 z2 = 0.15, zo 0.05 pu G4 : 750 MVA, 13.8 kV. ェd =ェ1 = 0.30, T2 = 0.40 ro = 0.10 pu Ti : 1,000 MVA. 15.0Δ/765Y...

  • G 3. Draw the reactance diagram for the power system shown in Figure.3. The ratings of...

    G 3. Draw the reactance diagram for the power system shown in Figure.3. The ratings of generator, motor and transformers are given below. Neglect resistance and use a base of 50 MVA, 138 kV in the 40 Ohms Line :20MVA, 18 kV, X = 20% :20MVA, 18 kV, X = 20% Synchronous Motor: 30MVA 13.8Kv X = 20% 3-phase, Star-Star Transformer: 20 MVA, 138/20 kV, X= 10% 3-phase, Star-Delta Transformer: 20 MVA, 138/20 kV, X = 10% G2 y j4012...

  • 3.13 A single-line diagram of a three-phase power system is shown in Fig. 3.51. The ratings...

    3.13 A single-line diagram of a three-phase power system is shown in Fig. 3.51. The ratings of the equipment are shown below Generator G: 100 MVA, 11 kV, Xi -X2-0.20 pu, Xo -0.05 pu Generator G2 : 100 MVA, 20 kV, Xi=X2=0.25 pu, Xo=0.03 pu, X,,-0.05 pu Transformer T: 100 MVA, 11/66 kV, Xi -X2-Xo 0.06 pu Transformer T2: 100 MVA, 11/66 kV, Xi-X2 = Xo 0.06 pu Line: 100 MVA, X,-X2 = 0.15 pu, Xo = 0.65 pu A...

  • A single line diagram of a power system is shown in Fig. 2. The system data with equipment ratings and assumed sequence reactances are given the following table. The neutrals of the generator and A-Y...

    A single line diagram of a power system is shown in Fig. 2. The system data with equipment ratings and assumed sequence reactances are given the following table. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance Xn 0.05 per unit on the motor base. Assume that Pre-fault voltage is takin as VF-1.0 ,0° per unit and Pre- fault load current and Δ-Y transformer phase shift are neglected In the...

  • The three-phase power and line-line ratings of the electric power system shown in Figure 2 are...

    The three-phase power and line-line ratings of the electric power system shown in Figure 2 are given below T2 2 Line Vm G M 1 BA Figure 2 One-line diagram for problem 2 G: Ti: T2: Line: M: 60 MVA 50 MVA 50 MVA 20 kV 20/200 kV 200/20 kV 200 kV 18 kV X=9% X=10% X=10% Z=120+j2002 X=8% 43.2 MVA (a) Draw an impedance diagram showing all impedances in per unit on a 100-MVA base. Choose 20 kV as...

  • 2 - The three-phase power and line-line ratings of the electric power system shown in Figure...

    2 - The three-phase power and line-line ratings of the electric power system shown in Figure 2 are given below. Ti T2 VA Line 2 G M Vm BE BE Figure 2 One-line diagram for problem 2 G: T: T2: Line: M: 60 MVA 50 MVA 50 MVA 20 kV 20/200 kV 200/20 kV 200 kV 18 kV X=9% X=10% X=10% Z=120+j2002 X=8% 43.2 MVA (a) Draw an impedance diagram showing all impedances in per unit on a 100-MVA base....

  • The three-phase power and line-line ratings of the electric power system shown in Figure 2 are...

    The three-phase power and line-line ratings of the electric power system shown in Figure 2 are given below. T1 T2 V. 1 2 vm 9 Line G M Figure 2 One-line diagram for problem 2 G: T1: 60 MVA 50 MVA 50 MVA T2: Line: M: 20 kV 20/200 kV 200/20 kV 200 kV 18 kV X=9% X=10% X=10% Z=120+j200 12 X=8% 43.2 MVA (a) Draw an impedance diagram showing all impedances in per unit on a 100-MVA base. Choose...

  • the single-line diagram of a three-phase power system is shown in figure 9.17. equipment ratings are...

    the single-line diagram of a three-phase power system is shown in figure 9.17. equipment ratings are given as follows: The inductor connected to Generator 3 neutral has a reactance of 0.05 per unit using generator 3 ratings as a base. Draw the zero-, positive-, and negative-sequence reactance diagrams using a 1000-MVA, 765-kV base in the zone of line 1-2. Neglect the Δ—Y. transformer phase shifts.

  • QUESTION 4. A single-line diagram of a power system is shown in Figure Q3 below, where...

    QUESTION 4. A single-line diagram of a power system is shown in Figure Q3 below, where negative and zero-sequence reactances are also given. The neutrals of the generator and A-Y transformers are solidly grounded. The motor neutral is grounded through a reactance X.=0.05 per unit on the motor base. Prefault voltage is VF1.05<Oº per unit whereas prefault load current is zero. Take A-Y transformer phase shifts into consideration. M Line tool X, - X2 - 200 100 MVA X =...

  • QUESTION 5 a) Define the Per Unit system and list three (3) main reasons of using Per Unit system...

    Per unit calculation QUESTION 5 a) Define the Per Unit system and list three (3) main reasons of using Per Unit systemm. (5 marks) b) A three-bus power with two generator system is shown in figure Q2 (b). The 3-phase power and line-line voltage ratings are given below Ti T2 J40 2 Gi G2 j25 Ω 25 Ω Ty Figure Q2 (b) GI: 750 MVA, 18 kV, X 7% G2: 750 MVA, 18 kV, X-15% Motor: 1500 MVA, 20 kV,...
